Product Specification Sheet
spectrometer-prism-optical-spectrum-analysis
Model Number: MTO-43

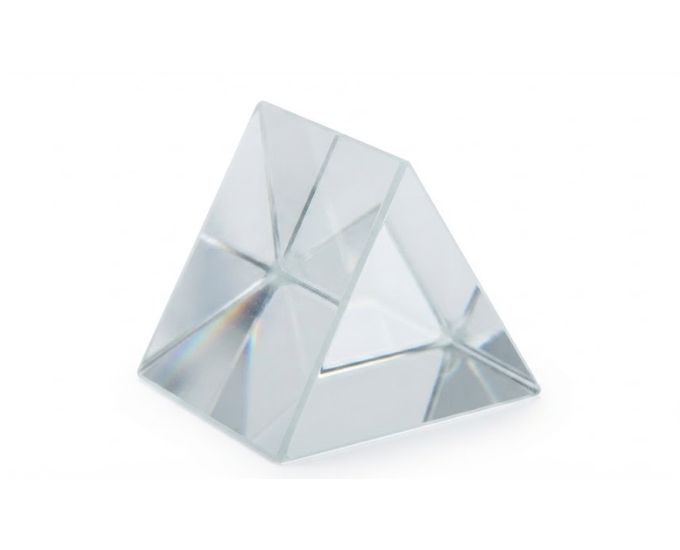

The Spectrometer Prism is a precision optical component used with compatible spectrometers for experiments involving refraction, dispersion, refractive index, and spectral analysis. Micro Technologies supplies equilateral prisms with optically worked working faces to provide clear interaction with incident light. Three glass options are available: borosilicate crown glass with a refractive index of approximately 1.510, hard crown glass with a refractive index ranging from approximately 1.519 to 1.523, and dense flint glass with a refractive index ranging from approximately 1.620 to 1.623. Each material is available in 25 × 25 mm, 32 × 32 mm, and 38 × 38 mm length-and-face configurations, allowing laboratories to select a prism according to optical and dimensional requirements.
Product Specification
The Spectrometer Prism is an equilateral optical prism manufactured for use in spectrometer arrangements and other laboratory experiments where controlled refraction and dispersion of light are required. Its working faces are optically finished to provide suitable surfaces for the entry and exit of light during precision optical observations.
When a light beam passes through the prism, it is refracted at the glass-air boundaries. Because the refractive index of optical glass varies with wavelength, different spectral components are deviated by different amounts. This property makes the Spectrometer Prism useful for investigating dispersion, minimum deviation, refractive index, and the spectral characteristics of suitable light sources.
Micro Technologies supplies the Spectrometer Prism in three optical glass categories to accommodate different experimental requirements. The borosilicate crown glass configuration has a nominal refractive index of approximately 1.510 and provides a practical option for general spectrometer work.
Hard crown glass variants offer a refractive index of approximately 1.519 to 1.523. This material provides a slightly higher optical density and can be selected where the experimental arrangement requires the corresponding refractive characteristics.
For applications requiring considerably greater optical density, dense flint glass prisms are available with a refractive index of approximately 1.620 to 1.623. The higher refractive index produces different deviation and dispersion characteristics compared with crown glass, making it useful for comparative optical investigations.
All three material categories are available in nominal length × face sizes of 25 × 25 mm, 32 × 32 mm, and 38 × 38 mm. This range allows selection according to spectrometer dimensions, beam size, and laboratory requirements.
With multiple glass materials, optically worked surfaces, and three practical size options, the Spectrometer Prism provides a versatile optical component for spectrometry, spectroscopy, refraction, and light-dispersion applications.
Features
- Equilateral optical prism configuration
- Optically worked working faces
- Three optical glass material options
- Borosilicate crown glass available
- Hard crown glass available
- Dense flint glass available
- Refractive index options from approx. 1.510 to 1.623
- Three standard dimensional configurations
- Suitable for compatible laboratory spectrometers
- Precision-finished optical surfaces for repeated laboratory use
Benefits
- Multiple refractive indices support comparative optical experiments
- Three sizes provide flexibility for different spectrometer setups
- Optical working of faces supports clear ray transmission
- Suitable for both refraction and dispersion investigations
- Different glass types broaden experimental capabilities
- Durable optical glass provides long-term laboratory value
- Multiple configurations simplify institutional procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Spectrometer Prism |
| Internal Model Series | MT-30752 / MT-30755 / MT-30756 |
| Product Type | Equilateral Optical Prism |
| Prism Geometry | Equilateral |
| Working Faces | Optically worked |
| Material Options | Borosilicate Crown, Hard Crown & Dense Flint Glass |
| Available Sizes | 25 × 25, 32 × 32 & 38 × 38 mm |
| Borosilicate Crown RI | Approx. 1.510 |
| Hard Crown RI | Approx. 1.519–1.523 |
| Dense Flint RI | Approx. 1.620–1.623 |
| Accuracy / Tolerance | Precision laboratory optical finish |
| Calibration Standard | Refractive index verification as specified |
| Stopper Type | Not applicable |
| Color | Clear optical glass |
| Usage / Application | Spectrometry, refraction, dispersion and spectrum analysis |
| Compliance Standard | Laboratory-grade optical construction |
Available Variants
Borosilicate Crown Glass – RI Approx. 1.510
- MT-30752/1 – 25 × 25 mm
- MT-30752/2 – 32 × 32 mm
- MT-30752/3 – 38 × 38 mm
Hard Crown Glass – RI Approx. 1.519–1.523
- MT-30755/1 – 25 × 25 mm
- MT-30755/2 – 32 × 32 mm
- MT-30755/3 – 38 × 38 mm
Dense Flint Glass – RI Approx. 1.620–1.623
- MT-30756/1 – 25 × 25 mm
- MT-30756/2 – 32 × 32 mm
- MT-30756/3 – 38 × 38 mm
SKU System
- MT-SP-BC-2525 – Borosilicate Crown, 25 × 25 mm
- MT-SP-BC-3232 – Borosilicate Crown, 32 × 32 mm
- MT-SP-BC-3838 – Borosilicate Crown, 38 × 38 mm
- MT-SP-HC-2525 – Hard Crown, 25 × 25 mm
- MT-SP-HC-3232 – Hard Crown, 32 × 32 mm
- MT-SP-HC-3838 – Hard Crown, 38 × 38 mm
- MT-SP-DF-2525 – Dense Flint, 25 × 25 mm
- MT-SP-DF-3232 – Dense Flint, 32 × 32 mm
- MT-SP-DF-3838 – Dense Flint, 38 × 38 mm
FAQs
What is a Spectrometer Prism used for?
A Spectrometer Prism is used with compatible optical spectrometers to investigate refraction, dispersion, minimum deviation, and refractive index. It can also be used for spectral analysis of suitable light sources.
Which glass materials are available?
The prism is available in borosilicate crown glass, hard crown glass, and dense flint glass. Each material provides different refractive characteristics.
What is the refractive index of borosilicate crown glass?
The borosilicate crown glass configuration has a refractive index of approximately 1.510, making it suitable for general laboratory spectrometer applications.
What is the refractive index of hard crown glass?
Hard crown glass variants have an approximate refractive index range of 1.519 to 1.523. Exact specifications should be selected according to the required optical experiment.
What is the refractive index of dense flint glass?
Dense flint glass variants provide an approximate refractive index range of 1.620 to 1.623, offering higher optical density than the crown glass configurations.
Which Spectrometer Prism sizes are available?
Standard length × face dimensions include 25 × 25 mm, 32 × 32 mm, and 38 × 38 mm. All three sizes are available across the listed glass categories.
Are the prism surfaces optically finished?
Yes. The working faces are optically worked to provide suitable surfaces for laboratory refraction, dispersion, and spectrometer investigations.
How should a Spectrometer Prism be maintained?
Handle the prism carefully by non-working surfaces whenever possible. Keep optical faces free from fingerprints, dust, scratches, moisture, and abrasive cleaning materials.
Can Spectrometer Prisms be supplied in bulk?
Yes. Bulk quantities can be supplied for optics laboratories, physics laboratories, universities, colleges, research facilities, scientific equipment distributors, and institutional projects.
Can specific glass types and sizes be ordered separately?
Yes. Buyers can specify the required glass material, refractive index category, and prism dimensions when requesting quantities or quotations.
Why Choose Our Products
- Three optical glass material options
- Multiple refractive index ranges
- Optically worked precision surfaces
- Three practical size configurations
- Bulk supply capability for laboratories and distributors
Call to Action
Looking for Spectrometer Prisms in borosilicate crown, hard crown, or dense flint glass? Contact Micro Technologies for competitive quotations, bulk orders, institutional procurement, distributor inquiries, and customized optical component requirements.
