Single Slit Apparatus
Product Specification Sheet

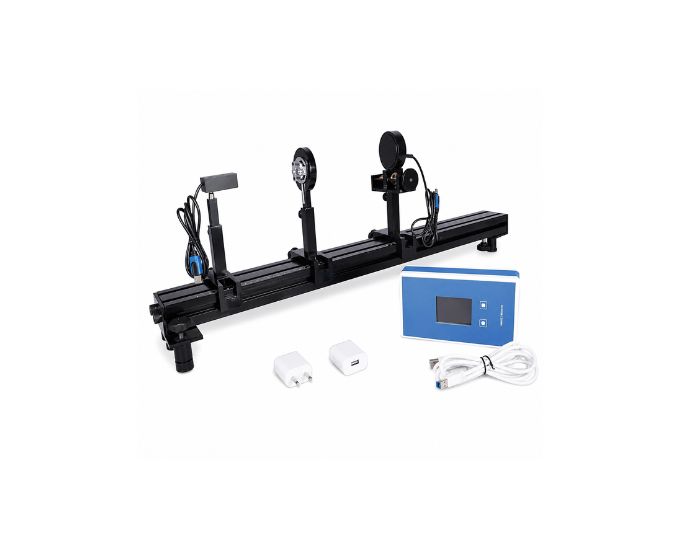

Single Slit Apparatus
Model Number: MT-PH075
The Single Slit Experiment Apparatus from Micro Technologies is designed to demonstrate the diffraction of light through a single slit and determine the wavelength of a laser or the width of a slit using diffraction principles. The apparatus also provides practical verification of the Heisenberg Uncertainty Principle through wave optics experiments. Featuring precision optical alignment, a digital lux meter with a transverse saddle, and a stable optical bench, it is ideal for universities, engineering colleges, research laboratories, and educational institutions.
Product Specification
The Single Slit Experiment Apparatus is a precision laboratory instrument developed to study the diffraction of light when a monochromatic laser beam passes through a narrow slit. The experiment enables students to analyze diffraction patterns, determine the wavelength of a laser using a slit of known width, calculate slit width using a known wavelength, and gain practical insight into the principles of wave optics. It also provides an experimental understanding of the Heisenberg Uncertainty Principle by illustrating the relationship between wave behavior and particle localization.
Manufactured by Micro Technologies, the apparatus incorporates a precision optical bench that maintains accurate alignment of all optical components throughout the experiment. The stable optical arrangement minimizes setup time while ensuring reliable positioning of the laser source, slit assembly, detector, and observation screen. This carefully engineered configuration enhances measurement consistency and produces highly repeatable experimental results.
The Single Slit Experiment Apparatus features a high-precision digital lux meter equipped with a transverse saddle that enables smooth and accurate movement perpendicular to the direction of the laser beam. This arrangement allows precise measurement of light intensity across the diffraction pattern, making it easier to identify the central maximum and higher-order fringes. The integrated measurement system improves experimental accuracy while simplifying data collection during laboratory sessions.
Micro Technologies manufactures this equipment using durable laboratory-grade materials, precision optical components, and reliable mechanical assemblies to ensure dependable long-term performance. The Single Slit Experiment Apparatus is widely used in universities, engineering colleges, research laboratories, scientific training institutes, and educational organizations for wave optics, diffraction analysis, laser experiments, and optics demonstrations. With robust construction, accurate measurements, and user-friendly operation, Micro Technologies provides an ideal solution for modern optics laboratories.
Features
- Precision optical bench for accurate optical alignment
- Single slit diffraction experimental setup
- High-accuracy digital lux meter
- Transverse saddle for precise detector movement
- Smooth light intensity measurement across diffraction pattern
- Stable optical configuration for repeatable experiments
- Durable laboratory-grade construction
- Quick and easy experimental setup
- User-friendly operation
- Suitable for educational and research laboratories
Benefits
- Demonstrates single slit diffraction through practical experimentation
- Enables accurate measurement of laser wavelength and slit width
- Supports practical understanding of the Heisenberg Uncertainty Principle
- Produces reliable and repeatable laboratory results
- Simplifies optical alignment and experimental setup
- Requires minimal maintenance
- Provides excellent long-term value for educational and research institutions
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Single Slit Experiment Apparatus |
| Model Number | MT-PH075 |
| Product Type | Physics Laboratory Equipment |
| Principle | Single Slit Diffraction |
| Light Source | Laser Module |
| Optical System | Precision Optical Bench |
| Detector | Digital Lux Meter |
| Detector Movement | Transverse Saddle |
| Measurement Parameters | Laser Wavelength, Slit Width & Light Intensity |
| Material | Powder-Coated Metal with Optical Components |
| Color | Grey & Black |
| Applications | Physics Laboratories, Universities, Colleges, Research Institutes |
| Compliance Standard | Standard Laboratory Equipment Manufacturing Practices |
Available Variants
- Standard Single Slit Experiment Apparatus
- Advanced Laser Diffraction System
- Educational Demonstration Model
- Research Laboratory Configuration
- Institutional Laboratory Package
SKU System
| Variant | SKU |
|---|---|
| Standard | MT-PH075-ST |
| Advanced | MT-PH075-AD |
| Educational | MT-PH075-ED |
| Research | MT-PH075-RS |
| Institutional | MT-PH075-IN |
FAQs
What is the Single Slit Experiment Apparatus used for?
The apparatus is used to study single slit diffraction, determine the wavelength of a laser, calculate slit width, and demonstrate fundamental concepts of wave optics.
How does this experiment demonstrate the Heisenberg Uncertainty Principle?
The diffraction of light through a narrow slit illustrates the relationship between position and momentum uncertainty, providing a practical demonstration of the Heisenberg Uncertainty Principle.
What is the purpose of the digital lux meter?
The digital lux meter measures the intensity of light across the diffraction pattern, enabling accurate identification of diffraction maxima and minima for precise analysis.
What is the function of the transverse saddle?
The transverse saddle allows smooth and precise movement of the digital lux meter perpendicular to the laser beam, improving the accuracy of light intensity measurements.
Is this apparatus suitable for educational laboratories?
Yes. It is widely used in schools, engineering colleges, universities, research laboratories, and scientific training institutes for optics and wave physics experiments.
How should the apparatus be maintained?
Keep the optical components clean using approved lens-cleaning materials, inspect the laser and detector assemblies periodically, protect the equipment from dust and moisture, and store it in a clean, dry environment for long-term reliable performance.
Why Choose Our Products
- Precision-engineered optics laboratory equipment
- Strict quality inspection before dispatch
- Durable construction for continuous laboratory use
- Accurate and repeatable experimental performance
- Bulk manufacturing capability with responsive technical support
Call to Action
Upgrade your optics laboratory with the Single Slit Experiment Apparatus from Micro Technologies. Micro Technologies supplies premium laboratory equipment for universities, colleges, research institutes, and distributors. Contact Micro Technologies today to request a quotation, discuss customization requirements, or place your bulk institutional order.
