Single Pulley – Bench Mounting
Product Specification Sheet
Single Pulley – Bench Mounting
Model Number: MTM-22

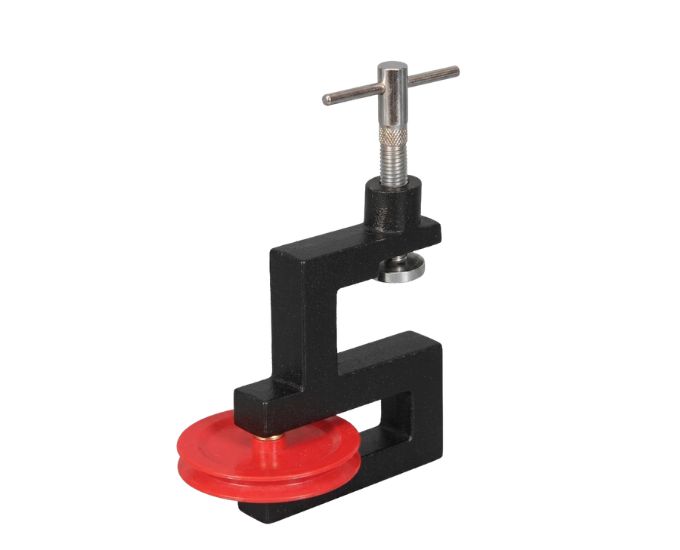

The Single Pulley – Bench Mounting from Micro Technologies is a compact laboratory pulley apparatus featuring a 50 mm diameter aluminium pulley mounted in a metal frame. The integrated clamping arrangement allows the apparatus to be securely attached to a laboratory board or benchtop up to 25 mm thick, making it suitable for force, tension, motion and general mechanics experiments.
Product Specification
The Single Pulley – Bench Mounting from Micro Technologies is designed for physics and mechanics laboratory experiments requiring a simple and conveniently mounted pulley arrangement. Its bench-clamping configuration provides a stable setup for experiments involving suspended loads, force, tension and motion.
The apparatus incorporates a single aluminium pulley approximately 50 mm in diameter. The pulley provides a suitable path for laboratory cord during experimental investigations.
The pulley is mounted within a metal frame, providing structural support and maintaining its position during routine laboratory use.
An integrated clamping arrangement allows the complete apparatus to be attached directly to the edge of a laboratory board or benchtop. This eliminates the need for a separate stand in many basic pulley experiments.
The clamp is designed to accommodate supporting surfaces up to approximately 25 mm thick. This makes the apparatus convenient for use with compatible laboratory benches, boards and experimental platforms.
As a single fixed-pulley arrangement, the apparatus is useful for demonstrating how a pulley can change the direction of an applied force. A cord can be passed over the pulley with an effort applied at one end and a load connected at the other.
The apparatus can also be used to investigate tension in a cord when compatible masses and force-measuring instruments are incorporated into the setup.
For quantitative experiments, known laboratory masses may be suspended from the cord while a compatible Spring Balance measures the applied force or tension.
The bench-mounted configuration is particularly convenient when an experiment requires a cord to travel from a horizontal working surface over the pulley to a vertically suspended load.
The Single Pulley can also support introductory investigations of load, effort and mechanical advantage, providing a practical demonstration of basic simple-machine concepts.
Its compact design enables the pulley to be quickly installed, repositioned and removed from a compatible bench according to laboratory requirements.
The apparatus can complement other mechanics accessories including mass hangers, slotted masses, hook weights, cords and Spring Balances to create complete experimental arrangements.
The straightforward mechanical configuration requires no electrical supply, making it suitable for routine laboratory demonstrations and repeated student practicals.
Manufactured and supplied by Micro Technologies, the Single Pulley – Bench Mounting is suitable for physics laboratories, mechanics laboratories and scientific facilities requiring a compact bench-mounted pulley for mechanics experiments.
Features
- Single pulley configuration
- Bench-mounted design
- Aluminium pulley wheel
- Approx. 50 mm pulley diameter
- Strong metal frame
- Integrated clamping arrangement
- Suitable for boards and benchtops
- Maximum mounting thickness approximately 25 mm
- Compact laboratory design
- Convenient cord guidance
- Suitable for suspended loads
- Useful for force experiments
- Suitable for tension investigations
- Easy installation and removal
- Reusable mechanics laboratory apparatus
Benefits
- Direct bench mounting simplifies experimental setup
- Does not require a separate stand for suitable experiments
- Aluminium pulley provides a practical laboratory configuration
- Metal frame supports stable pulley positioning
- Suitable for demonstrating changes in force direction
- Useful for load and effort experiments
- Supports tension and motion investigations
- Compact size simplifies storage
- Can be quickly repositioned between experiments
- Compatible with various mechanics laboratory accessories
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Single Pulley – Bench Mounting |
| Product Type | Bench-Mounted Laboratory Pulley |
| Pulley Material | Aluminium |
| Pulley Diameter | Approx. 50 mm |
| Number of Pulleys | 1 |
| Frame Material | Metal |
| Mounting | Bench / Board Clamp |
| Maximum Mounting Thickness | Approx. 25 mm |
| Pulley Configuration | Single |
| Primary Application | Force / Tension / Motion Experiments |
| Use | Physics / Mechanics Laboratory |
Applications
- Single pulley experiments
- Fixed pulley demonstrations
- Force experiments
- Tension investigations
- Suspended-load experiments
- Load and effort studies
- Motion experiments
- Mechanical advantage demonstrations
- Direction of force demonstrations
- Spring Balance experiments
- Hanging-mass experiments
- Simple machine experiments
- Mechanics laboratory practicals
- Physics laboratory experiments
Available Variants
Single Pulley Bench Mounting, Bench Mounted Single Pulley, 50 mm Aluminium Pulley, Laboratory Bench Pulley, Fixed Pulley Apparatus, Clamp Mounted Single Pulley, Physics Lab Pulley, Mechanics Laboratory Pulley
SKU System
MT-SPBM-Series
FAQs
What is a Single Pulley – Bench Mounting used for?
It is used for force, tension, motion, load and simple-machine experiments in physics and mechanics laboratories.
What is the pulley made from?
The pulley wheel is manufactured from aluminium and is supported within a metal frame.
What is the diameter of the pulley?
The pulley has an approximate diameter of 50 mm.
How is the apparatus mounted?
It is fitted with a clamping arrangement for attaching the apparatus directly to a compatible board or laboratory benchtop.
What is the maximum bench thickness it can accommodate?
The clamp can be fitted to a board or benchtop up to approximately 25 mm thick.
Can it be used as a fixed pulley?
Yes. The apparatus provides a convenient single fixed-pulley arrangement for suitable laboratory demonstrations.
Can it demonstrate the change in direction of force?
Yes. A fixed pulley arrangement can be used to demonstrate how the direction of an applied effort can be changed while lifting or balancing a load.
Can it be used with laboratory masses?
Yes. Compatible mass hangers, slotted masses or hook weights can be incorporated into suitable experiments.
Can a Spring Balance be used with this pulley?
Yes. A compatible Spring Balance can be used in suitable arrangements for measuring or comparing force and tension.
Where is this pulley commonly used?
It is suitable for physics laboratories, mechanics laboratories and scientific teaching facilities conducting basic pulley and force experiments.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- 50 mm aluminium pulley
- Strong metal supporting frame
- Convenient bench-clamping arrangement
- Suitable for surfaces up to 25 mm thick
- Compact and reusable construction
- Useful for force, tension and motion experiments
- Suitable for institutional laboratory procurement
- Bulk supply available
- OEM requirements supported
Call to Action
Equip your mechanics laboratory with the Single Pulley – Bench Mounting from Micro Technologies for convenient demonstrations of force, tension, motion and pulley mechanics. Contact us for competitive pricing, institutional laboratory procurement, bulk supply, OEM requirements and customized quotations.
