Senior Projection Microscope (MT-269 Series)
Product Specification Sheet

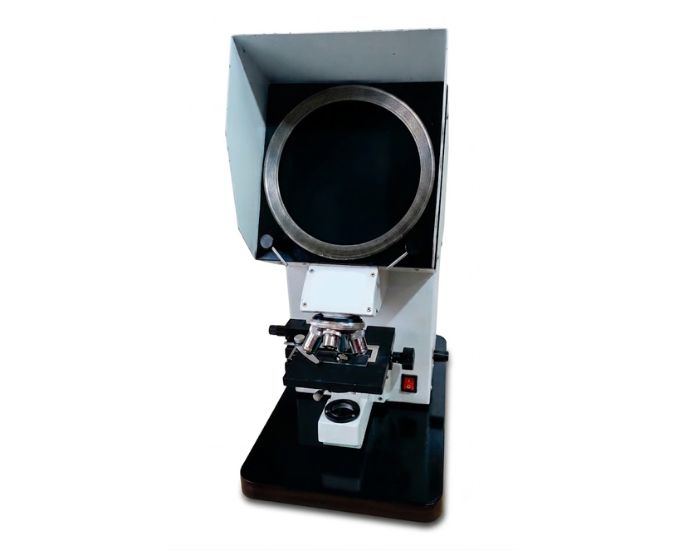

Senior Projection Microscope (MT-269 Series)
Model Number: MTPM-02
The Senior Projection Microscope (MT-269 Series) is a professional projection microscope designed for laboratory demonstrations, scientific analysis, measurement, and group observation. Manufactured by Micro Technologies, it features a large 200 mm projection screen, precision optics, Koehler illumination, and magnification up to 1000X, making it ideal for educational institutions, research laboratories, and industrial quality inspection.
Product Specification
The Senior Projection Microscope (MT-269 Series) is a high-performance laboratory projection microscope developed for professional teaching, scientific demonstrations, specimen analysis, and precision measurement. Manufactured by Micro Technologies, it enables enlarged projection of microscopic specimens onto an integrated screen, allowing multiple users to observe, analyze, and discuss samples simultaneously.
Designed for schools, colleges, universities, research institutes, medical laboratories, textile industries, and quality control facilities, the microscope provides a practical solution for group demonstrations where conventional microscopes limit simultaneous observation.
The microscope incorporates a 200 mm graduated projection screen that rotates through 360°, allowing comfortable viewing from different positions while providing accurate dimensional reference for measurement and comparison studies.
A separate coarse and fine focusing mechanism enables precise image adjustment for maximum clarity at every magnification level. The coaxial low-drive mechanical stage provides smooth specimen movement, allowing accurate positioning during demonstrations and measurement procedures.
The optical system includes 5X, 10X, 20X, and 40X/45X objectives, delivering a magnification range of 125X to 1000X. This broad magnification capability makes the microscope suitable for biological specimens, textile fibers, medical samples, industrial components, and educational demonstrations.
The microscope utilizes a Koehler illumination system powered by a 12V 100W halogen lamp, providing bright, uniform illumination with excellent contrast for high-quality image projection and accurate specimen observation.
Manufactured by Micro Technologies, every Senior Projection Microscope undergoes stringent quality inspection to ensure reliable optical performance, smooth mechanical operation, and long operational life. The MT-269 Series is trusted by universities, science laboratories, medical institutions, textile testing laboratories, industrial inspection facilities, and research organizations.
Features
- Professional senior projection microscope
- Large 200 mm graduated projection screen
- Screen rotates through 360°
- Separate coarse and fine focusing controls
- Coaxial low-drive mechanical stage
- Smooth specimen positioning
- Precision optical system
- Objectives: 5X, 10X, 20X, 40X/45X
- Magnification range: 125X–1000X
- Koehler illumination system
- 12V 100W halogen lamp
- Suitable for measurement and comparison studies
- Durable laboratory construction
- Long operational life
Benefits
- Enables group specimen observation
- Produces bright and sharp projected images
- Ideal for classroom demonstrations
- Supports accurate measurement and comparison
- Smooth specimen manipulation
- Wide magnification range
- Professional laboratory performance
- Reliable illumination system
- Easy operation and maintenance
- Long service life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Senior Projection Microscope |
| Model Series | MT-269 |
| Microscope Type | Laboratory Projection Microscope |
| Projection Screen | 200 mm Graduated Screen |
| Screen Rotation | 360° |
| Focusing | Separate Coarse & Fine Focusing |
| Objectives | 5X, 10X, 20X, 40X/45X |
| Magnification | 125X–1000X |
| Stage | Coaxial Low-Drive Mechanical Stage |
| Illumination | Koehler Illumination System |
| Light Source | 12V 100W Halogen Lamp |
| Accessories | Vinyl Cover, Dust Cover, Fuse |
| Applications | Laboratory Demonstrations, Measurement, Textile Inspection, Medical Studies, Scientific Research |
Available Models
| Model | Description |
|---|---|
| MT-269(A) | Senior Projection Microscope |
Optional Accessories
- 60X Objective
- Stage Micrometer
- Spare 12V 100W Halogen Bulb
- Pointer Attachment
- Magnifying Loop
- Projection Screen Accessories
- Dust Cover
- Carrying Case
SKU System
- MT-269-A
FAQs
What is the MT-269 Senior Projection Microscope used for?
The MT-269 Series is designed for laboratory demonstrations, scientific teaching, specimen analysis, dimensional measurement, textile inspection, medical studies, and industrial quality control.
What size projection screen does the microscope include?
The microscope features a 200 mm graduated projection screen that rotates through 360° for convenient viewing.
What magnification range does the microscope offer?
The MT-269 Series provides a magnification range of 125X to 1000X, depending on the selected objective and eyepiece combination.
Which objectives are supplied?
It includes 5X, 10X, 20X, and 40X/45X objectives for various laboratory applications.
What illumination system is used?
The microscope is equipped with a Koehler illumination system using a 12V 100W halogen lamp for bright, uniform projection.
Which industries commonly use the MT-269 Series?
The microscope is widely used in schools, colleges, universities, medical laboratories, textile industries, research institutes, quality control laboratories, and industrial inspection facilities.
Can the MT-269 Series be supplied in bulk?
Yes. Micro Technologies supplies the MT-269 Series for educational institutions, OEM manufacturing, government tenders, distributors, export projects, and bulk laboratory procurement.
Why Choose Our Products
- High-quality projection optics
- Large graduated projection screen
- Precision Koehler illumination
- Smooth mechanical stage movement
- Wide magnification range
- Durable laboratory construction
- OEM manufacturing support
- Competitive pricing
- Bulk institutional supply
- Strict quality inspection
- Professional technical assistance
- Reliable after-sales service
Call to Action
Choose the Senior Projection Microscope (MT-269 Series) from Micro Technologies for accurate specimen projection, laboratory demonstrations, educational training, scientific research, and industrial inspection. Contact us today for pricing, customized configurations, institutional procurement, OEM manufacturing, government tenders, distributor inquiries, or a competitive quotation.
