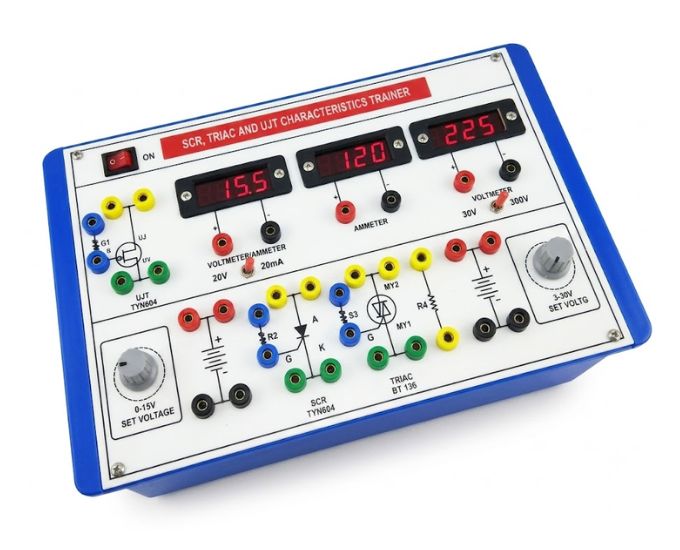

SCR, TRIAC and UJT Characteristics Trainer
Model Number: MTDK-13
The SCR, TRIAC and UJT Characteristics Trainer is a complete laboratory training system designed to study the voltage-current (V-I) characteristics and switching behavior of SCR, TRIAC, and Unijunction Transistor (UJT) devices. Manufactured by Micro Technologies, the trainer features digital measuring instruments, dual regulated DC power supplies, built-in semiconductor devices, and comprehensive safety protection, making it an ideal solution for engineering colleges, universities, polytechnic institutes, technical training centers, and power electronics laboratories.
Product Specification
The SCR, TRIAC and UJT Characteristics Trainer is specially developed to provide students with practical knowledge of power semiconductor devices through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the operating principles, triggering mechanisms, and switching characteristics of SCR, TRIAC, and Unijunction Transistor (UJT) devices used in modern electronic and industrial control applications.
The trainer supports detailed experiments on the V-I Characteristics of Silicon Controlled Rectifier (SCR), TRIAC Characteristics, and UJT Characteristics. Students can study forward blocking characteristics, gate triggering, breakover voltage, latching current, holding current, peak-point voltage, valley-point voltage, negative resistance region, and bidirectional switching behavior. These experiments provide a clear understanding of semiconductor switching devices used in controlled rectifiers, AC power controllers, oscillators, triggering circuits, motor speed controllers, dimmers, and industrial automation systems.
The trainer incorporates onboard SCR TYN604, TRIAC BT136, and UJT 2N2646, allowing students to perform multiple semiconductor experiments using a single compact laboratory trainer. Each device is permanently mounted on the front panel, eliminating external component installation while improving experiment reliability.
Integrated digital panel meters provide highly accurate voltage and current measurements, enabling students to plot characteristic curves and analyze semiconductor performance with precision. Two independently regulated DC power supplies allow separate control of gate and device voltages through front-panel potentiometers, ensuring smooth voltage adjustment and repeatable experimental observations.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and symbols for easy identification of components and test points. Color-coded 4 mm safety sockets provide secure laboratory connections and simplify wiring during practical sessions.
To ensure safe laboratory operation, the trainer incorporates fuse-based short-circuit protection, protecting both the equipment and users against accidental overloads. The complete system is enclosed inside a rugged ABS plastic cabinet designed for continuous educational use while maintaining a compact tabletop configuration.
The SCR, TRIAC and UJT Characteristics Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, semiconductor laboratories, power electronics laboratories, electronics laboratories, and research institutions for practical semiconductor education.
Every SCR, TRIAC and UJT Characteristics Trainer manufactured by Micro Technologies undergoes comprehensive quality testing to ensure operational reliability, measurement accuracy, safety, and long service life.
Features
- Study of SCR characteristics
- Study of TRIAC characteristics
- Study of UJT characteristics
- V-I characteristics analysis
- SCR gate triggering experiments
- TRIAC bidirectional switching analysis
- UJT negative resistance characteristics
- Peak-point and valley-point voltage analysis
- Built-in SCR (TYN604)
- Built-in TRIAC (BT136)
- Built-in UJT (2N2646)
- Digital voltage and current measurement
- Dual regulated DC power supplies
- Independent voltage adjustment
- Precision potentiometer controls
- High-quality insulated PCB
- Clearly printed circuit diagrams
- Color-coded 4 mm safety sockets
- Fuse short-circuit protection
- Rugged ABS plastic cabinet
- Ready-to-use laboratory trainer
- Low maintenance
- Instruction manual included
Benefits
- Performs three semiconductor experiments on one trainer
- Enhances practical understanding of power semiconductor devices
- Provides accurate digital measurements
- Simplifies laboratory experimentation
- Supports engineering and diploma laboratory curriculum
- Safe low-voltage operation
- Easy circuit setup
- Reduces wiring complexity
- Improves troubleshooting and analytical skills
- Durable educational equipment
- Suitable for continuous classroom demonstrations
- Cost-effective laboratory solution
Product Specifications
| Specification | Details |
|---|---|
| Product Name | SCR, TRIAC and UJT Characteristics Trainer |
| Experiments | SCR, TRIAC & UJT Characteristics |
| Current Measurement | Digital Panel Meter (2 mA / 20 mA DC) |
| Current Measurement | Digital Panel Meter (200 mA DC) |
| Voltage Measurement | Digital Panel Meter (20 V / 200 V DC) |
| DC Supply I | Regulated 0–15 V DC, 150 mA |
| DC Supply II | Regulated 0–30 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| SCR Device | TYN604 |
| TRIAC Device | BT136 |
| UJT Device | 2N2646 |
| Voltage Control | Front Panel Potentiometers |
| Connection Type | 4 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Protection | Fuse Short Circuit Protection |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Diploma Colleges
- Electronics Laboratories
- Power Electronics Laboratories
- Semiconductor Laboratories
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Vocational Education
- Faculty Demonstrations
- Research Laboratories
- Skill Development Programs
Optional Accessories
- Digital Multimeter
- Oscilloscope
- Function Generator
- Regulated DC Power Supply
- Semiconductor Experiment Kit
- Patch Cords (4 mm)
- Electronics Tool Kit
- Laboratory Workstation
- Breadboard Trainer Kit
- User Instruction Manual
SKU System
MT-STUCT-001
FAQs
What is the SCR, TRIAC and UJT Characteristics Trainer used for?
It is used to study the V-I characteristics, triggering mechanisms, switching behavior, and operating principles of SCR, TRIAC, and UJT semiconductor devices.
Which semiconductor devices are included?
The trainer incorporates:
- SCR (TYN604)
- TRIAC (BT136)
- UJT (2N2646)
Which experiments can be performed?
Students can study:
- SCR Characteristics
- TRIAC Characteristics
- UJT Characteristics
- SCR Gate Triggering
- TRIAC Bidirectional Switching
- Peak-Point and Valley-Point Characteristics of UJT
- Negative Resistance Region of UJT
What power supplies are included?
The trainer includes:
- Regulated 0–15 V DC, 150 mA
- Regulated 0–30 V DC, 150 mA
What measuring instruments are provided?
The trainer features digital panel meters for accurate voltage and current measurements.
How are experimental connections made?
All connections are made through 4 mm color-coded safety sockets, ensuring reliable and secure laboratory operation.
Is the trainer protected against short circuits?
Yes. The trainer incorporates fuse-based short-circuit protection for safe operation.
Can the SCR, TRIAC and UJT Characteristics Trainer be supplied in bulk?
Yes. Micro Technologies supplies SCR, TRIAC and UJT Characteristics Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
