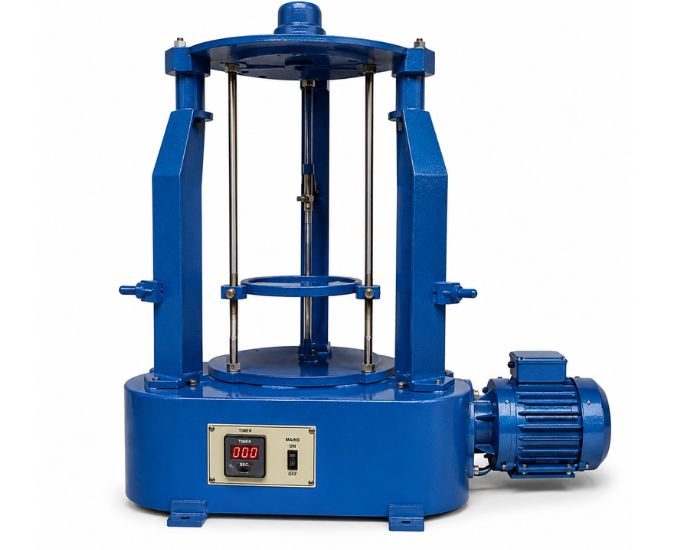

Rotap Sieve Shaker (MT-170 Series)
Product Specification Sheet
Rotap Sieve Shaker (MT-170 Series)
Model Number: MTMI-08
The Rotap Sieve Shaker (MT-170 Series) is a heavy-duty laboratory instrument designed for precise particle size analysis of granular and powdered materials. Manufactured by Micro Technologies, the unit accommodates up to 7 standard test sieves (6" to 8" diameter) and is powered by a 1/4 HP single-phase motor for consistent and accurate sieve analysis. It is widely used in civil engineering laboratories, mining industries, cement plants, pharmaceutical laboratories, food processing industries, universities, research institutes, and industrial quality control laboratories.
Product Specification
The Rotap Sieve Shaker (MT-170 Series) is a precision laboratory sieve analysis system engineered for accurate grading and particle size determination of granular materials. Manufactured by Micro Technologies, this heavy-duty machine combines rotary and tapping action to deliver highly efficient and repeatable sieving performance for laboratory and industrial applications.
Designed for routine quality control and research laboratories, the shaker accommodates up to seven standard laboratory test sieves ranging from 6-inch to 8-inch diameter. The combined rotary and tapping mechanism ensures effective separation of particles by continuously agitating the sieve stack, resulting in accurate particle size distribution.
The MT-170 Series is particularly suitable for non-gummy and non-fibrous materials, making it ideal for testing aggregates, sand, minerals, cement, coal, fertilizers, chemicals, ceramics, food products, pharmaceutical powders, and similar materials.
The shaker includes an adjustable post capable of securely holding mortar or sieve assemblies with diameters ranging from 75 mm to 135 mm, providing excellent flexibility for various laboratory testing applications.
Powered by a 1/4 HP single-phase motor, the machine delivers reliable and continuous performance while maintaining smooth operation and minimal vibration. Its rugged steel construction ensures long service life and dependable operation even under demanding laboratory conditions.
Manufactured by Micro Technologies, every Rotap Sieve Shaker undergoes stringent quality inspection to ensure accurate sieve analysis, reliable operation, and long operational life. The MT-170 Series is widely used in civil engineering laboratories, mining industries, cement plants, pharmaceutical industries, food testing laboratories, research institutes, universities, and industrial quality control departments.
Features
- Combined rotary and tapping sieve action
- Accommodates up to 7 standard test sieves
- Compatible with 6" to 8" diameter sieves
- Heavy-duty laboratory construction
- Adjustable holding post
- Supports 75 mm to 135 mm diameter mortar
- Powered by 1/4 HP single-phase motor
- Smooth and uniform sieve operation
- High particle separation efficiency
- Compact laboratory design
- Stable vibration-controlled operation
- Continuous-duty performance
- Low maintenance design
- Energy-efficient operation
- Long service life
Benefits
- Provides accurate particle size analysis
- Ensures repeatable laboratory results
- Suitable for continuous quality control
- Holds multiple sieves simultaneously
- Ideal for granular and powdered materials
- Rugged industrial construction
- Easy operation and maintenance
- Stable and reliable performance
- Improves laboratory productivity
- Long operational life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Rotap Sieve Shaker (MT-170 Series) |
| Product Type | Laboratory Rotap Sieve Shaker |
| Sieve Capacity | Up to 7 Test Sieves |
| Compatible Sieve Diameter | 6" to 8" |
| Suitable Materials | Non-Gummy & Non-Fibrous Materials |
| Mortar Holding Capacity | 75 mm to 135 mm Diameter |
| Motor Power | 1/4 HP |
| Motor Type | Single Phase |
| Construction | Heavy-Duty Steel Construction |
| Power Supply | 220V AC, 50Hz |
| Applications | Particle Size Analysis, Soil Testing, Aggregate Testing, Cement Testing, Mining Laboratories, Pharmaceutical Laboratories, Food Testing |
Available Models
| Model | Description |
|---|---|
| MT-170 | Standard Rotap Sieve Shaker |
Customized configurations are available on request.
Optional Accessories
- Standard Test Sieves
- Sieve Lid
- Bottom Receiving Pan
- Digital Timer
- Calibration Certificate
- Sieve Cleaning Brush
- Additional Clamping Assembly
- Customized Sieve Sets
SKU System
- MT-170
FAQs
What is a Rotap Sieve Shaker used for?
A Rotap Sieve Shaker is used for accurate particle size analysis by separating granular materials through a stack of standard laboratory test sieves using combined rotary and tapping motion.
How many sieves can the MT-170 Series accommodate?
The MT-170 Series accommodates up to seven standard laboratory test sieves.
What sieve sizes are compatible?
The machine is compatible with 6-inch and 8-inch diameter test sieves.
What type of materials can be tested?
The MT-170 Series is suitable for non-gummy and non-fibrous materials, including aggregates, sand, minerals, cement, coal, chemicals, fertilizers, pharmaceutical powders, and food products.
What motor is used in the MT-170 Series?
The shaker is powered by a 1/4 HP single-phase motor, ensuring reliable and continuous laboratory operation.
Which industries commonly use the MT-170 Series?
The Rotap Sieve Shaker is widely used in civil engineering laboratories, mining industries, cement plants, pharmaceutical industries, food testing laboratories, research institutes, universities, and industrial quality control laboratories.
Can the MT-170 Series be supplied in bulk?
Yes. Micro Technologies offers OEM manufacturing, institutional procurement, government tender supply, distributor support, export orders, and bulk industrial supply.
Why Choose Our Products
- Accurate rotary and tapping sieve action
- Heavy-duty laboratory construction
- Supports up to seven standard sieves
- Reliable 1/4 HP motor
- Smooth and repeatable operation
- Energy-efficient performance
- OEM and customized manufacturing
- Competitive pricing
- Bulk supply capability
- Strict quality inspection
- Professional technical support
- Reliable after-sales service
Call to Action
Looking for a reliable Rotap Sieve Shaker (MT-170 Series)? Micro Technologies manufactures and supplies premium laboratory Rotap sieve shakers designed for civil engineering laboratories, mining industries, cement plants, pharmaceutical industries, food testing laboratories, research institutes, universities, and industrial quality control facilities. Contact us today for customized specifications, OEM manufacturing, government tenders, distributor inquiries, bulk orders, or a competitive quotation.
