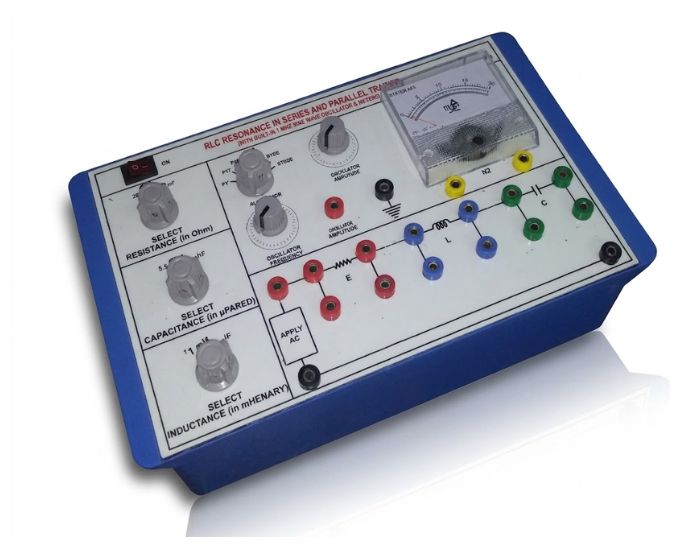

RLC Resonance Trainer (Analog Meters) with 0–100kHz Sine Wave Oscillator
Product Specification Sheet
RLC Resonance Trainer (Analog Meters) with 0–100kHz Sine Wave Oscillator
Model Number: MT-E90B
The RLC Resonance Trainer (Analog Meters) with 0–100kHz Sine Wave Oscillator is a complete laboratory trainer designed for studying series and parallel RLC resonance using an inbuilt variable sine wave oscillator. Manufactured by Micro Technologies, it provides selectable RLC components and analog current measurement for comprehensive AC circuit analysis.
Product Specification
The RLC Resonance Trainer (Analog Meters) with 0–100kHz Sine Wave Oscillator is a comprehensive laboratory instrument developed for studying the behavior of series and parallel RLC resonant circuits. Manufactured by Micro Technologies, the trainer combines an integrated 0–100kHz sine wave oscillator, analog current measurement, and selectable RLC components to provide a complete solution for AC circuit experiments.
Designed for engineering colleges, universities, polytechnic institutes, and electronics laboratories, the trainer eliminates the need for an external signal generator by incorporating a built-in audio frequency oscillator with continuously variable frequency output.
The trainer features an analog 20mA AC ammeter for monitoring current during resonance experiments. Three different values each of resistors, capacitors, and inductors are provided and can be selected individually using dedicated rotary selector switches, enabling a wide range of resonance experiments with different component combinations.
The built-in 0–100kHz sine wave oscillator provides a stable sinusoidal signal for conducting resonance studies over a broad frequency range. This allows students to accurately determine resonant frequency, observe impedance variations, and study current response without requiring additional laboratory equipment.
All experimental terminals are brought out through 4 mm colour-coded sockets, ensuring convenient and safe circuit connections. The trainer is manufactured using a high-quality insulated printed circuit board with clearly printed circuit diagrams and is housed in a durable ABS plastic cabinet for long-lasting laboratory use.
Scope of Learning
- Study of Series RLC Resonance
- Study of Parallel RLC Resonance
- Resonant Frequency Determination
- Frequency Response Analysis
- AC Circuit Characteristics
- Impedance Measurement
- Current Variation in Resonant Circuits
- Practical Electronics Laboratory Techniques
Features
- Built-in 0–100kHz sine wave oscillator
- Analog AC ammeter
- Three selectable resistors
- Three selectable capacitors
- Three selectable inductors
- Rotary selector switches
- Colour-coded 4 mm sockets
- High-quality insulated PCB
- Clearly printed circuit layout
- Rugged ABS plastic cabinet
- Compact laboratory design
- Long operational life
Benefits
- No external signal generator required
- Wide frequency range for resonance studies
- Easy component selection
- Accurate analog current measurement
- Reliable laboratory performance
- Suitable for engineering education
- Safe laboratory operation
- Durable construction
- Easy circuit configuration
- Low maintenance
- Long service life
- Cost-effective laboratory solution
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | RLC Resonance Trainer (Analog Meters) with 0–100kHz Sine Wave Oscillator |
| Experiments | Series & Parallel RLC Resonance |
| Meter Type | Analog AC Ammeter |
| Ammeter Range | 20mA AC |
| Oscillator | Built-in Sine Wave Oscillator |
| Frequency Range | 0–100kHz |
| Input Supply | 230V AC, 50Hz ±10% |
| Resistors | 3 Selectable via Rotary Switch |
| Capacitors | 3 Selectable via Rotary Switch |
| Inductors | 3 Selectable via Rotary Switch |
| Connection Sockets | 4 mm Colour-Coded |
| Cabinet | ABS Plastic |
| Approximate Size | 12" × 8" |
Items Supplied
- RLC Resonance Trainer (Analog Meters) with 0–100kHz Sine Wave Oscillator
- Instruction Manual
- 4 mm Patch Cords
Optional Accessories
- CRO (Cathode Ray Oscilloscope)
Applications
- Electronics Engineering Laboratories
- AC Circuit Laboratories
- Analog Electronics Laboratories
- Engineering Colleges
- Universities
- Polytechnic Institutes
- Technical Training Centres
- Research Laboratories
- Educational Demonstrations
- Student Practical Experiments
SKU System
MT-RLCO-001
FAQs
What is the RLC Resonance Trainer with 0–100kHz Sine Wave Oscillator used for?
It is used to study series and parallel RLC resonance, resonant frequency, impedance, and frequency response using an integrated sine wave source.
Does the trainer include a built-in signal source?
Yes. The trainer features an inbuilt 0–100kHz sine wave oscillator, eliminating the need for an external function generator.
Which measuring instrument is provided?
The trainer includes an Analog 20mA AC Ammeter for measuring circuit current during resonance experiments.
How are the RLC components selected?
Three resistors, three capacitors, and three inductors are provided, each selectable using dedicated rotary selector switches.
What optional accessory is recommended?
A Cathode Ray Oscilloscope (CRO) is recommended for waveform observation and frequency analysis.
Is the trainer suitable for engineering laboratories?
Yes. It is widely used in engineering colleges, universities, polytechnic institutes, technical training centres, and electronics laboratories.
Can the RLC Resonance Trainer with 0–100kHz Sine Wave Oscillator be supplied in bulk?
Yes. Micro Technologies supplies RLC Resonance Trainers with 0–100kHz Sine Wave Oscillator to educational institutions, government organisations, research laboratories, OEM projects, distributors, and bulk procurement.
