Ripple Tank Controller
Product Specification Sheet

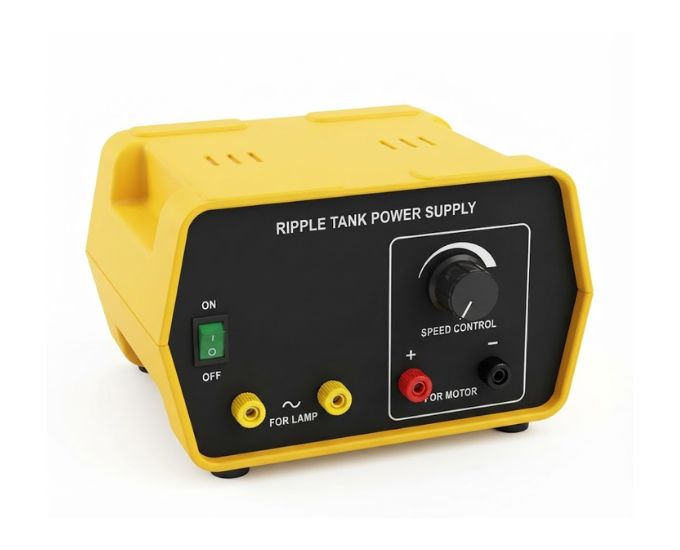

Ripple Tank Controller
Model Number: MTW-01
The Ripple Tank Controller is a dedicated electrical control unit designed to operate the illumination and ripple-producing motor of a compatible ripple tank apparatus. Micro Technologies supplies the controller with a 12V AC, 21W output for illumination and a variable 0–3V DC output for controlling the ripple motor. The adjustable motor supply allows the vibration rate to be varied according to experimental requirements, supporting different water-wave patterns and observations. The controller operates from a 220V AC mains supply and provides the required outputs through a compact, integrated unit. It is a practical accessory for ripple tank experiments involving wave propagation, reflection, refraction, diffraction, interference, and related wave phenomena.
Product Specification
The Ripple Tank Controller is an electrical control unit developed for use with compatible ripple tank systems. It provides separate electrical outputs for the illumination source and ripple-producing motor, bringing the essential power and control functions together in one convenient apparatus.
For illumination, the controller provides a 12V AC output rated at approximately 21W. This output is intended to operate the compatible ripple tank lamp used to illuminate water-wave patterns, helping make wavefronts and their movement easier to observe during experiments.
Micro Technologies supplies the Ripple Tank Controller with an additional variable 0–3V DC output for the ripple motor. The variable output allows the motor operating condition to be adjusted according to the experimental setup. This provides greater control over the production of ripples compared with a fixed-voltage arrangement.
The controller operates from a standard 220V AC mains supply, making it suitable for integration into compatible laboratory installations. By providing low-voltage outputs for the connected ripple tank components, the unit offers a convenient centralized interface between the mains supply and the experimental apparatus.
When combined with a suitable ripple tank, motor, illuminator, and wave-generating accessories, the controller can support investigations involving wave propagation, reflection, refraction, interference, diffraction, and other water-wave phenomena.
Its compact control arrangement simplifies experimental preparation and reduces the need for separate power sources for the illumination and ripple motor. The Ripple Tank Controller therefore provides a practical and dependable accessory for complete ripple tank installations and replacement requirements.
Features
- Dedicated controller for compatible ripple tank systems
- Separate illumination and motor outputs
- 12V AC illumination output
- Approximate illumination rating of 21W
- Variable 0–3V DC ripple motor output
- Adjustable motor control
- Operates from 220V AC mains
- Compact integrated control arrangement
- Convenient connection with compatible ripple tank components
- Suitable for repeated wave experiments
Benefits
- Powers both illumination and ripple motor from one unit
- Variable motor output provides greater experimental control
- Dedicated illumination output supports clear wave observation
- Simplifies ripple tank setup and operation
- Reduces the need for separate power-control units
- Suitable as part of a complete ripple tank system
- Practical for bulk laboratory installation and replacement procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Ripple Tank Controller |
| Internal Model No. | MT-30662 |
| Product Type | Ripple Tank Power & Control Unit |
| Illumination Output | 12V AC |
| Illumination Power | Approx. 21W |
| Motor Output | Variable 0–3V DC |
| Motor Control | Variable |
| Input Supply | 220V AC mains |
| Primary Function | Ripple motor and illumination control |
| Compatible Equipment | Suitable ripple tank apparatus |
| Output Type | AC illumination + variable DC motor output |
| Accuracy / Tolerance | Standard laboratory electrical tolerance |
| Usage / Application | Water-wave and ripple tank experiments |
| Compliance Standard | Laboratory-grade electrical construction |
Available Variants
- MT-30662 – Standard Ripple Tank Controller
- Ripple Tank Controller with variable motor output
- Ripple Tank Illumination & Motor Control Unit
- Controller for compatible ripple tank systems
- Customized electrical configuration for bulk requirements
SKU System
- MT-RTC-STD – Standard Ripple Tank Controller
- MT-RTC-12AC – 12V AC Illumination Configuration
- MT-RTC-03DC – 0–3V DC Motor Control
- MT-RTC-220V – 220V AC Input Configuration
- MT-RTC-CUS – Customized Configuration
FAQs
What is a Ripple Tank Controller used for?
The controller supplies and regulates electrical power for compatible ripple tank components, particularly the illumination system and ripple-producing motor.
What output is provided for the illuminator?
The standard controller provides approximately 12V AC at 21W for a compatible ripple tank illumination system.
What is the ripple motor output range?
The motor output is variable from approximately 0 to 3V DC, allowing the motor operating condition to be adjusted during experiments.
What mains supply does the controller require?
The standard unit is designed to operate from a 220V AC mains supply.
Can the ripple motor speed be adjusted?
Yes. The variable DC output allows control of the compatible ripple motor, helping users modify the wave-generating conditions.
Can it be used for wave interference experiments?
Yes. When connected to a compatible ripple tank and suitable wave-generating accessories, the controller can support interference and other water-wave investigations.
Can it be used for reflection and refraction experiments?
Yes. The controller provides the required illumination and motor control for compatible ripple tank arrangements used to investigate reflection, refraction, diffraction, and wave propagation.
Does the controller include the complete ripple tank?
The controller is an electrical control unit for a compatible ripple tank system. The complete ripple tank and associated accessories should be specified separately unless ordered as a complete setup.
How should the Ripple Tank Controller be maintained?
Keep the unit dry and away from spilled water. Inspect cables, sockets, and connections regularly and disconnect the controller from mains power before cleaning or storage.
Can Ripple Tank Controllers be ordered in bulk?
Yes. Bulk quantities can be supplied for physics laboratories, universities, colleges, research facilities, distributors, and institutional laboratory projects.
Can the electrical configuration be customized?
Certain input, output, connection, enclosure, and packaging specifications may be customized for bulk requirements depending on technical feasibility.
Why Choose Our Products
- Separate illumination and motor control outputs
- Variable 0–3V DC ripple motor supply
- Dedicated 12V AC, 21W illumination output
- Compact and practical control arrangement
- Bulk supply capability for laboratories and distributors
Call to Action
Need Ripple Tank Controllers for wave experiments, replacement requirements, or complete laboratory installations? Contact Micro Technologies for competitive quotations, bulk procurement, distributor orders, institutional requirements, and customized ripple tank configurations.
