Ray Optics Kit
Product Specification Sheet

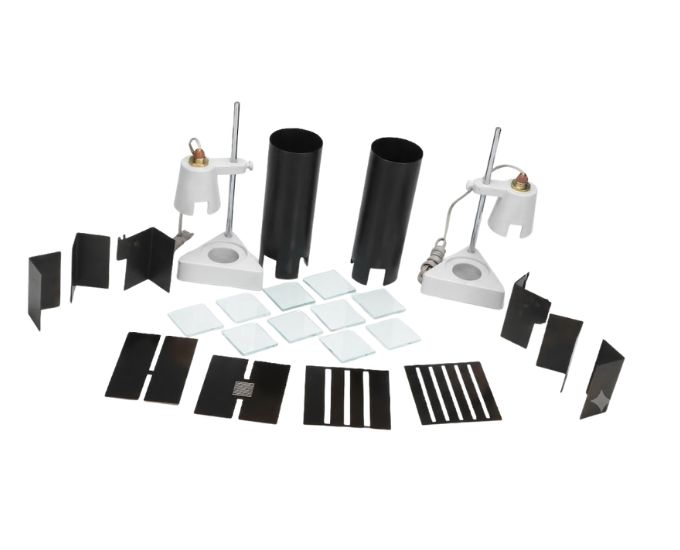

Ray Optics Kit
Model Number: MTO-27
The Ray Optics Kit is a comprehensive collection of light sources, slit systems, lenses, mirrors, and supporting accessories for practical geometrical optics investigations. Micro Technologies supplies the kit with two lamps and stands, housing shields, combined single and triple slit plates, multiple-slit combs, comb holders, slit plates, wooden light barriers, and a selection of cylindrical lenses. The included lenses provide different positive and negative optical powers, allowing users to compare convergence and divergence under different conditions. Four 50 × 50 mm mirrors further extend the kit to reflection investigations. Its broad component selection makes the set suitable for ray tracing, lens behaviour, reflection, refraction, and other optical experiments in physics and optics laboratories.
Product Specification
The Ray Optics Kit is a versatile collection of optical components for carrying out experiments involving light rays, reflection, refraction, convergence, divergence, and geometrical optics. Rather than relying on a single fixed apparatus, the kit provides separate components that can be arranged in different configurations according to the required investigation.
Two lamps with suitable stands provide the illumination required for optical experiments. Housing shields are included to help control unwanted light around the source, while combined single and triple slit plates allow defined ray patterns to be produced. Multiple-slit combs and suitable holders provide additional flexibility when several light rays are required simultaneously.
Micro Technologies supplies the Ray Optics Kit with four wooden light barriers that can be positioned as required to control or restrict unwanted illumination. The supplied slit plates and related accessories allow different ray patterns to be formed for observing how light interacts with lenses and reflecting surfaces.
A key part of the kit is its selection of cylindrical lenses with different optical powers. Four lenses are supplied with +7D power, two with +10D, two with +17D, and two with -17D. Positive-power lenses can be used to investigate convergence and focal behaviour, while negative-power lenses provide corresponding investigations of divergence.
Four mirrors measuring approximately 50 × 50 mm are also included, expanding the experimental possibilities to the laws of reflection and related ray-tracing activities. Different light-source, slit, lens, and mirror combinations can be assembled to compare optical behaviour under varied conditions.
With multiple light sources, interchangeable slit systems, several lens powers, mirrors, and supporting accessories, the Ray Optics Kit provides a flexible and reusable solution for laboratories requiring a broad range of fundamental ray-optics experiments.
Features
- Two lamps with supporting stands
- Pair of light-source housing shields
- Two combined single and triple slit plates
- Two multiple-slit combs
- Two dedicated comb/slit holders
- Four wooden light barriers
- Multiple cylindrical lenses with positive and negative powers
- Four mirrors measuring approximately 50 × 50 mm
- Supports single and multiple ray arrangements
- Suitable for reflection, refraction and lens investigations
Benefits
- Broad component selection supports numerous optics experiments
- Multiple slit arrangements provide flexible ray generation
- Different lens powers enable comparative optical investigations
- Positive and negative lenses demonstrate convergence and divergence
- Separate components allow experimental layouts to be rearranged easily
- Reusable accessories reduce the need for multiple standalone apparatus
- Complete kit provides strong value for laboratory procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Ray Optics Kit |
| Internal Model No. | MT-30415 |
| Product Type | Multi-Component Ray Optics Kit |
| Lamps | 2 Nos. |
| Lamp Stands | 2 Nos. |
| Housing Shields | 1 Pair |
| Single & Triple Slit Plates | 2 Combined Plates |
| Multiple-Slit Combs | 2 Nos. |
| Comb / Slit Holders | 2 Nos. |
| Wooden Light Barriers | 4 Nos. |
| Mirror Size | Approx. 50 × 50 mm |
| Mirrors | 4 Nos. |
| +7D Cylindrical Lenses | 4 Nos. |
| +10D Cylindrical Lenses | 2 Nos. |
| +17D Cylindrical Lenses | 2 Nos. |
| -17D Cylindrical Lenses | 2 Nos. |
| Usage / Application | Ray tracing, reflection, refraction, convergence and divergence |
| Compliance Standard | Laboratory-grade optical and manufacturing quality |
Available Variants
- MT-30415 – Complete Ray Optics Kit
- Ray Optics Kit with lamp and slit accessories
- Ray Optics Kit with cylindrical lens collection
- Reflection and Refraction Optical Kit
- Customized optics kit for bulk laboratory requirements
Standard Components Included
- 2 Lamps with 2 stands
- 1 Pair housing shields
- 2 Combined single and triple slit plates
- 2 Multiple-slit combs
- 2 Holders for combs and slit plates
- 4 Wooden light barriers
- 4 Cylindrical lenses of +7D
- 2 Cylindrical lenses of +10D
- 2 Cylindrical lenses of +17D
- 2 Cylindrical lenses of -17D
- 4 Mirrors, approximately 50 × 50 mm
SKU System
- MT-ROK-STD – Standard Ray Optics Kit
- MT-ROK-LNS – Cylindrical Lens Configuration
- MT-ROK-SLT – Slit & Light Source Configuration
- MT-ROK-FULL – Complete Ray Optics Kit
- MT-ROK-CUS – Customized Optics Kit
FAQs
What is the Ray Optics Kit used for?
The kit is used for practical investigations involving ray tracing, reflection, refraction, convergence, divergence, and lens behaviour. Its separate components allow several different optical arrangements to be assembled.
How many lamps are included in the kit?
Two lamps are supplied together with two suitable stands. Housing shields are also included to help manage unwanted surrounding light during optical experiments.
What slit arrangements are provided?
The kit contains two combined single and triple slit plates along with two multiple-slit combs. These provide flexibility for producing individual or multiple light rays.
Which cylindrical lenses are included?
The kit includes four +7D lenses, two +10D lenses, two +17D lenses, and two -17D cylindrical lenses. This provides several optical powers for comparative investigations.
Can convergence and divergence be investigated?
Yes. Positive-power cylindrical lenses can be used to investigate converging rays, while the negative -17D lenses allow diverging ray behaviour to be examined.
Are mirrors supplied with the Ray Optics Kit?
Yes. Four mirrors measuring approximately 50 × 50 mm are supplied for reflection and related ray-tracing experiments.
What are the wooden light barriers used for?
The four wooden barriers can be positioned to block or control unwanted light. This helps improve visibility of the required ray patterns during practical experiments.
Can the kit be used for reflection experiments?
Yes. The supplied mirrors, lamps, and slit systems can be arranged to observe incident and reflected rays and investigate fundamental reflection principles.
Does the Ray Optics Kit require calibration?
Most components do not require routine calibration. For quantitative work, optical alignment, lens positioning, and any external measuring scales should be checked before taking readings.
How should the optical components be maintained?
Keep lenses and mirrors clean and protected from scratches, fingerprints, and impact. Optical components should be stored securely and cleaned only with suitable non-abrasive materials.
Can Ray Optics Kits be ordered in bulk?
Yes. Bulk quantities can be supplied for physics laboratories, optics laboratories, universities, colleges, research facilities, distributors, and institutional procurement projects.
Can the kit configuration be customized?
Lens quantities, optical powers, accessories, packaging, and component combinations may be customized for bulk requirements depending on technical specifications and manufacturing feasibility.
