Pulley Table Clamp
Product Specification Sheet

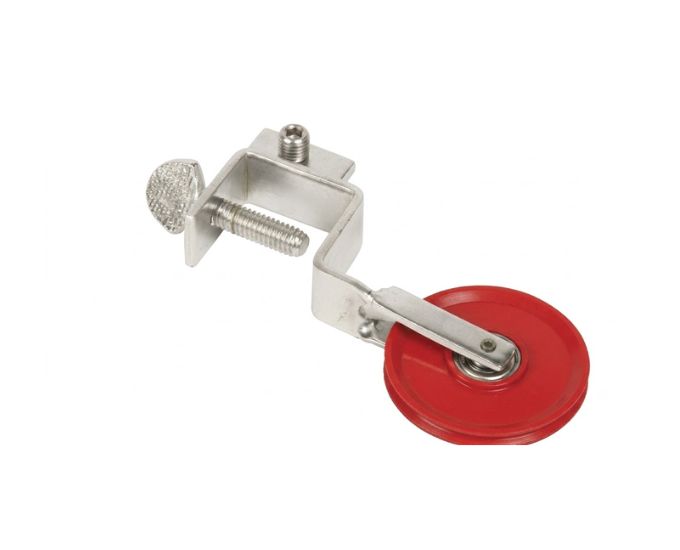

Pulley Table Clamp
Model Number: MTM-23
The Pulley Table Clamp from Micro Technologies is a compact, low-cost laboratory pulley designed for simple machine and mechanics experiments. It features a rigid plastic sheave approximately 50 mm in diameter with a deep V-groove and a convenient table-clamping arrangement. The pulley can be attached to compatible surfaces up to 25 mm thick.
Product Specification
The Pulley Table Clamp from Micro Technologies is designed for physics and mechanics laboratory experiments requiring a simple pulley that can be mounted directly onto a table, board or compatible experimental surface.
The apparatus incorporates a rigid plastic sheave approximately 50 mm in diameter. Its compact pulley size makes it convenient for routine experiments involving cords, suspended masses and force systems.
A deep V-groove is incorporated into the pulley wheel. This groove provides a defined path for a compatible laboratory cord and helps maintain its position on the sheave during normal experimental movement.
The pulley is attached to an integrated table clamp, allowing the complete apparatus to be secured directly to the edge of a suitable working surface.
The clamping arrangement can accommodate surfaces up to approximately 25 mm thick. This makes the apparatus suitable for compatible laboratory tables, boards and experimental platforms.
Its direct mounting arrangement eliminates the need for a separate laboratory stand in many basic pulley experiments, providing a compact setup for mechanics practicals.
The apparatus is particularly useful for simple machine experiments, where students can investigate basic pulley action and the relationship between effort and load.
As a fixed pulley arrangement, it can be used to demonstrate how a pulley can alter the direction of an applied force. A cord can pass through the V-groove while a load and effort are applied at opposite ends.
The Pulley Table Clamp can also support experiments involving tension and suspended masses. Known masses may be connected to the cord to establish controlled loading conditions.
When combined with a compatible Spring Balance, the apparatus can be incorporated into suitable experiments for observing and comparing applied force or cord tension.
The clamp-mounted design is especially convenient when the experimental arrangement requires a cord to travel over the edge of a laboratory table to a vertically suspended mass.
It can also be used with compatible dynamics and mechanics apparatus where a horizontal pulling force needs to be redirected through approximately 90 degrees toward a hanging load.
The compact design makes the pulley easy to install, reposition and remove after an experiment. It also requires minimal storage space compared with larger stand-mounted pulley systems.
The Pulley Table Clamp can complement mass hangers, slotted masses, hook weights, Spring Balances and laboratory cords in a variety of introductory mechanics experiments.
Manufactured and supplied by Micro Technologies, the Pulley Table Clamp is suitable for physics laboratories, mechanics laboratories and scientific teaching facilities requiring a practical clamp-mounted pulley.
Features
- Table clamp pulley configuration
- Low-cost laboratory design
- Rigid plastic sheave
- Approx. 50 mm pulley diameter
- Deep V-groove
- Convenient cord guidance
- Integrated table clamp
- Suitable for surfaces up to 25 mm thick
- Compact laboratory construction
- Suitable for simple machine experiments
- Useful for suspended-load arrangements
- Suitable for force investigations
- Convenient mounting and removal
- No separate stand required for suitable setups
- Reusable laboratory apparatus
Benefits
- Direct table mounting simplifies experimental setup
- Deep V-groove helps guide the laboratory cord
- Compact size suits routine laboratory experiments
- Suitable for basic simple-machine demonstrations
- Useful for force and tension investigations
- Can redirect force in compatible experimental setups
- Works with hanging masses and force-measuring apparatus
- Easy to move between laboratory benches
- Requires minimal storage space
- Practical solution for institutional laboratory use
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Pulley Table Clamp |
| Product Type | Clamp-Mounted Laboratory Pulley |
| Pulley / Sheave Material | Rigid Plastic |
| Pulley Diameter | Approx. 50 mm |
| Groove | Deep V-Groove |
| Mounting | Table / Board Clamp |
| Maximum Surface Thickness | Approx. 25 mm |
| Pulley Configuration | Single |
| Primary Application | Simple Machine Experiments |
| Additional Applications | Force / Tension / Load Experiments |
| Use | Physics / Mechanics Laboratory |
Applications
- Simple machine experiments
- Fixed pulley demonstrations
- Force experiments
- Tension investigations
- Load and effort experiments
- Suspended-mass experiments
- Direction of force demonstrations
- Spring Balance experiments
- Basic mechanical advantage studies
- Hanging-load arrangements
- Mechanics laboratory practicals
- Physics laboratory experiments
- Table-mounted pulley setups
- General mechanics demonstrations
Available Variants
Pulley Table Clamp, Table Clamp Pulley, 50 mm Plastic Pulley Clamp, Bench Mounted Pulley, Deep V-Groove Pulley, Laboratory Table Pulley, Simple Machine Pulley Clamp, Physics Laboratory Pulley
SKU System
MT-PTC-Series
FAQs
What is a Pulley Table Clamp used for?
It is designed primarily for simple machine, force, tension, load and basic pulley experiments in physics and mechanics laboratories.
What is the diameter of the pulley?
The rigid plastic sheave has an approximate diameter of 50 mm.
What type of groove does the pulley have?
The pulley incorporates a deep V-groove for guiding a compatible laboratory cord.
What material is the pulley wheel made from?
The sheave is manufactured from rigid plastic.
How is the pulley mounted?
The apparatus incorporates a clamp that allows it to be attached directly to the edge of a suitable laboratory table or board.
What is the maximum surface thickness it can accommodate?
It can be attached to compatible surfaces up to approximately 25 mm thick.
Can it be used as a fixed pulley?
Yes. It can be used as a basic fixed-pulley arrangement in suitable simple-machine and mechanics experiments.
Can it be used with hanging masses?
Yes. Compatible masses can be connected through a suitable cord for suspended-load and force experiments.
Can a Spring Balance be used with it?
Yes. A compatible Spring Balance can be incorporated into suitable experimental arrangements for force and tension measurements.
Does it require a separate laboratory stand?
For normal table-clamp applications, a separate stand is generally not required, as the pulley mounts directly onto a compatible working surface.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Compact table-mounted configuration
- 50 mm rigid plastic sheave
- Deep V-groove design
- Suitable for surfaces up to 25 mm thick
- Practical for simple machine experiments
- Easy installation and removal
- Suitable for institutional physics laboratories
- Bulk laboratory supply available
- OEM requirements supported
Call to Action
Choose the Pulley Table Clamp from Micro Technologies for a compact and convenient solution to simple machine, force and tension experiments. Contact us for institutional pricing, bulk laboratory procurement, OEM supply and customized quotations.
