Pulley Assembly Set
Product Specification Sheet
Pulley Assembly Set
Model Number: MTM-18

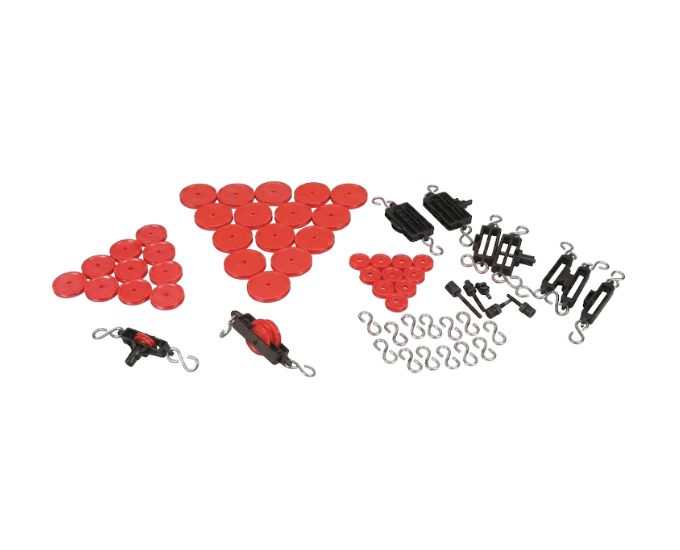

The Pulley Assembly Set from Micro Technologies is a comprehensive laboratory kit designed for assembling different pulley-block configurations. It contains 15 plastic pulley frames, comprising five each of single, double and triple sheave types, with pulley wheels mounted on bearings and hooks provided. The set also includes 30 plastic joining rings, 10 cord pieces of 25 cm and 10 cord pieces of 50 cm for versatile mechanics experiments.
Product Specification
The Pulley Assembly Set from Micro Technologies is designed for practical physics and mechanics laboratory experiments involving pulleys, forces, loads and mechanical advantage. The set provides multiple pulley components that can be combined in different ways to create a variety of pulley-block arrangements.
A total of 15 plastic pulley frames are supplied. These include five single-sheave frames, five double-sheave frames and five triple-sheave frames, giving users flexibility to construct both simple and compound pulley systems.
The different sheave configurations allow experimental setups to progress from basic single-pulley arrangements to more advanced multiple-pulley combinations. This makes the set useful for studying how pulley configuration influences force and load movement.
Each pulley wheel is mounted with a bearing in a pair of hooks. This arrangement supports smooth rotational movement and provides convenient attachment points for assembling experimental pulley systems.
The kit also contains 30 plastic joining rings. These rings can be used with compatible components to establish different connections and support a variety of pulley arrangements.
Cord is supplied in two useful lengths. The set includes 10 pieces measuring approximately 25 cm each and 10 pieces measuring approximately 50 cm each.
Having multiple cord lengths allows users to assemble different experimental configurations without requiring a single fixed pulley layout. The cords can be routed through the appropriate sheaves according to the intended mechanics experiment.
The Pulley Assembly Set is particularly useful for studying mechanical advantage. By comparing the applied effort with the supported load in different pulley configurations, users can investigate how multiple supporting cord sections influence the required effort.
The apparatus can also be used to demonstrate the difference between fixed and movable pulley arrangements. Appropriate combinations of frames can be assembled to observe changes in force direction and mechanical advantage.
Single-sheave configurations provide a straightforward introduction to basic pulley operation, while double and triple sheave arrangements allow more complex block-and-tackle systems to be investigated.
The set can be combined with suitable masses, spring balances and laboratory supports for quantitative investigations involving effort, load, tension and mechanical advantage.
Its modular arrangement enables components to be rearranged for multiple experiments rather than being limited to one permanently assembled configuration.
The plastic pulley frames provide a lightweight laboratory arrangement that is convenient to handle, assemble, dismantle and store between practical sessions.
Manufactured and supplied by Micro Technologies, the Pulley Assembly Set is suitable for physics laboratories, mechanics laboratories and scientific facilities requiring a versatile modular pulley system for force and simple-machine experiments.
Features
- Complete pulley assembly set
- 15 plastic pulley frames
- Five single-sheave pulley frames
- Five double-sheave pulley frames
- Five triple-sheave pulley frames
- Bearing-mounted pulley wheels
- Pair-of-hooks mounting arrangement
- 30 plastic joining rings
- 10 cords approximately 25 cm long
- 10 cords approximately 50 cm long
- Modular experimental configuration
- Multiple pulley combinations possible
- Suitable for simple and compound pulley systems
- Lightweight laboratory construction
- Suitable for repeated mechanics experiments
Benefits
- Allows different pulley blocks to be assembled
- Single, double and triple sheaves support varied experiments
- Bearing-mounted wheels provide smooth pulley movement
- Multiple joining rings simplify experimental assembly
- Two cord lengths provide setup flexibility
- Useful for studying mechanical advantage
- Supports fixed and movable pulley demonstrations
- Suitable for block-and-tackle investigations
- Modular components can be reused in different arrangements
- Helps demonstrate practical force and simple-machine concepts
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Pulley Assembly Set |
| Product Type | Modular Pulley Experiment Set |
| Pulley Frame Material | Plastic |
| Total Pulley Frames | 15 |
| Single Sheave Frames | 5 |
| Double Sheave Frames | 5 |
| Triple Sheave Frames | 5 |
| Pulley Wheel Mounting | Bearing Mounted |
| Hook Arrangement | Pair of Hooks |
| Plastic Joining Rings | 30 |
| 25 cm Cord Pieces | 10 |
| 50 cm Cord Pieces | 10 |
| Configuration | Modular / Reconfigurable |
| Application | Pulley & Mechanical Advantage Experiments |
| Use | Physics / Mechanics Laboratory |
Set Composition
| Component | Quantity |
|---|---|
| Single Sheave Pulley Frames | 5 |
| Double Sheave Pulley Frames | 5 |
| Triple Sheave Pulley Frames | 5 |
| Plastic Joining Rings | 30 |
| 25 cm Cord Pieces | 10 |
| 50 cm Cord Pieces | 10 |
Applications
- Single pulley experiments
- Double pulley experiments
- Triple pulley experiments
- Fixed pulley demonstrations
- Movable pulley demonstrations
- Compound pulley experiments
- Block-and-tackle arrangements
- Mechanical advantage investigations
- Effort and load experiments
- Force and tension studies
- Simple machine demonstrations
- Pulley-system assembly activities
- Mechanics laboratory practicals
- Physics laboratory experiments
Available Variants
Pulley Assembly Set, Laboratory Pulley Set, Physics Pulley Kit, Single Double Triple Pulley Set, Pulley Block Assembly Kit, Mechanical Advantage Pulley Set, Simple Machines Pulley Kit, Modular Pulley Experiment Set
SKU System
MT-PAS-Series
FAQs
What is a Pulley Assembly Set used for?
It is used to assemble different single, double, triple and compound pulley configurations for studying force, tension, load and mechanical advantage.
How many pulley frames are included?
The complete set contains 15 plastic pulley frames.
Which pulley configurations are supplied?
The set includes five single-sheave, five double-sheave and five triple-sheave pulley frames.
Are the pulley wheels bearing mounted?
Yes. Each pulley wheel is provided with a bearing arrangement for smooth rotational movement.
How many joining rings are included?
The set contains 30 plastic joining rings.
Are cords supplied with the set?
Yes. It includes 10 pieces of 25 cm cord and 10 pieces of 50 cm cord.
Can it be used to study mechanical advantage?
Yes. Different pulley combinations can be assembled to investigate how pulley arrangements influence effort, load and mechanical advantage.
Can fixed and movable pulleys be demonstrated?
Yes. Suitable components can be arranged to demonstrate both fixed and movable pulley systems.
Can block-and-tackle arrangements be created?
Yes. The single, double and triple sheave components enable suitable compound and block-and-tackle configurations to be assembled.
Can the set be used with masses and Spring Balances?
Yes. It can be combined with compatible laboratory masses, Spring Balances and supports for quantitative mechanics experiments.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- 15-piece pulley frame collection
- Single, double and triple sheave options
- Bearing-mounted pulley wheels
- 30 joining rings included
- Two useful cord lengths supplied
- Modular and reusable laboratory configuration
- Suitable for mechanical advantage experiments
- Institutional and bulk procurement available
- OEM requirements supported
Call to Action
Build multiple mechanics experiments from one versatile Pulley Assembly Set by Micro Technologies. Ideal for demonstrating pulley systems, mechanical advantage, effort and load relationships, the set is available for physics laboratory procurement, institutional supply and bulk requirements. Contact us for pricing, OEM supply and customized quotations.
