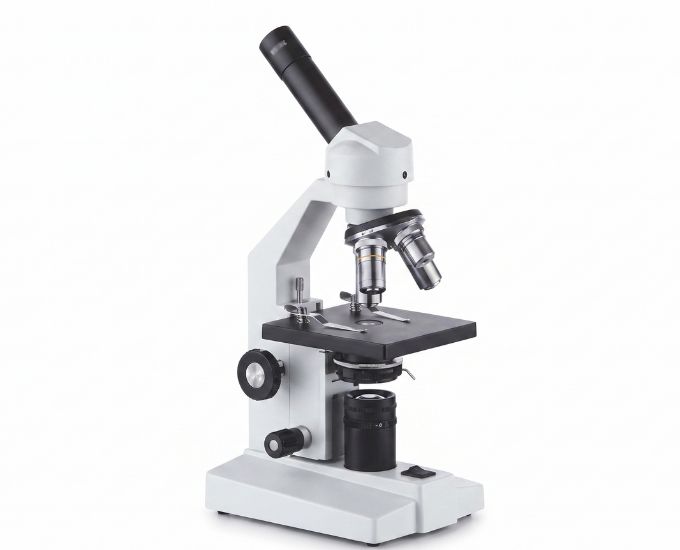

Professional Monocular Laboratory Microscope with Halogen Illumination
Product Specification Sheet
Professional Monocular Laboratory Microscope with Halogen Illumination
Model Number: MTM-029
The Professional Monocular Laboratory Microscope from Micro Technologies is designed for educational institutions, diagnostic laboratories, research centers, and industrial laboratories requiring dependable optical performance. Featuring a 45° inclined, 360° rotatable monocular viewing head, precision optical objectives, separate coarse and fine focusing, and multiple illumination options, this microscope delivers sharp, high-contrast images for biological observation, laboratory analysis, and science education.
Product Specification
The Professional Monocular Laboratory Microscope with Halogen Illumination is engineered to provide accurate microscopic observation for biology education, laboratory research, and routine scientific analysis. Built using laboratory-grade materials and precision optical components, it delivers reliable image quality while ensuring durability for continuous laboratory use.
The microscope features a 45° inclined, 360° rotatable monocular viewing head that offers comfortable observation from multiple viewing positions. Its WF10X wide-field eyepiece, combined with 4X, 10X, and 40X(S) objective lenses, produces sharp and detailed images suitable for observing microorganisms, biological tissues, plant cells, insects, and prepared microscope slides.
A spacious 110 × 120 mm stage provides stable support for specimens, while the 0.65 single-lens condenser with disc diaphragm enhances illumination control and image contrast. The microscope is equipped with separate coarse and fine focusing mechanisms, allowing fast initial focusing followed by precise image adjustment for detailed specimen examination.
The built-in electrical illumination system supports halogen lighting as standard, with optional fluorescent, tungsten bulb, or LED illumination, allowing laboratories to choose the lighting configuration that best suits their application.
Manufactured for long-term reliability, this microscope is suitable for schools, colleges, universities, hospitals, research institutes, pharmaceutical laboratories, and industrial quality control departments. Micro Technologies supplies this microscope for institutional procurement, laboratory modernization projects, distributor networks, and OEM requirements.
Features
- 45° inclined, 360° rotatable monocular head
- Wide-field WF10X eyepiece
- 4X, 10X, and 40X(S) objective lenses
- 110 × 120 mm specimen stage
- 0.65 single-lens condenser with disc diaphragm
- Separate coarse and fine focusing mechanisms
- Built-in electrical illumination
- Standard halogen illumination
- Optional fluorescent, tungsten, or LED lighting
- Rugged laboratory-grade construction
Benefits
- Produces bright and high-resolution microscopic images
- Separate focusing controls provide accurate image adjustment
- Multiple illumination options suit various laboratory needs
- Comfortable viewing reduces user fatigue
- Durable construction ensures long service life
- Suitable for educational, clinical, and research applications
- Excellent value for institutional and bulk procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Professional Monocular Laboratory Microscope with Halogen Illumination |
| Model No. | MTM-029 |
| Product Type | Biological Laboratory Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S) |
| Stage Size | 110 × 120 mm |
| Condenser | 0.65 Single Lens Condenser with Disc Diaphragm |
| Focusing System | Separate Coarse & Fine Focusing Mechanisms |
| Standard Illumination | Built-in Halogen Illuminator |
| Optional Illumination | Fluorescent, Tungsten Bulb, or LED |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Schools, Colleges, Biology Laboratories, Research Institutes & Clinical Laboratories |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Halogen Monocular Microscope
- LED Monocular Laboratory Microscope
- Fluorescent Biological Microscope
- Educational Laboratory Microscope
- Research Monocular Microscope
FAQs
What type of illumination is included?
The microscope comes with a built-in halogen illumination system. Fluorescent, tungsten bulb, and LED illumination options are also available.
Does this microscope include fine focusing?
Yes. It features separate coarse and fine focusing mechanisms for fast and precise specimen focusing.
Can the viewing head rotate?
Yes. The monocular head is inclined at 45° and rotates 360°, allowing comfortable viewing from different angles.
What objective lenses are included?
The microscope includes 4X, 10X, and 40X(S) objective lenses for routine biological and laboratory observations.
Is this microscope suitable for research laboratories?
Yes. It is widely used in schools, colleges, universities, research institutes, clinical laboratories, and industrial quality control laboratories.
Do you provide bulk supply for institutions?
Yes. We offer bulk supply for educational institutions, hospitals, laboratories, distributors, OEM partners, and government procurement projects.
Why Choose Our Products
- Premium laboratory-grade optical instruments
- High-precision optics with reliable performance
- Durable construction for continuous laboratory use
- Competitive pricing for institutional buyers
- Professional technical support and after-sales service
Call to Action
Equip your laboratory with high-performance microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, or a customized quotation for our professional laboratory microscope range.
