Professional Monocular Compound Microscope with 100X Oil Immersion
Product Specification Sheet

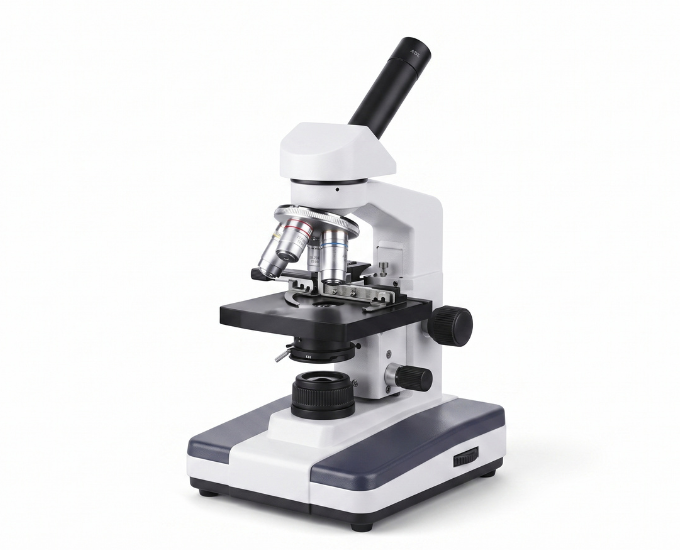

Professional Monocular Compound Microscope with 100X Oil Immersion
Model Number: MTM-032
The Professional Monocular Compound Microscope from Micro Technologies is engineered for advanced biological, clinical, and research applications. Equipped with a 45° inclined, 360° rotatable viewing head, 100X oil immersion objective, precision Abbe condenser, and adjustable halogen illumination, it delivers exceptional optical clarity and accurate specimen analysis. Designed for laboratories, hospitals, universities, and research institutions, this microscope combines robust construction with reliable performance for professional microscopy.
Product Specification
The Professional Monocular Compound Microscope with 100X Oil Immersion is designed to provide superior optical performance for biological research, clinical diagnostics, microbiology, pathology, and educational laboratories. Built using precision optical components and laboratory-grade materials, it ensures reliable performance and long-term durability under continuous laboratory use.
The microscope features a 45° inclined, 360° rotatable monocular viewing head fitted with a WF10X wide-field eyepiece, providing comfortable observation during extended laboratory sessions. It is equipped with 4X, 10X, 40X(S), and 100X(S) oil immersion objectives, enabling users to perform everything from routine specimen observation to high-resolution microscopic analysis.
A 120 × 125 mm plain stage with moving scale allows accurate specimen positioning during examination. The N.A. 1.25 Abbe condenser with an iris diaphragm and filter enhances light distribution and image contrast, producing bright, sharp, and detailed microscopic images.
For precise image adjustment, the microscope incorporates separate coarse and fine focusing mechanisms, allowing quick initial focusing followed by accurate fine-tuning. Standard illumination is provided through a 6V/20W adjustable halogen lamp, compatible with AC 110V/220V power supplies. Optional fluorescent or LED illumination configurations are also available to meet various laboratory requirements.
Manufactured to meet professional laboratory standards, this microscope is ideal for schools, colleges, universities, hospitals, diagnostic laboratories, pharmaceutical companies, research institutes, and industrial quality control facilities. Micro Technologies supplies this microscope for institutional procurement, distributor networks, OEM manufacturing, and government laboratory projects.
Features
- 45° inclined, 360° rotatable monocular viewing head
- Wide-field WF10X eyepiece
- 4X, 10X, 40X(S), and 100X(S) oil immersion objectives
- 120 × 125 mm plain stage with moving scale
- N.A. 1.25 Abbe condenser with iris diaphragm and filter
- Separate coarse and fine focusing mechanisms
- Adjustable 6V/20W halogen illumination
- Optional fluorescent and LED illumination
- Rugged laboratory-grade construction
- Suitable for biological, clinical, and research laboratories
Benefits
- High-resolution imaging with 100X oil immersion objective
- Precise specimen positioning for detailed examination
- Adjustable illumination improves observation quality
- Smooth coarse and fine focusing enhances accuracy
- Comfortable viewing during extended laboratory use
- Durable construction ensures long operational life
- Ideal for educational, clinical, and research applications
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Professional Monocular Compound Microscope with 100X Oil Immersion |
| Model No. | MTM-032 |
| Product Type | Compound Biological Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S), 100X(S) Oil Immersion |
| Stage | Plain Stage with Moving Scale, 120 × 125 mm |
| Condenser | N.A. 1.25 Abbe Condenser with Iris Diaphragm and Filter |
| Focusing System | Separate Coarse & Fine Focusing Mechanisms |
| Standard Illumination | 6V/20W Adjustable Halogen Lamp |
| Optional Illumination | Fluorescent or LED |
| Power Supply | AC 110V / 220V |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Biology, Microbiology, Pathology, Clinical Laboratories, Research Institutes & Educational Institutions |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Halogen Monocular Compound Microscope
- LED Monocular Laboratory Microscope
- Oil Immersion Biological Microscope
- Clinical Laboratory Microscope
- Research Compound Microscope
SKU System
- MTM-032-HAL
- MTM-032-LED
- MTM-032-OIL
- MTM-032-BIO
- MTM-032-RES
FAQs
Does this microscope include a 100X oil immersion objective?
Yes. It is equipped with 4X, 10X, 40X(S), and 100X(S) oil immersion objectives, making it suitable for advanced biological and microbiological analysis.
What type of illumination is provided?
The standard model includes a 6V/20W adjustable halogen illumination system, with optional fluorescent and LED illumination available.
Is the microscope suitable for pathology and microbiology laboratories?
Yes. It is widely used in pathology, microbiology, clinical diagnostics, pharmaceutical laboratories, and research institutions.
Does it have fine focusing adjustment?
Yes. The microscope features separate coarse and fine focusing mechanisms for accurate specimen focusing.
What type of condenser is used?
It is fitted with an N.A. 1.25 Abbe condenser with an iris diaphragm and filter for excellent light control and image contrast.
Can institutions purchase this microscope in bulk?
Yes. Micro Technologies supplies this microscope in bulk for schools, colleges, universities, hospitals, research institutes, distributors, OEM partners, and government organizations.
Why Choose Our Products
- Precision-engineered laboratory optical instruments
- Premium-quality optics with superior image clarity
- Durable construction for continuous laboratory use
- Competitive pricing for institutional procurement
- Professional technical support and dependable after-sales service
Call to Action
Enhance your laboratory with professional microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, or a customized quotation for our premium compound microscope range.
