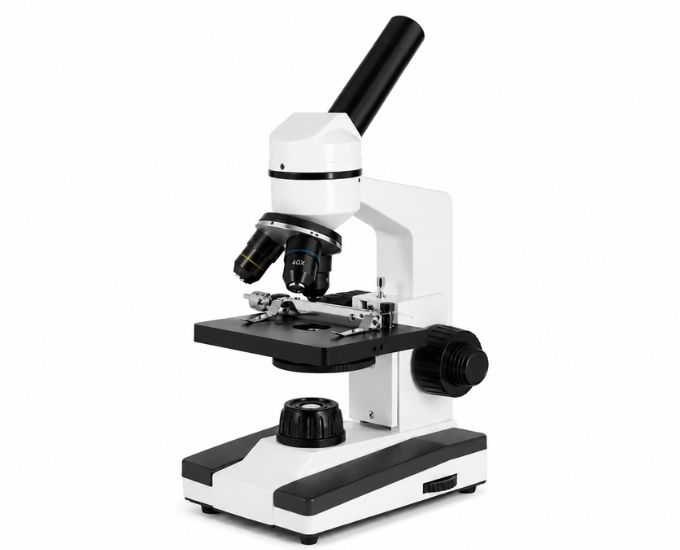

Advanced Optical Monocular Microscope
Product Specification Sheet
Advanced Optical Monocular Microscope
Model Number: MTM-016
The Advanced Optical Monocular Microscope from Micro Technologies is designed for educational laboratories, biology studies, and routine scientific observation. Featuring a 45° inclined, 360° rotatable monocular head, WF10X and WE10X eyepieces, precision objectives, coaxial focusing controls, and bright incandescent illumination, it delivers sharp and reliable images for classroom learning and laboratory applications. Its ergonomic design, durable construction, and precision focusing make it suitable for schools, colleges, universities, and diagnostic laboratories.
Product Specification
The Advanced Optical Monocular Microscope is a precision-engineered compound microscope developed for educational institutions, biology laboratories, and routine scientific observations. Combining high-quality optical components with a durable mechanical design, it provides dependable performance for classroom demonstrations, laboratory practicals, and introductory research applications.
The microscope features a 45° inclined monocular viewing head with 360° rotation, allowing users to comfortably observe specimens from different viewing positions. It is equipped with WF10X and WE10X eyepieces along with 4X, 10X, and 40X spring-loaded objectives, delivering clear, bright, and high-contrast images suitable for examining plant tissues, microorganisms, insects, blood smears, and prepared biological specimens.
A 90 × 90 mm plain stage fitted with slide clips securely holds microscope slides during observation. The integrated single-lens condenser with a disc diaphragm provides effective light control, improving image brightness and contrast for accurate specimen analysis.
The microscope incorporates coaxial coarse and fine focusing adjustments with a fine focusing precision of 0.002 mm, enabling smooth focusing and accurate image refinement. Illumination is provided by a 220V/20W incandescent lamp (110V optional), ensuring bright and consistent lighting for routine laboratory work.
Manufactured using premium-quality optical components and a robust metal body, the microscope offers excellent durability, stability, and long-term reliability. Micro Technologies supplies this microscope to schools, colleges, universities, biology laboratories, training institutes, and educational organizations requiring dependable microscopy equipment.
Features
- 45° inclined monocular viewing head
- 360° rotatable head
- WF10X and WE10X eyepieces
- 4X, 10X, and 40X spring-loaded objectives
- Plain stage with slide clips (90 × 90 mm)
- Single-lens condenser with disc diaphragm
- Coaxial coarse and fine focusing adjustment
- Fine focusing precision: 0.002 mm
- 220V/20W incandescent lamp (110V optional)
- Durable metal construction
- Compact and ergonomic design
- Easy operation and low maintenance
Benefits
- Produces clear and detailed microscopic images
- Comfortable viewing for extended laboratory sessions
- Accurate focusing for precise specimen examination
- Durable construction for long service life
- Reliable illumination for consistent image quality
- Ideal for educational institutions and laboratory training
- Cost-effective solution for routine microscopy applications
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Advanced Optical Monocular Microscope |
| Model Number | MTM-016 |
| Product Type | Compound Monocular Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Eyepieces | WF10X, WE10X |
| Objectives | 4X, 10X, 40X (Spring) |
| Stage | Plain Stage with Slide Clips |
| Stage Size | 90 × 90 mm |
| Condenser | Single Lens Condenser |
| Diaphragm | Disc Diaphragm |
| Focusing System | Coaxial Coarse & Fine Adjustment |
| Fine Focus Precision | 0.002 mm |
| Illumination | 220V/20W Incandescent Lamp (110V Optional) |
| Body Construction | Heavy-duty Metal |
| Applications | Biology, Education, Laboratory Training, Routine Scientific Observation |
| Compliance | Manufactured under ISO Quality Management Standards |
Available Variants
- Advanced Monocular Microscope
- Optical Laboratory Microscope
- Student Biology Microscope
- Educational Compound Microscope
- Precision Focus Monocular Microscope
SKU System
- MM-AOM-001
- MM-AOM-002
- MM-AOM-003
- MM-AOM-004
- MM-AOM-005
FAQs
What is the primary use of this microscope?
It is designed for biology education, laboratory practicals, routine scientific observation, and training applications.
Does this microscope support precise focusing?
Yes. It features coaxial coarse and fine focusing adjustments with a 0.002 mm fine focusing precision for accurate specimen observation.
What type of illumination is included?
The microscope uses a 220V/20W incandescent lamp, with an optional 110V configuration for reliable and uniform illumination.
Is the viewing head rotatable?
Yes. The 45° inclined monocular head rotates 360°, allowing comfortable viewing from different positions.
Can it be used in educational laboratories?
Yes. It is ideal for schools, colleges, universities, biology laboratories, and training institutes.
Do you offer bulk supply?
Yes. Micro Technologies supplies bulk quantities to educational institutions, laboratories, distributors, hospitals, and government organizations with customized quotations.
Why Choose Our Products
- Premium optical components for clear imaging
- Precision engineering for reliable laboratory performance
- Durable construction with low maintenance
- Strict quality inspection before dispatch
- Competitive pricing for institutional buyers
- Trusted manufacturer of laboratory and scientific equipment
Call to Action
Upgrade your laboratory with the Advanced Optical Monocular Microscope from Micro Technologies. Built for educational institutions, biology laboratories, and scientific training, this microscope delivers dependable performance and precise optics. Contact us today for bulk pricing, OEM manufacturing, distributor opportunities, or a customized quotation tailored to your laboratory requirements.
