Plug Key Type Laboratory Resistance Box
Product Specification Sheet

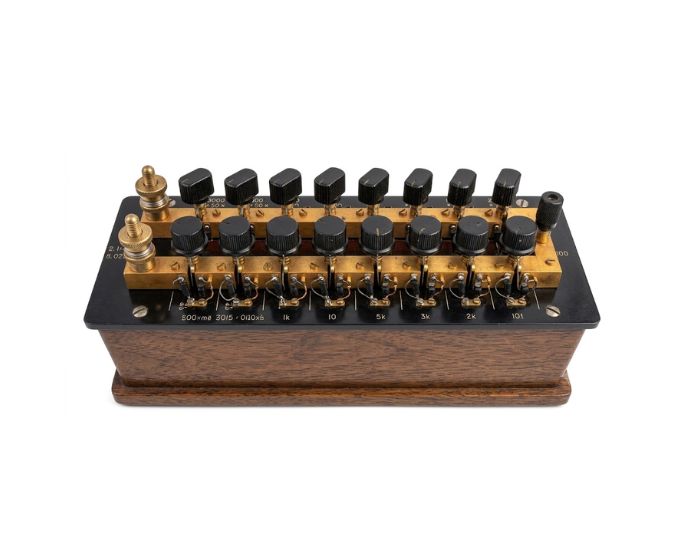

Plug Key Type Laboratory Resistance Box
Model Number: MT-1001
The Plug Key Type Laboratory Resistance Box from Micro Technologies is a precision electrical laboratory apparatus designed to provide selectable resistance values for circuit experiments and electrical measurements. The MT-1001 Series features brass blocks, removable plug keys, and a protective wooden box. Multiple configurations are available with total resistance values ranging from 110 Ω to 11,110 Ω.
Product Specification
The Plug Key Type Laboratory Resistance Box is a laboratory electrical apparatus designed to introduce known resistance values into an electrical circuit. It provides a convenient method of selecting different resistance combinations during experiments, circuit testing, electrical measurements, and physics laboratory practicals.
The MT-1001 Series features a traditional plug-key arrangement with accurately positioned brass blocks mounted on the upper panel. Removable plug keys are used to select the required resistance combination, providing simple and convenient manual operation.
The apparatus is housed in a wooden box, which provides mechanical protection to the internal resistance components while creating a stable base for bench-top operation. The brass block arrangement provides durable electrical contact for repeated laboratory use.
Four resistance configurations are available. The MT-1001A provides a range from 1–50 with a total resistance of 110 Ω, while MT-1001B provides a 1–500 range with 1,110 Ω total resistance. For higher resistance requirements, MT-1001C offers a 1–1000 range with 2,110 Ω, and MT-1001D provides a 1–5000 range with a maximum total resistance of 11,110 Ω.
The selectable resistance arrangement makes the box suitable for circuit experiments, resistance measurements, bridge experiments, electrical testing, and other applications requiring known resistance values.
Manufactured by Micro Technologies, the Plug Key Type Laboratory Resistance Box provides robust construction, convenient resistance selection, and multiple range options for physics, electrical, electronics, research, and testing laboratories.
Features
- Plug-key type resistance selection
- Durable brass block construction
- Supplied in a wooden box
- Multiple resistance ranges available
- Total resistance up to 11,110 Ω
- Convenient manual resistance selection
- Clearly arranged plug positions
- Stable bench-top construction
- Suitable for electrical circuit experiments
- Designed for repeated laboratory use
Benefits
- Provides convenient selection of known resistance values
- Multiple models cover low to high resistance requirements
- Brass blocks provide durable electrical contacts
- Wooden enclosure protects internal components
- Simple plug-key mechanism is easy to operate
- Useful for a variety of circuit and measurement experiments
- Compact design allows convenient storage and handling
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Plug Key Type Laboratory Resistance Box |
| Model Series | MT-1001 Series |
| Product Type | Electrical Resistance Box |
| Resistance Selection | Plug Key Type |
| Contact / Block Material | Brass |
| Enclosure | Wooden Box |
| Available Models | MT-1001A, MT-1001B, MT-1001C, MT-1001D |
| Maximum Total Resistance | 11,110 Ω |
| Operation | Manual |
| Application | Resistance Selection, Circuit Experiments & Electrical Measurements |
Available Models & Resistance Ranges
| Model No. | Range | Total Resistance |
|---|---|---|
| MT-1001A | 1–50 | 110 Ω |
| MT-1001B | 1–500 | 1,110 Ω |
| MT-1001C | 1–1000 | 2,110 Ω |
| MT-1001D | 1–5000 | 11,110 Ω |
Applications
- Electrical resistance experiments
- Circuit testing
- Resistance measurement
- Wheatstone bridge setups
- Electrical circuit demonstrations
- Physics laboratory experiments
- Electrical and electronics laboratory work
- Research and testing applications
- Resistance comparison experiments
Available Variants
Plug Key Resistance Box, Brass Block Resistance Box, Wooden Resistance Box, Laboratory Resistance Box, Physics Resistance Box, Electrical Resistance Box, Plug Type Resistance Box, High Resistance Laboratory Box
SKU System
MT-RB-1001A, MT-RB-1001B, MT-RB-1001C, MT-RB-1001D
FAQs
What is a Plug Key Type Laboratory Resistance Box used for?
A resistance box is used to introduce selected resistance values into an electrical circuit for resistance measurement, circuit testing, bridge experiments, and other laboratory procedures.
How is resistance selected in the MT-1001 Series?
The resistance value is selected using the removable plug-key arrangement provided between the brass contact blocks.
What is the maximum resistance available in this series?
The MT-1001D model provides the highest listed total resistance of 11,110 Ω.
What is the difference between MT-1001A, B, C and D?
The models differ primarily in their resistance ranges and total resistance values. MT-1001A provides 110 Ω total, MT-1001B 1,110 Ω, MT-1001C 2,110 Ω, and MT-1001D 11,110 Ω.
What type of construction is used?
According to the supplied specifications, the Resistance Box features brass blocks and a plug-key arrangement housed in a wooden box.
Can this Resistance Box be used in bridge experiments?
Yes. A selectable resistance box can be incorporated into compatible resistance measurement and bridge circuit experiments where known resistance values are required.
Why Choose Our Products
- Brass block and plug-key construction
- Protective wooden enclosure
- Four resistance configurations available
- Total resistance options up to 11,110 Ω
- Simple and convenient manual operation
- Suitable for various electrical laboratory applications
- Bulk, OEM, institutional, and distributor supply available
