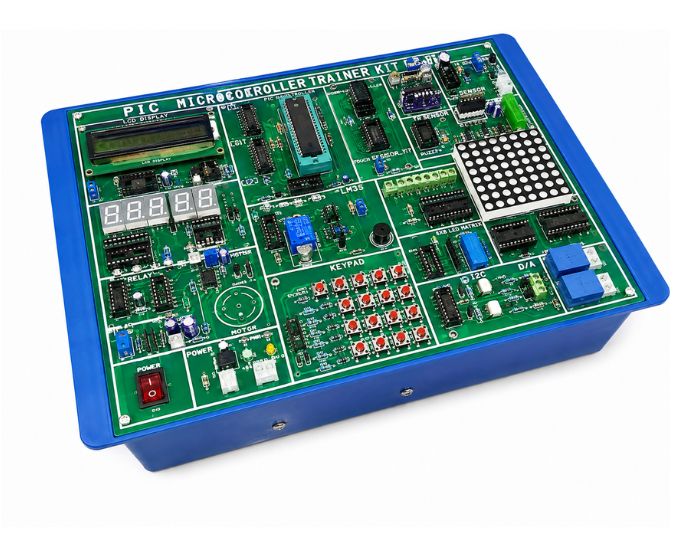

PIC Microcontroller Trainer

The PIC Microcontroller Trainer is a comprehensive embedded development system designed for studying the PIC16F877 microcontroller, embedded programming, and hardware interfacing. Manufactured by Micro Technologies, the trainer provides an ideal platform for engineering students, educators, and professionals to develop practical skills in embedded system design and application development.

The trainer operates on regulated +12V and +5V DC power supplies and functions from a standard 230V AC, 50Hz mains supply, ensuring stable and reliable laboratory operation.

Programming is carried out using a dedicated USB Programmer for PIC Microcontrollers, available separately. The trainer is supplied with software, sample programs, an instruction manual, RS232 cable, and required connection accessories for convenient program development and experimentation.

The development platform integrates numerous onboard peripherals, allowing users to perform a wide range of experiments without requiring additional interface boards. These include an optically coupled relay interface, buzzer, stepper motor driver, LED display, slide switches, multiplexed seven-segment displays, real-time clock, EEPROM, push-button switches, LCD module, analog-to-digital converter, digital-to-analog converter, RS232 serial communication interface, LED matrix display, and a 4 × 4 matrix keyboard.

All experiment points are available through 10-pin FRC male connectors, enabling convenient expansion and interfacing with external modules. The front panel is manufactured using a high-quality insulated printed circuit board with clearly printed symbols and circuit layouts for easy identification.

The trainer is enclosed in a durable ABS plastic cabinet, providing long service life and dependable laboratory performance. It is suitable for engineering colleges, universities, polytechnic institutes, embedded laboratories, technical training centres, and research organisations.

Scope of Learning

• Study of PIC16F877 Microcontroller
• Embedded Programming
• Digital Input and Output Interfacing
• Relay Control Applications
• Motor Control Applications
• LCD Programming
• ADC & DAC Applications
• RTC & EEPROM Interfacing
• Matrix Keyboard Programming
• RS232 Serial Communication
• Embedded System Development

Onboard Applications

• 2-Bit Optically Coupled Relay Interface
• Buzzer
• Stepper Motor Driver
• 8-Bit LED Display
• 8-Bit Slide Switch
• Four Multiplexed Seven-Segment Displays
• DS1307 Real-Time Clock
• 24C64 EEPROM
• 4-Bit Push Switch
• 16 × 2 LCD
• ADC 0808
• DAC 0804
• RS232 Serial Communication Interface
• 8 × 8 LED Matrix Display
• 4 × 4 Matrix Keyboard

Features

• Complete PIC16F877 development platform
• USB programming support
• Multiple onboard peripherals
• Relay and motor control interfaces
• LCD and LED display modules
• RTC and EEPROM support
• ADC and DAC onboard
• Matrix keyboard interface
• RS232 communication
• LED matrix display
• High-quality insulated PCB
• Clearly printed circuit layout
• Fuse protection
• Software and sample programs included
• Durable ABS plastic cabinet
• Long operational life

Benefits

• Simplifies PIC microcontroller programming
• Supports practical embedded learning
• Reduces external interfacing requirements
• Enables real-time embedded applications
• Easy hardware expansion
• Reliable laboratory performance
• Suitable for engineering education
• Excellent teaching aid
• Compact all-in-one design
• Low maintenance
• Long service life
• Cost-effective embedded training solution

Technical Specifications

Items Supplied

• PIC Microcontroller Trainer
• Instruction Manual
• CD Containing Software and Programs
• RS232 Cable
• 10-Pin FRC Male Connectors
• 10-Pin FRC Cable

Optional Accessories

• USB Programmer for PIC Microcontroller

Applications

• Embedded System Laboratories
• PIC Microcontroller Training
• Electronics Engineering Colleges
• Universities
• Polytechnic Institutes
• Technical Training Centres
• Industrial Training Institutes
• Research Laboratories
• Student Development Projects
• Automation Training
• Robotics Applications
• Embedded Control Systems

SKU System

MT-PIC-001

FAQs

What is the PIC Microcontroller Trainer used for?

It is used for learning PIC16F877 microcontroller programming, embedded system development, hardware interfacing, serial communication, and peripheral control.

Which microcontroller does the trainer support?

The trainer is designed for the PIC16F877 microcontroller.

Which onboard peripherals are included?

The trainer includes:

• Relay Interface
• Stepper Motor Driver
• LED Display
• Seven-Segment Display
• LCD
• RTC
• EEPROM
• ADC
• DAC
• RS232 Interface
• LED Matrix
• Matrix Keyboard

Is a programmer supplied with the trainer?

The USB Programmer for PIC Microcontroller is available separately as an optional accessory.

Does the trainer support analog interfacing?

Yes. It includes ADC 0808 and DAC 0804 for analog-to-digital and digital-to-analog conversion experiments.

What accessories are supplied with the trainer?

The trainer is supplied with:

• Instruction Manual
• Software & Program CD
• RS232 Cable
• 10-Pin FRC Male Connectors
• 10-Pin FRC Cable

Is this trainer suitable for engineering laboratories?

Yes. It is ideal for engineering colleges, universities, polytechnic institutes, embedded laboratories, research organisations, and technical training centres.

Can the PIC Microcontroller Trainer be supplied in bulk?

Yes. Micro Technologies supplies PIC Microcontroller Trainers to educational institutions, government laboratories, research organisations, OEM projects, distributors, and bulk procurement.

Why Choose Our Products

• Complete PIC development platform
• Multiple onboard peripheral interfaces
• High-quality insulated PCB construction
• Reliable laboratory performance
• Easy hardware expansion
• OEM and institutional supply available
• Competitive B2B pricing
• Strict quality inspection
• Technical support
• Excellent after-sales service
• Long operational life
• Trusted laboratory equipment manufacturer
