Parity Generator and Checker Trainer
Product Specification Sheet
Parity Generator and Checker Trainer
Model Number: MT-E132

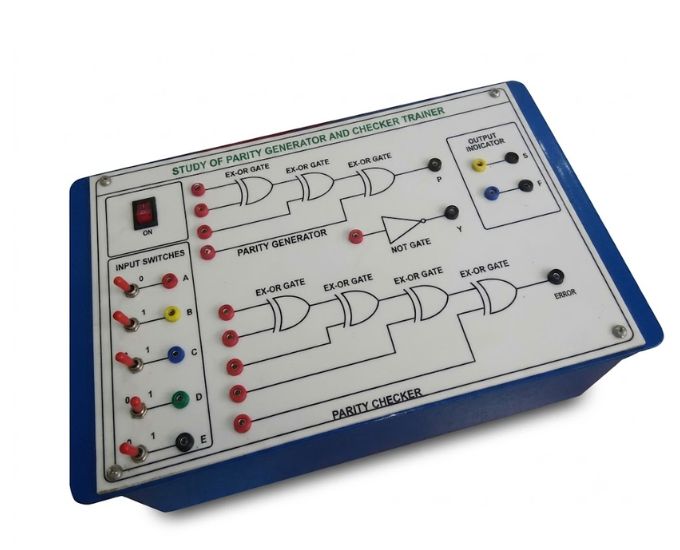

The Parity Generator and Checker Trainer is a professional laboratory training system designed for studying parity generation, parity checking, and error detection techniques used in digital communication systems. Manufactured by Micro Technologies, this trainer incorporates IC 7486 XOR gates, logic input switches, buffered output indicators, and practical parity experiments, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The Parity Generator and Checker Trainer is specially designed to provide students with practical knowledge of parity generation and error detection techniques through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand one of the most important methods of detecting transmission errors in digital communication systems, computer architecture, embedded systems, and data communication networks.
The trainer allows students to study both Parity Generation and Parity Checking using exclusive-OR (XOR) logic. Learners can verify even parity and odd parity generation, perform parity verification on received data, and understand how parity bits are used to detect transmission errors in digital systems.
The trainer incorporates onboard IC 7486 Quad XOR Gates, enabling implementation of parity generator and parity checker circuits on a single platform. Students can analyze XOR logic, verify parity conditions, and observe the relationship between input data and generated parity bits through practical experimentation.
Five independent TTL logic input switches allow users to apply HIGH and LOW logic levels to the circuit. Each input includes an LED indicator for easy visualization of logic status. Two independent buffered logic level indicators display HIGH and LOW output conditions, allowing students to verify parity outputs and error detection results accurately.
The trainer operates from a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of the onboard digital integrated circuits. Carefully selected electronic components provide stable performance, accurate logic operation, and long operational life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and symbols for easy identification of logic circuits and experimental terminals. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed inside a rugged ABS plastic cabinet designed for continuous educational use. Compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, and digital electronics training.
The Parity Generator and Checker Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, communication laboratories, computer architecture laboratories, embedded systems laboratories, and research institutions.
Every Parity Generator and Checker Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of parity generation
- Study of parity checking
- Error detection experiments
- Built-in IC 7486 Quad XOR Gates
- Even parity generation
- Odd parity generation
- Five independent TTL logic inputs
- LED logic input indicators
- Two buffered HIGH/LOW logic indicators
- XOR logic verification
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Clearly printed circuit diagrams
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates parity generation and checking clearly
- Enhances understanding of digital communication concepts
- Supports digital electronics laboratory education
- Simplifies error detection experiments
- Easy laboratory setup
- Safe low-voltage operation
- Improves understanding of XOR gate applications
- Provides practical communication system knowledge
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Strengthens practical digital electronics skills
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Parity Generator and Checker Trainer |
| Main IC | IC 7486 Quad XOR Gate |
| Experiments | Parity Generator & Parity Checker |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Inputs | Five Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Logic Indicators | Two Buffered HIGH/LOW Logic Indicators |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Communication Laboratories
- Computer Architecture Laboratories
- Embedded Systems Laboratories
- Electronics Laboratories
- Diploma Colleges
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-PGC-001
FAQs
What is the Parity Generator and Checker Trainer used for?
It is used to study parity generation, parity checking, and error detection techniques used in digital communication and computer systems.
Which IC is provided on the trainer?
The trainer incorporates the IC 7486 Quad XOR Gate.
Which experiments can be performed?
Students can study:
- Even Parity Generation
- Odd Parity Generation
- Parity Checking
- Error Detection
- XOR Gate Operation
- Digital Communication Logic
How many logic inputs are available?
The trainer provides five independent TTL logic input switches, each with LED indication.
How many output indicators are available?
The trainer includes two buffered HIGH/LOW logic output indicators for observing parity results.
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the Parity Generator and Checker Trainer be supplied in bulk?
Yes. Micro Technologies supplies Parity Generator and Checker Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
