Parallelogram of Forces Apparatus
Product Specification Sheet
Parallelogram of Forces Apparatus
Model Number: MTM-17

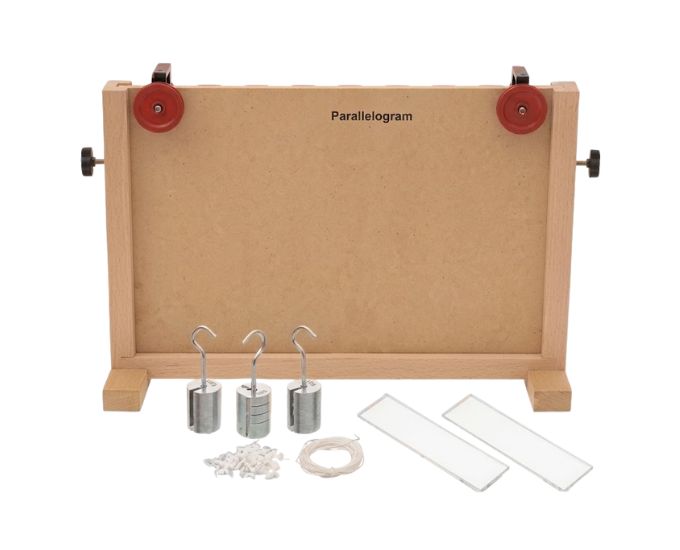

The Parallelogram of Forces Apparatus from Micro Technologies is designed for practical investigation and verification of the parallelogram law of forces. It features a substantial wooden stand supplied with two pulley sets, three sets of slotted weights, two mirror strips and cords, providing a complete arrangement for studying concurrent forces, resultant force and equilibrium.
Product Specification
The Parallelogram of Forces Apparatus from Micro Technologies is a mechanics laboratory apparatus designed for practical experiments involving the composition and equilibrium of forces. It provides a convenient setup for demonstrating how two forces acting simultaneously at a point can be represented by the adjacent sides of a parallelogram and related to their resultant.
The apparatus is similar in general experimental purpose to a wall-type force arrangement but is intended for laboratory setups where working space may be limited. Its compact configuration provides a convenient alternative for conducting force experiments without requiring a large wall-mounted board.
A substantial wooden stand forms the main supporting structure of the apparatus. The stand provides a stable arrangement for mounting the experimental components and conducting repeated mechanics practicals.
The working arrangement incorporates a 12 mm thick plywood piece measuring approximately 45 × 30 cm, providing a suitable surface for establishing and observing the force system.
The apparatus is supplied with two sets of two pulleys, providing a total of four pulleys. These pulleys guide the cords and enable forces to be applied in selected directions during the experiment.
Three sets of slotted weights are included for applying known loads. Each set consists of one 50 g mass × 5, one 5 g mass × 5 and one 1 g mass × 5, allowing the applied force to be adjusted in convenient increments.
The supplied slotted masses make it possible to vary the magnitude of individual forces systematically. This allows different equilibrium conditions to be established and compared during laboratory observations.
Two mirror strips are supplied with the apparatus. These can assist with alignment and observation during suitable experimental procedures, helping reduce viewing and positioning errors when establishing the force arrangement.
Cords are also supplied to connect the loading arrangements through the pulleys. By varying the masses and pulley positions, different combinations of forces can be created.
The apparatus is primarily used for verifying the parallelogram law of forces. Two known forces can be applied at an angle, and the resulting equilibrium condition can be investigated to determine their combined effect.
It is also useful for understanding vector addition, resultant force and concurrent-force equilibrium. Experimental observations can be compared with graphical or mathematical vector calculations.
The apparatus provides a physical demonstration of concepts that are otherwise represented primarily through vector diagrams. This makes it useful for connecting theoretical mechanics with practical laboratory observations.
By changing the magnitude and direction of the applied forces, multiple experimental configurations can be produced using the same apparatus.
Manufactured and supplied by Micro Technologies, the Parallelogram of Forces Apparatus is suitable for physics laboratories, mechanics laboratories and scientific facilities requiring practical equipment for force and vector experiments.
Features
- Designed for parallelogram law of forces
- Substantial wooden stand
- Compact laboratory configuration
- Approx. 12 mm thick plywood working section
- Working section approximately 45 × 30 cm
- Two sets of two pulleys
- Four pulleys in total
- Three sets of slotted weights
- Multiple weight denominations
- Two mirror strips supplied
- Cords included
- Adjustable experimental loading
- Suitable for concurrent-force investigations
- Useful for resultant-force demonstrations
- Suitable where laboratory space is limited
Benefits
- Provides practical verification of the parallelogram law
- Compact design suits laboratories with limited space
- Multiple pulleys allow different force directions
- Included slotted masses permit controlled load adjustment
- Small mass increments enable convenient experimental variation
- Mirror strips assist suitable alignment procedures
- Supports vector addition demonstrations
- Helps investigate resultant and equilibrium forces
- Connects graphical force concepts with practical observations
- Complete experimental accessories reduce additional setup requirements
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Parallelogram of Forces Apparatus |
| Product Type | Mechanics / Force Apparatus |
| Main Support | Wooden Stand |
| Working Section | Plywood |
| Plywood Thickness | Approx. 12 mm |
| Working Section Size | Approx. 45 × 30 cm |
| Pulley Arrangement | 2 Sets of 2 Pulleys |
| Total Pulleys | 4 |
| Slotted Weight Sets | 3 Sets |
| Mirror Strips | 2 |
| Cords | Supplied |
| Primary Experiment | Parallelogram Law of Forces |
| Application | Vector / Resultant / Equilibrium Studies |
| Use | Physics / Mechanics Laboratory |
Slotted Weight Configuration
Each of the three weight sets includes:
| Mass | Quantity per Set |
|---|---|
| 50 g | 5 |
| 5 g | 5 |
| 1 g | 5 |
This provides convenient adjustment of the applied loads during different force experiments.
Applications
- Parallelogram law of forces
- Composition of forces
- Vector addition experiments
- Resultant force investigations
- Equilibrium of concurrent forces
- Force direction studies
- Static equilibrium experiments
- Force magnitude investigations
- Mechanics laboratory practicals
- Vector mechanics demonstrations
- Applied force experiments
- Physics laboratory experiments
Available Variants
Parallelogram of Forces Apparatus, Force Parallelogram Apparatus, Parallelogram Law Apparatus, Composition of Forces Apparatus, Vector Force Apparatus, Resultant Force Apparatus, Laboratory Force Equilibrium Apparatus, Pulley Force Apparatus
SKU System
MT-PFA-Series
FAQs
What is a Parallelogram of Forces Apparatus used for?
It is primarily used for practical demonstration and verification of the parallelogram law of forces, vector addition and equilibrium of concurrent forces.
What is the size of the working section?
The plywood working section measures approximately 45 × 30 cm and is about 12 mm thick.
How many pulleys are supplied?
The apparatus is supplied with two sets of two pulleys, providing four pulleys in total.
Are slotted weights included?
Yes. Three sets of slotted weights are supplied with the apparatus.
What weights are provided in each set?
Each set contains five 50 g masses, five 5 g masses and five 1 g masses.
Are mirror strips included?
Yes. The apparatus is supplied with two mirror strips for suitable alignment and observational requirements.
Are cords supplied with the apparatus?
Yes. Suitable cords are included for establishing the experimental force arrangement.
Can it be used where laboratory space is limited?
Yes. Its compact stand-type arrangement makes it particularly suitable for laboratories where a larger wall-mounted force board may not be convenient.
Can the apparatus demonstrate resultant force?
Yes. It can be used to investigate the resultant of two concurrent forces and compare experimental observations with vector calculations.
Can different force combinations be created?
Yes. By varying the pulley arrangement and slotted masses, different magnitudes and directions of force can be established for experimental study.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Compact laboratory-friendly configuration
- Substantial wooden stand
- Four-pulley experimental arrangement
- Three complete slotted-weight sets
- Mirror strips and cords included
- Suitable for vector and equilibrium experiments
- Designed for repeated laboratory practicals
- Institutional and bulk procurement available
- OEM supply requirements supported
Call to Action
Bring vector mechanics concepts into practical laboratory study with the Parallelogram of Forces Apparatus from Micro Technologies. Ideal for demonstrating force composition, resultant and equilibrium, this complete setup is available for institutional procurement, physics laboratory projects, bulk supply and OEM requirements. Contact us for current pricing and customized quotations.
