Motor Driven Newton’s Color Disc
Product Specification Sheet
Motor Driven Newton’s Color Disc
Model Number: MTO-37

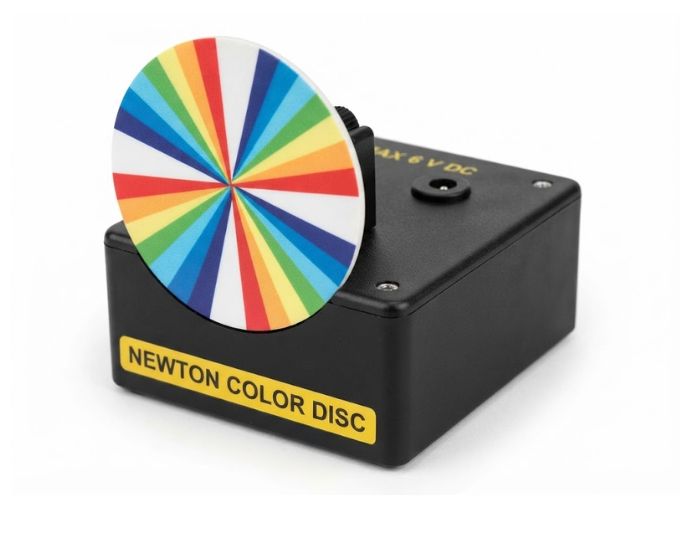

The Motor Driven Newton’s Color Disc is a compact optical apparatus used to demonstrate the visual mixing of spectrum colors during rapid rotation. Micro Technologies supplies the unit with an approximately 75 mm diameter Newton color disc mounted directly on the axle of a small electric motor. The complete mechanism is housed in a durable plastic case for convenient handling and protection of the drive assembly. When operated at sufficient speed, the individual colored sectors visually merge and produce a lighter, approximately whitish appearance. Four 4 mm sockets are provided for electrical connections, allowing convenient integration with a compatible laboratory power source. Its motorized operation provides smooth, repeatable rotation for optics and color-mixing demonstrations.
Product Specification
The Motor Driven Newton’s Color Disc provides a convenient motorized method for demonstrating the visual combination of spectrum colors. Instead of requiring manual rotation, the color disc is mounted directly onto the axle of a compact motor, providing consistent rotational movement during experiments.
The Newton color disc has an approximate diameter of 75 mm and contains multiple colored sectors representing the visible spectrum. At low or stationary conditions, these individual colors can be observed separately. As the motor increases the rotational speed, the sectors pass rapidly through the observer’s field of vision and begin to visually blend.
Micro Technologies supplies the Motor Driven Newton’s Color Disc in a compact plastic housing. This enclosure supports the motor assembly and provides a neat, self-contained arrangement that is convenient to place on a laboratory workbench. Housing the drive mechanism also helps protect the internal motor from routine handling.
Four 4 mm sockets are incorporated for electrical connections. These sockets provide a convenient interface for connection to a suitable compatible laboratory power supply. The electrical arrangement eliminates continuous manual operation and allows the disc to maintain more uniform rotation during demonstrations.
When the disc reaches sufficient rotational speed, the separate colored sectors become difficult to distinguish individually. Due to temporal integration by the human visual system, their combined appearance becomes substantially lighter and may appear approximately white or pale grey depending on the pigments, illumination, viewing conditions, and rotational speed.
The motorized configuration is particularly useful when repeatable demonstrations are required. With its compact housing, 75 mm color disc, direct motor drive, and convenient electrical connections, the Motor Driven Newton’s Color Disc provides a practical and durable solution for light, color, and optics laboratory experiments.
Features
- Motor-driven Newton color disc
- Approximate disc diameter of 75 mm
- Disc mounted directly on motor axle
- Compact electric motor for continuous rotation
- Durable plastic housing
- Four 4 mm electrical connection sockets
- Consistent rotational movement
- Clearly divided spectrum color sectors
- Compact bench-top construction
- Suitable for repeated color-mixing experiments
Benefits
- Motorized operation eliminates continuous manual rotation
- Provides consistent speed for repeatable demonstrations
- Compact housing protects the internal drive mechanism
- Simple electrical connections make setup convenient
- Clearly demonstrates visual color mixing
- Low-maintenance construction supports long service life
- Practical choice for bulk laboratory procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Motor Driven Newton’s Color Disc |
| Internal Model No. | MT-30702M |
| Product Type | Motorized Color Demonstration Apparatus |
| Disc Diameter | Approx. 75 mm |
| Disc Type | Multi-color Newton disc |
| Drive System | Electric motor |
| Disc Mounting | Directly on motor axle |
| Housing Material | Plastic |
| Electrical Connections | 4 × 4 mm sockets |
| Operation | Motor driven |
| Speed | Suitable for visual color blending |
| Accuracy / Tolerance | Standard laboratory manufacturing tolerance |
| Calibration Standard | Not normally required |
| Stopper Type | Not applicable |
| Color | Multi-color spectrum disc |
| Usage / Application | Color mixing, white light and optics experiments |
| Compliance Standard | Laboratory-grade electrical and mechanical construction |
Available Variants
- MT-30702M – Standard Motor Driven Newton’s Color Disc
- Motorized Newton Disc with 75 mm color wheel
- Newton Color Disc with plastic housing
- Motor Driven Color Mixing Apparatus
- Customized configuration for bulk requirements
SKU System
- MT-NCD-M75 – Motor Driven 75 mm Newton Disc
- MT-NCD-MTR – Motorized Newton Color Disc
- MT-NCD-4S – Four-Socket Configuration
- MT-NCD-OPT – Optics Experiment Configuration
- MT-NCD-CUS – Customized Configuration
FAQs
What is a Motor Driven Newton’s Color Disc used for?
It is used to demonstrate the visual mixing of spectrum colors during rapid rotation. The experiment helps illustrate concepts associated with color perception and the composition of white light.
What is the diameter of the Newton color disc?
The standard color disc has an approximate diameter of 75 mm. Its compact size is suitable for clear bench-top demonstrations.
How is the color disc rotated?
The disc is mounted directly on the axle of a small electric motor. When the motor operates, it rotates the disc continuously without requiring manual turning.
Why does the rotating disc appear whitish?
At sufficient speed, the eye cannot clearly distinguish the rapidly changing colored sectors. Their visual effects combine, producing an approximately white or pale appearance.
How are electrical connections made?
The apparatus is fitted with four 4 mm sockets. These allow connection to a suitable compatible laboratory electrical supply using appropriate leads.
Does the apparatus require calibration?
Routine calibration is generally unnecessary. The disc should remain centered on the motor axle and rotate smoothly for consistent demonstrations.
What is the housing made from?
The motor and supporting arrangement are enclosed in a plastic case. This provides a compact construction and helps protect the drive mechanism during routine use.
How should the apparatus be maintained?
Keep the disc and housing clean and dry. Avoid excessive force on the motor shaft and periodically inspect the sockets, connections, and disc alignment.
Can Motor Driven Newton’s Color Discs be ordered in bulk?
Yes. Bulk quantities can be supplied for physics laboratories, optics laboratories, universities, colleges, research facilities, distributors, and institutional procurement.
Can the apparatus be customized?
Certain disc, housing, connection, and packaging specifications may be customized for quantity requirements depending on technical feasibility.
Why Choose Our Products
- Consistent motor-driven rotation
- Compact 75 mm spectrum color disc
- Convenient 4 mm electrical connections
- Durable and quality-checked construction
- Bulk supply capability for laboratories and distributors
Call to Action
Looking for Motor Driven Newton’s Color Discs for light, color, and optics experiments? Contact Micro Technologies for competitive quotations, bulk orders, institutional procurement, distributor inquiries, and customized laboratory equipment requirements.
