Monocular Laboratory Microscope with Coaxial Fine Focusing
Product Specification Sheet

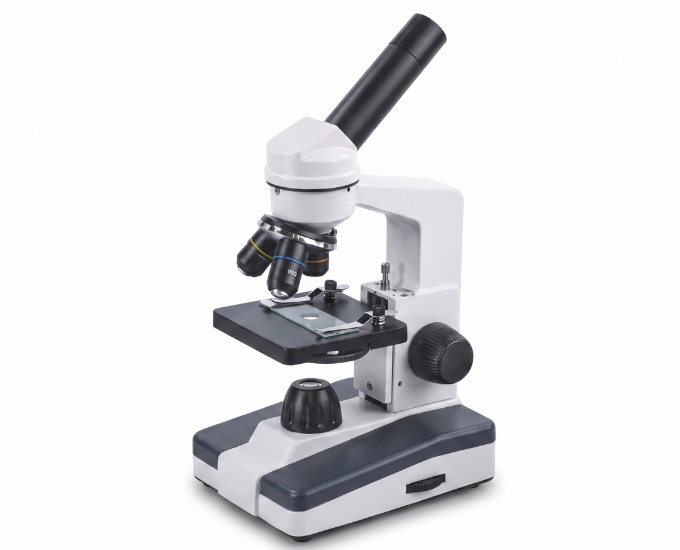

Monocular Laboratory Microscope with Coaxial Fine Focusing
Model Number: MTM-034
The Monocular Laboratory Microscope from Micro Technologies is designed for educational institutions, biology laboratories, and research facilities. Featuring a 45° inclined, 360° rotatable viewing head, precision coaxial coarse and fine focusing, and optional LED illumination, it provides clear microscopic observation with reliable performance for routine laboratory applications.
Product Specification
The Monocular Laboratory Microscope with Coaxial Fine Focusing is a dependable optical instrument designed for biology education, laboratory analysis, and routine scientific observation. Manufactured using laboratory-grade materials and precision optics, it delivers excellent image quality and long-lasting performance for schools, colleges, universities, diagnostic laboratories, and research institutions.
The microscope features a 45° inclined, 360° rotatable monocular viewing head fitted with a WF10X wide-field eyepiece, providing comfortable observation from different viewing positions. It is equipped with 4X, 10X, and 40X(S) objective lenses for clear and detailed examination of biological specimens, microorganisms, plant tissues, and prepared slides.
A 110 × 110 mm plain stage with slide clips securely holds microscope slides during observation. The 0.65 single-lens condenser with disc diaphragm ensures proper light distribution and improved image contrast for accurate specimen analysis.
For smooth operation, the microscope incorporates a coaxial coarse and fine focusing system, enabling rapid focusing followed by precise image adjustment. Standard illumination is provided through an incandescent lamp (AC 220V/20W or AC 110V/20W), while an LED illumination system is available as an optional upgrade for improved energy efficiency and longer service life.
Designed for continuous laboratory use, this microscope is ideal for schools, colleges, universities, hospitals, biology laboratories, and research centers. Micro Technologies supplies this microscope for institutional procurement, laboratory modernization projects, OEM manufacturing, and distributor networks.
Features
- 45° inclined, 360° rotatable monocular head
- WF10X wide-field eyepiece
- 4X, 10X & 40X(S) objective lenses
- 110 × 110 mm plain stage with slide clips
- 0.65 single-lens condenser with disc diaphragm
- Coaxial coarse and fine focusing mechanism
- Standard incandescent illumination
- Optional LED illumination
- Durable laboratory-grade construction
- Suitable for educational and laboratory applications
Benefits
- Produces clear and high-contrast microscopic images
- Smooth coaxial focusing ensures accurate observation
- Comfortable viewing for extended laboratory sessions
- Optional LED illumination reduces maintenance costs
- Rugged construction ensures long service life
- Easy to operate for students and professionals
- Ideal for routine laboratory and educational use
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Monocular Laboratory Microscope with Coaxial Fine Focusing |
| Model No. | MTM-034 |
| Product Type | Biological Laboratory Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S) |
| Stage | Plain Stage with Clips, 110 × 110 mm |
| Condenser | 0.65 Single Lens Condenser with Disc Diaphragm |
| Focusing System | Coaxial Coarse & Fine Focusing |
| Standard Illumination | Incandescent Lamp (AC 220V/20W or AC 110V/20W) |
| Optional Illumination | LED |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Schools, Colleges, Biology Laboratories, Clinical Laboratories & Research Institutes |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Monocular Biological Microscope
- LED Laboratory Microscope
- Educational Compound Microscope
- Research Laboratory Microscope
- Clinical Biology Microscope
FAQs
Does this microscope have fine focusing?
Yes. It features a coaxial coarse and fine focusing mechanism for smooth and accurate focusing.
What objectives are included?
The microscope is equipped with 4X, 10X, and 40X(S) objective lenses for routine biological observations.
Can LED illumination be provided?
Yes. LED illumination is available as an optional configuration, while the standard model uses an incandescent lamp.
Is this microscope suitable for educational laboratories?
Yes. It is widely used in schools, colleges, universities, biology laboratories, and training institutes.
What type of stage does the microscope have?
It includes a 110 × 110 mm plain stage with slide clips for secure specimen placement.
Do you supply this microscope in bulk?
Yes. Micro Technologies supplies this microscope in bulk for educational institutions, laboratories, distributors, OEM partners, and government organizations.
Why Choose Our Products
- Premium laboratory-grade optical instruments
- Precision-engineered for reliable performance
- Durable construction for long-term use
- Competitive pricing for institutional procurement
- Trusted technical support and dependable after-sales service
Call to Action
Choose Micro Technologies for reliable laboratory microscopy solutions. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, or a customized quotation for our professional microscope range.
