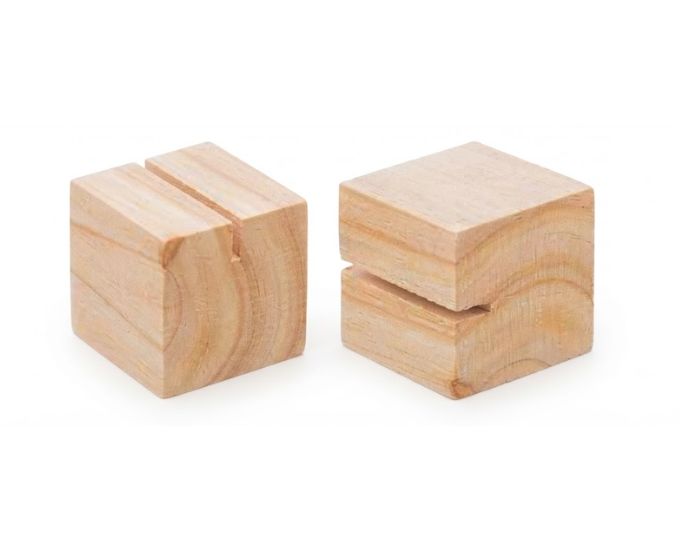

Mirror Support Block
Model Number: MTO-03
The Mirror Support Block is a compact wooden laboratory accessory used to hold rectangular mirrors securely in an upright position during optics experiments. Micro Technologies supplies the block in approximately 50 × 50 × 50 mm dimensions with a precisely formed slot for inserting compatible plane mirrors. The solid wooden construction provides a stable base while keeping the mirror conveniently positioned for reflection, ray tracing, image formation, and geometrical optics investigations. Its simple configuration requires no clamps, screws, or complicated adjustments, allowing mirrors to be inserted and removed quickly. The reusable support block is suitable for physics laboratories, universities, colleges, research facilities, optics experiment kits, scientific equipment distributors, and bulk institutional procurement.
Product Specification
The Mirror Support Block is a simple and durable laboratory accessory used to position rectangular mirrors during optical experiments. Its solid wooden construction provides a stable supporting base, while the integrated slot keeps a compatible mirror upright without requiring additional clamps, screws, or mounting hardware.
The block measures approximately 50 × 50 × 50 mm, giving it a compact cubic form that provides adequate support while occupying minimal bench space. A straight slot is formed across the upper section to receive a rectangular glass mirror. Once inserted, the mirror remains conveniently positioned for experiments requiring a fixed reflective surface.
Micro Technologies supplies the Mirror Support Block for use with plane mirrors and other compatible rectangular optical components. The holder can be incorporated into investigations involving reflection of light, ray tracing, image formation, angles of incidence and reflection, geometrical optics, and related laboratory setups.
Wood is well suited to this type of accessory because it provides a lightweight yet rigid support without introducing a complicated mechanical structure. The smooth surfaces make the block convenient to handle, while the absence of moving components reduces maintenance requirements and provides dependable long-term usability.
The Mirror Support Block can be used individually or as part of a larger optics kit containing mirrors, ray boxes, screens, lenses, pins, and other optical accessories. Its straightforward construction also makes setup and component replacement quick during repeated laboratory work.
For institutions purchasing optics accessories in quantity, the compact dimensions, reusable wooden construction, simple mirror insertion, and low maintenance requirements provide practical procurement value. Custom slot dimensions may also be considered where different mirror thicknesses or sizes need to be accommodated.
Features
- Solid wooden construction for stable mirror support
- Approximate dimensions of 50 × 50 × 50 mm
- Integrated slot for rectangular mirrors
- Holds compatible mirrors in an upright position
- No clamps or screws required for standard operation
- Compact footprint for convenient bench-top placement
- Suitable for plane mirror and reflection experiments
- Smooth construction for convenient handling
- Reusable design with no moving components
- Compatible with various laboratory optics setups
Benefits
- Keeps rectangular mirrors securely positioned during experiments
- Simplifies setup for reflection and ray-tracing investigations
- Compact dimensions require minimal laboratory space
- Wooden construction provides a practical balance of stability and weight
- No mechanical adjustment reduces maintenance requirements
- Reusable design helps lower recurring accessory costs
- Suitable for bulk procurement and optics kit assembly
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Mirror Support Block |
| Internal Model No. | MT-30030 |
| Product Type | Optical Mirror Support |
| Material | Wood |
| Shape | Cubical block |
| Dimensions | Approx. 50 × 50 × 50 mm |
| Holding Arrangement | Integrated top slot |
| Mirror Compatibility | Rectangular plane mirrors |
| Mounting | Free-standing |
| Capacity | One compatible mirror |
| Accuracy / Tolerance | Laboratory-grade dimensional consistency |
| Calibration Standard | Not required |
| Stopper Type | Not applicable |
| Color / Finish | Natural wooden finish |
| Usage / Application | Reflection, ray tracing and optics experiments |
| Compliance Standard | Laboratory-grade manufacturing quality |
Available Variants
- Standard 50 × 50 × 50 mm Mirror Support Block
- Mirror Support Block with Narrow Slot
- Mirror Support Block with Wide Slot
- Mirror Support Block with Plane Mirror
- Custom-size wooden support block
SKU System
- MT-MSB-5050 – Standard 50 × 50 × 50 mm Block
- MT-MSB-NS – Narrow-Slot Mirror Block
- MT-MSB-WS – Wide-Slot Mirror Block
- MT-MSB-PM – Support Block with Plane Mirror
- MT-MSB-CUS – Customized Mirror Support Block
FAQs
What is a Mirror Support Block used for?
A Mirror Support Block is used to hold a rectangular mirror upright during laboratory optics experiments. It provides a stable position for reflection, ray tracing, image formation, and related investigations.
What are the dimensions of the block?
The standard wooden block measures approximately 50 × 50 × 50 mm. Its compact cubic construction provides a stable base while occupying relatively little bench space.
What type of mirror can be used with the block?
The slot is intended to accept compatible rectangular mirrors, including plane glass mirrors commonly used in laboratory optics experiments. Mirror thickness should correspond to the slot dimensions.
How is the mirror secured in the holder?
The rectangular mirror is inserted directly into the slot formed in the wooden block. The slot supports the mirror without requiring a separate clamp or fastening mechanism.
Does the Mirror Support Block require calibration?
No. It is a mechanical support accessory and contains no measuring components. Correct mirror positioning and alignment should simply be checked according to the experimental setup.
Is the wooden block durable?
Yes. Solid wooden construction provides good durability for routine laboratory handling. Keeping the block dry and protecting it from excessive impact helps maintain its dimensions and surface condition.
Can it be used for reflection experiments?
Yes. The block is particularly useful for holding plane mirrors during experiments involving the laws of reflection, incident and reflected rays, ray tracing, and image formation.
What maintenance is required?
Keep the block clean and dry and periodically inspect the slot for damage or excessive wear. Avoid forcing mirrors that are thicker than the slot, as this may damage either the glass or wooden support.
Can Mirror Support Blocks be ordered in bulk?
Yes. Bulk quantities can be supplied for laboratories, universities, colleges, optics kits, scientific equipment distributors, and institutional procurement requirements.
Can the slot size be customized?
Custom slot widths may be considered for specific mirror thicknesses or optical components. Required dimensions and quantities should be provided when requesting a quotation.
Can the block be supplied with a plane mirror?
Yes, a compatible plane mirror can be included as part of a complete configuration depending on the required mirror dimensions and order specifications.
How are the blocks packed for bulk orders?
The wooden blocks can be securely packed to protect their corners, surfaces, and slots during transportation. When supplied with mirrors, the glass components are separately protected against scratching and breakage.
Why Choose Our Products
- Solid wooden construction for stable optical setups
- Consistent dimensions and properly formed mirror slots
- Simple configuration with no complicated moving components
- Reusable construction for dependable long-term laboratory value
- Bulk supply capability for optics kits, institutions, and distributors
Call to Action
Looking for Mirror Support Blocks for plane mirror experiments, optics kits, or institutional procurement? Contact Micro Technologies for competitive quotations, bulk orders, distributor inquiries, mirror-and-holder combinations, and customized slot requirements. Share your required quantity and mirror dimensions to receive suitable pricing and delivery details.
