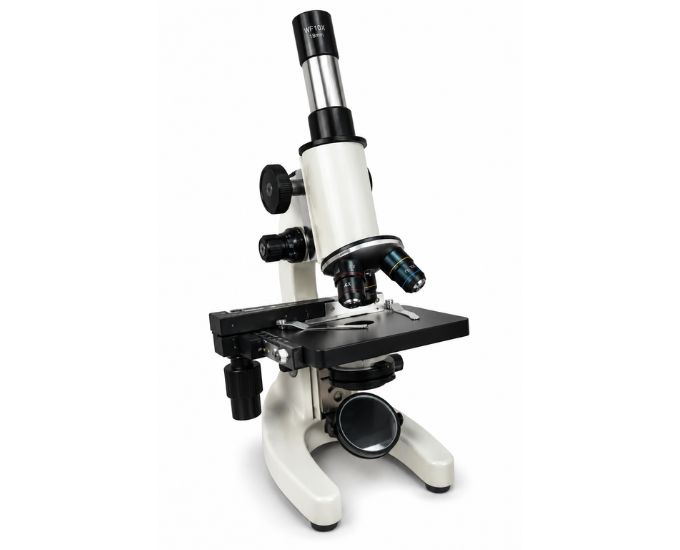

Medical Microscope (MT-256 Series)
Product Specification Sheet
Medical Microscope (MT-256 Series)
Model Number: MTMM-01
The Medical Microscope (MT-256 Series) is a precision compound microscope designed for clinical diagnostics, biological studies, pathology, microbiology, and educational laboratories. Manufactured by Micro Technologies, it features a sturdy aluminum body, coaxial mechanical stage, achromatic objectives up to 100x, coarse and fine focusing, Abbe condenser with iris diaphragm, and mirror illumination for clear and reliable specimen observation.
Product Specification
The Medical Microscope (MT-256 Series) is a high-quality laboratory microscope engineered for routine medical, biological, and research applications. Manufactured by Micro Technologies, this microscope delivers exceptional optical performance and mechanical precision, making it ideal for hospitals, pathology laboratories, microbiology departments, medical colleges, universities, and research institutes.
The microscope is constructed with a sturdy die-cast aluminum body that can be inclined up to 90°, providing excellent stability and comfortable viewing during prolonged laboratory use. Its durable construction ensures long service life and dependable operation in demanding laboratory environments.
The 120 × 120 mm square mechanical stage is equipped with a coaxial low-drive mechanical stage providing X & Y movement with graduated scales on both axes. This allows precise specimen positioning for detailed microscopic examination.
The triple revolving nosepiece features smooth click-stop operation, enabling quick and accurate objective selection. The microscope incorporates coarse and fine focusing controls with graduated scale, allowing precise image focusing for routine and advanced observations.
The optical system includes parfocal achromatic objectives of 10x, 45x, and 100x (oil immersion) along with a 10x Huygenian eyepiece, delivering bright, sharp, and distortion-free images across multiple magnification levels.
The sub-stage Abbe condenser (N.A. 1.25) with a movable iris diaphragm enhances illumination control and image contrast, making the microscope suitable for observing bacteria, blood cells, microorganisms, tissues, and other biological specimens. Illumination is provided through a reflecting mirror, ensuring reliable operation in laboratory environments.
Manufactured by Micro Technologies, every Medical Microscope undergoes stringent quality inspection to ensure dependable optical performance, mechanical accuracy, and long operational life. The MT-256 Series is widely used in hospitals, diagnostic centres, pathology laboratories, microbiology laboratories, medical colleges, universities, research institutes, and educational institutions.
Features
- Precision medical compound microscope
- Heavy-duty die-cast aluminum body
- Body inclinable up to 90°
- 120 × 120 mm mechanical stage
- Coaxial low-drive X-Y mechanical stage
- Graduated stage movement
- Triple revolving nosepiece
- Coarse and fine focusing with scale
- Parfocal achromatic objectives
- 10x, 45x & 100x (oil immersion) objectives
- 10x Huygenian eyepiece
- Abbe condenser (N.A. 1.25)
- Movable iris diaphragm
- Reflecting mirror illumination
- Long operational life
Benefits
- Clear and high-resolution specimen observation
- Accurate X-Y specimen positioning
- Smooth objective selection
- Precise focusing control
- Suitable for clinical and research applications
- Durable laboratory construction
- Reliable optical performance
- Easy maintenance
- Comfortable long-term use
- Long service life
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Medical Microscope (MT-256 Series) |
| Product Type | Compound Medical Microscope |
| Body | Die-Cast Aluminum, Inclination up to 90° |
| Stage | 120 × 120 mm Mechanical Stage |
| Stage Movement | Coaxial Low Drive X-Y with Graduations |
| Nosepiece | Triple Revolving with Click Stops |
| Focusing | Coarse & Fine Adjustment with Scale |
| Condenser | Abbe N.A. 1.25 |
| Diaphragm | Movable Iris Diaphragm |
| Objectives | Achromatic 10x, 45x & 100x (Oil Immersion) |
| Eyepiece | 10x Huygenian |
| Illumination | Reflecting Mirror |
| Applications | Clinical Diagnostics, Pathology, Microbiology, Biology, Medical Education |
Available Models
| Model | Description |
|---|---|
| MT-256(A) | Medical Microscope |
Optional Accessories
- LED Illumination Unit
- Mechanical Stage Upgrade
- Wide Field Eyepieces
- Additional Achromatic Objectives
- Immersion Oil
- Dust Cover
- Wooden Carrying Case
- Prepared Slide Set
SKU System
- MT-256-A
FAQs
What is the MT-256 Medical Microscope used for?
The MT-256 Series is designed for clinical diagnostics, microbiology, pathology, biology, histology, medical education, and routine laboratory examinations.
What magnification does the microscope provide?
The microscope is supplied with 10x, 45x, and 100x (oil immersion) achromatic objectives along with a 10x Huygenian eyepiece.
Does the microscope have a mechanical stage?
Yes. It features a 120 × 120 mm coaxial low-drive mechanical stage with precise X-Y movement and graduated scales.
Does it include coarse and fine focusing?
Yes. The MT-256 Series includes coarse and fine focusing knobs with graduated scale for accurate image adjustment.
What type of illumination is provided?
The microscope uses a reflecting mirror illumination system, supported by an Abbe condenser and movable iris diaphragm for optimal light control.
Which industries commonly use the MT-256 Series?
The Medical Microscope is widely used in hospitals, diagnostic centres, pathology laboratories, microbiology laboratories, medical colleges, universities, pharmaceutical laboratories, and research institutes.
Can the MT-256 Series be supplied in bulk?
Yes. Micro Technologies offers OEM manufacturing, institutional procurement, government tender supply, distributor support, export orders, and bulk laboratory equipment supply.
Why Choose Our Products
- High-quality achromatic optics
- Precision X-Y mechanical stage
- Smooth focusing mechanism
- Durable laboratory construction
- Reliable clinical performance
- Easy operation and maintenance
- OEM and customized manufacturing
- Competitive pricing
- Bulk supply capability
- Strict quality inspection
- Professional technical support
- Reliable after-sales service
Call to Action
Looking for a reliable Medical Microscope (MT-256 Series)? Micro Technologies manufactures and supplies premium medical microscopes designed for hospitals, pathology laboratories, diagnostic centres, medical colleges, universities, research institutes, pharmaceutical laboratories, and clinical testing facilities. Contact us today for customized specifications, OEM manufacturing, government tenders, distributor inquiries, bulk orders, or a competitive quotation.
