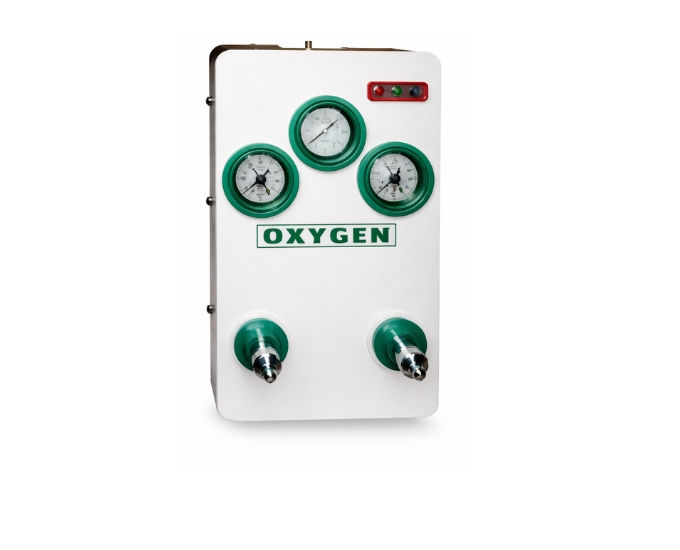

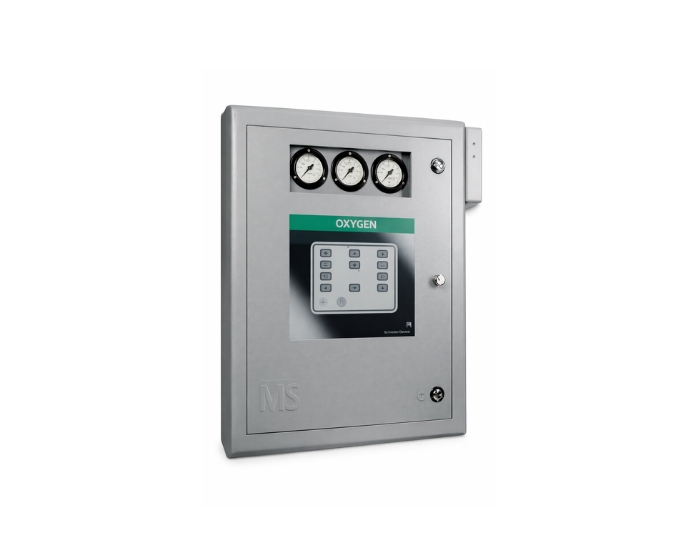

Medical Gas Control Panel with Automatic Changeover System and Pressure Monitoring
Product Specification Sheet
Medical Gas Control Panel with Automatic Changeover System and Pressure Monitoring
Model Number: MTH-208
The medical gas control panel with automatic changeover is an advanced system designed to manage and monitor gas supply in hospitals and medical facilities. It ensures uninterrupted gas flow by automatically switching between cylinder banks. Equipped with pressure monitoring and alarm systems, it enhances safety and operational efficiency. Ideal for hospitals, ICUs, and centralized gas systems, it provides reliable performance. Micro Technologies offers this panel as a high-performance solution for modern medical gas management.
Product Specification
The medical gas control panel with automatic changeover system and pressure monitoring is engineered to provide continuous and reliable gas supply in healthcare environments. It connects to multiple cylinder banks (2–4 banks) and automatically switches to a standby bank when the active bank pressure drops below the set level, ensuring uninterrupted operation.
The system features analog pressure meters for monitoring incoming bank pressure and main line pressure. LED indicators display the active and standby banks, while alarms notify users of pressure changes. It also detects whether gas pressure is normal or low across the system.
Advanced features include RS-485 Modbus interface for BMS connectivity, provision for external NO/NC interface, and GSM gateway integration for remote monitoring. Micro Technologies ensures superior manufacturing quality, delivering a durable and efficient gas management solution.
The medical gas control panel is also suitable for training institutes, helping students understand centralized gas systems and automation technologies.
Features
- Automatic changeover between cylinder banks
- Supports 2–4 bank gas connections
- Analog pressure meters for accurate monitoring
- LED indicators for active and standby banks
- Alarm system for pressure drop detection
- RS-485 Modbus interface for BMS connectivity
- GSM gateway support for remote monitoring
Benefits
- Ensures uninterrupted medical gas supply
- Enhances safety with real-time monitoring and alarms
- Reduces manual intervention with automatic switching
- Supports centralized hospital gas systems
- Ideal for hospitals, ICUs, and medical facilities
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Medical Gas Control Panel |
| Model No. | MTH-208 |
| Type | Gas Monitoring & Control System |
| Bank Capacity | 2–4 Cylinder Banks |
| Monitoring | Pressure Monitoring (Analog Display) |
| Indicators | LED Status Indicators |
| Connectivity | RS-485 Modbus, GSM Gateway |
| Alarm System | Pressure Drop Alarm |
| Application | Centralized Medical Gas Supply |
| Usage | Hospitals, ICUs, Medical Facilities |
FAQs
What is a medical gas control panel used for?
A medical gas control panel is used to manage and monitor the supply of gases such as oxygen in hospitals. It ensures continuous gas flow by automatically switching between cylinder banks. It is essential for centralized gas systems in healthcare facilities.
How does the automatic changeover system work?
The automatic changeover system detects when the pressure in one gas bank drops below a set level. It then automatically switches to another bank without interrupting the supply. This ensures uninterrupted operation and patient safety.
What safety features are included in this system?
This system includes pressure monitoring, alarm alerts, and LED indicators to provide real-time status updates. It also detects low pressure conditions and ensures timely alerts. These features enhance safety and reliability.
Can this system be integrated with hospital management systems?
Yes, the panel supports RS-485 Modbus interface for integration with building management systems (BMS). It also supports GSM gateway for remote monitoring. This allows efficient control and monitoring across the facility.
Why Choose Our Products
- Advanced gas control technology for reliable performance
- Durable and efficient for continuous operation
- High precision monitoring and automation
- User-friendly design with smart connectivity features
