Logic Gate Trainer Using CMOS IC
Product Specification Sheet

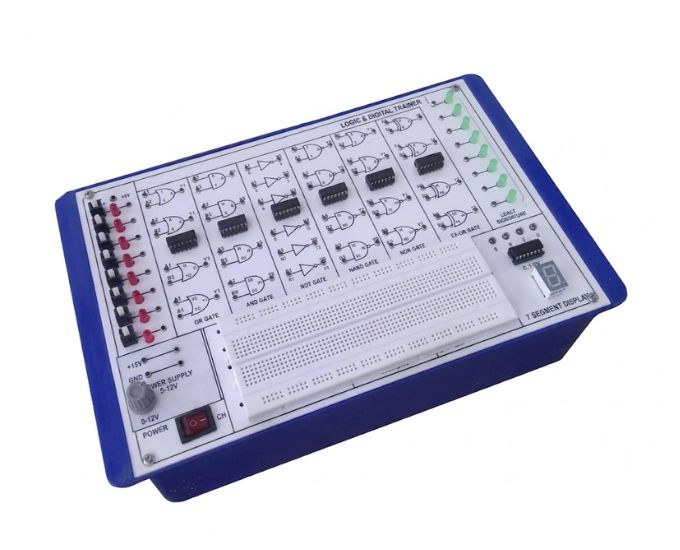

Logic Gate Trainer Using CMOS IC
Model Number: MT-E007A
The Logic Gate Trainer Using CMOS IC is a professional laboratory training system designed for studying CMOS-based logic gates and digital logic circuits. Manufactured by Micro Technologies, this trainer enables practical experiments on OR, AND, NOT, NAND, NOR, EX-OR, and EX-NOR gates using CMOS technology, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The Logic Gate Trainer Using CMOS IC is specially designed to provide students with practical knowledge of CMOS digital logic through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the characteristics, operation, and implementation of CMOS logic gates that are widely used in modern digital systems, embedded electronics, communication equipment, industrial automation, consumer electronics, and VLSI design.
The trainer allows students to perform experiments on OR Gate, AND Gate, NOT Gate, NAND Gate, NOR Gate, EX-OR Gate, and EX-NOR Gate using CMOS integrated circuits. Through practical experimentation, learners can verify truth tables, analyze logic operations, understand CMOS switching characteristics, and compare digital logic implementations.
The trainer incorporates onboard CMOS logic circuits capable of performing multiple logic operations. It also includes a BCD to Seven Segment Decoder for display-based digital experiments and an onboard breadboard area for designing additional user-defined CMOS logic circuits, allowing students to extend laboratory experiments beyond the standard curriculum.
Eight independent TTL logic input switches allow users to apply HIGH and LOW logic levels during experimentation. Each input includes an LED indicator for clear visualization of input status. Eight independent buffered logic output indicators display HIGH and LOW output conditions, enabling students to observe gate responses and verify logic operations accurately.
The trainer operates using a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of all onboard CMOS integrated circuits. Carefully selected electronic components provide low power consumption, stable performance, accurate switching characteristics, and long operational life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and symbols for easy identification of experimental sections and logic circuits. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed inside a rugged ABS plastic cabinet designed for continuous educational use. Its compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, digital electronics training, and project development.
The Logic Gate Trainer Using CMOS IC is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, embedded systems laboratories, VLSI laboratories, computer engineering laboratories, and research institutions.
Every Logic Gate Trainer Using CMOS IC manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of CMOS logic gates
- Practical implementation of OR Gate
- Practical implementation of AND Gate
- Practical implementation of NOT Gate
- Practical implementation of NAND Gate
- Practical implementation of NOR Gate
- Practical implementation of EX-OR Gate
- Practical implementation of EX-NOR Gate
- Verification of Boolean logic functions
- Eight independent TTL logic inputs
- LED logic input indicators
- Eight buffered logic output indicators
- Built-in BCD to Seven Segment Decoder
- Onboard breadboard for custom circuit development
- Multi-operation CMOS logic circuits
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Printed circuit diagrams
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Instruction manual included
Benefits
- Demonstrates CMOS logic gate operation clearly
- Enhances understanding of CMOS digital electronics
- Supports digital electronics laboratory education
- Simplifies Boolean algebra experiments
- Allows custom circuit development using onboard breadboard
- Easy laboratory setup
- Safe low-voltage operation
- Improves practical digital circuit design skills
- Low power CMOS operation
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Logic Gate Trainer Using CMOS IC |
| Logic Gates | OR, AND, NOT, NAND, NOR, EX-OR & EX-NOR |
| Logic Technology | CMOS IC |
| Additional Circuit | BCD to Seven Segment Decoder |
| Breadboard | Built-in Experimental Breadboard |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Inputs | Eight Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Logic Indicators | Eight Buffered HIGH/LOW Logic Indicators |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- CMOS Logic Laboratories
- Embedded Systems Laboratories
- VLSI Laboratories
- Computer Engineering Laboratories
- Electronics Laboratories
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- CMOS IC Set
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-CMOSLG-001
FAQs
What is the Logic Gate Trainer Using CMOS IC used for?
It is used to study CMOS logic gates, Boolean algebra, digital logic operations, and practical CMOS circuit implementation.
Which logic gates can be studied?
Students can study:
- OR Gate
- AND Gate
- NOT Gate
- NAND Gate
- NOR Gate
- EX-OR Gate
- EX-NOR Gate
Does the trainer include a breadboard?
Yes. The trainer includes an onboard breadboard for building additional CMOS logic circuits and project work.
What additional circuits are provided?
The trainer includes a BCD to Seven Segment Decoder for display-based digital electronics experiments.
How many logic inputs are available?
The trainer provides eight independent TTL logic input switches, each with LED indication.
How many output indicators are available?
The trainer includes eight buffered HIGH/LOW logic indicators for observing logic gate outputs.
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
Can the Logic Gate Trainer Using CMOS IC be supplied in bulk?
Yes. Micro Technologies supplies Logic Gate Trainers Using CMOS IC for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
Why Choose Our Products
- Premium-quality CMOS digital electronics trainer kits
- Multiple logic gate experiments on one platform
- Built-in breadboard for custom circuit development
- Integrated BCD to Seven Segment Decoder
- High-quality insulated PCB construction
- Rugged ABS cabinet
- Reliable laboratory performance
- OEM and institutional supply available
- Competitive B2B pricing
- Strict quality inspection
- Reliable technical support
- Excellent after-sales service
- Long operational life
Call to Action
Upgrade your digital electronics laboratory with the Logic Gate Trainer Using CMOS IC from Micro Technologies. Contact us today for pricing, institutional procurement, OEM requirements, government tenders, distributor inquiries, and bulk order quotations.
