Linear Air Track with Accessories
Product Specification Sheet
Linear Air Track with Accessories
Model Number: MTM-79

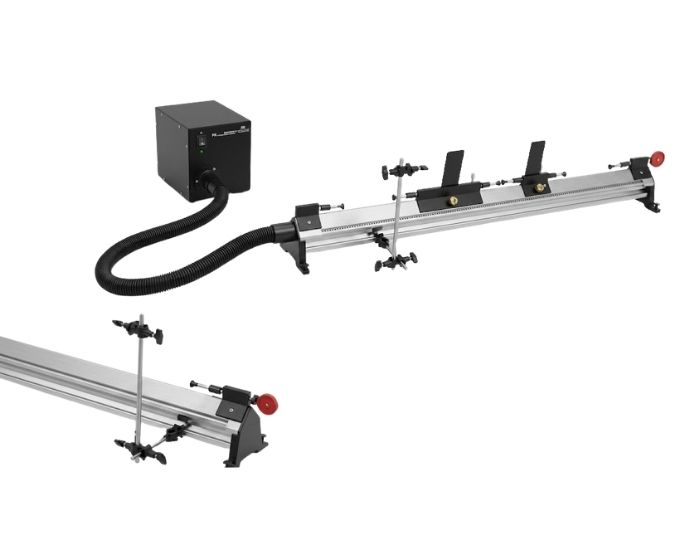

The Linear Air Track with Accessories from Micro Technologies is a precision laboratory apparatus designed for low-friction linear motion, collision, momentum, velocity and dynamics experiments. The MT-10538 features a 1.5 m square-section aluminium alloy track with staggered air holes, supported on two light-alloy castings and supplied with a comprehensive accessory set for mechanics investigations.
Product Specification
The Linear Air Track with Accessories from Micro Technologies is designed to provide a low-friction experimental platform for investigating fundamental principles of mechanics and dynamics. By supplying air through a series of holes along the track, compatible gliders can move with greatly reduced contact friction, allowing motion to be studied under conditions that more closely approximate ideal theoretical models.
The MT-10538 incorporates a square-section aluminium alloy track approximately 1.5 metres long. Staggered holes along the upper surface distribute air beneath the gliders to form an air cushion during operation.
The track is supported on two light-alloy castings. One support incorporates a two-point contact arrangement, while the other provides a single-point contact arrangement to assist with alignment and leveling.
Horizontal adjustment is provided by means of a knurled screw, enabling the track to be accurately positioned before experimental measurements are performed.
Identical end caps are fitted so that air can be introduced from either end of the track. The opposite end can be closed using the supplied stopper, providing flexibility when arranging the laboratory air supply.
When connected to a suitable blower, the track provides a low-friction surface for glider movement. This allows experiments involving uniform motion, acceleration, collisions, conservation of momentum, Newton's laws and kinetic behaviour to be carried out with reduced interference from sliding friction.
The supplied accessory set expands the experimental capabilities of the system and includes gliders, collision attachments, magnetic buffers, elastic bands, needles, plain cards and related components.
Manufactured and supplied by Micro Technologies, the Linear Air Track with Accessories is suitable for physics laboratories, mechanics laboratories, dynamics laboratories, research facilities and other environments requiring controlled low-friction motion experiments.
Features
- 1.5 m linear air track
- Square-section aluminium alloy construction
- Staggered air-hole arrangement
- Low-friction experimental operation
- Two light-alloy supporting castings
- Horizontal leveling adjustment
- Knurled adjustment screw
- Air connection possible from either end
- Interchangeable end-cap arrangement
- Compatible with laboratory blower
- Comprehensive experimental accessory set
- Suitable for collision and momentum experiments
- Robust bench-top construction
Benefits
- Minimizes friction during linear-motion experiments
- Provides clearer investigation of fundamental mechanics principles
- Supports elastic and inelastic collision experiments
- Useful for conservation-of-momentum investigations
- Adjustable leveling improves experimental setup
- Long 1.5 m track provides useful experimental travel
- Comprehensive accessories enable multiple experiments
- Suitable for quantitative motion and dynamics investigations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Linear Air Track with Accessories |
| Model No. | MT-10538 |
| Track Material | Aluminium Alloy |
| Track Section | Square Section |
| Track Length | 1.5 m |
| Air Holes | Staggered |
| Support | Two Light-Alloy Castings |
| Level Adjustment | Knurled Screw |
| Air Inlet | Either End |
| Motion Type | Linear / Low Friction |
| Blower | Suitable Blower Required |
| Primary Application | Motion, Collision & Dynamics Experiments |
Standard Accessories
| Qty. | Accessory |
|---|---|
| 2 | Large Vehicles / Gliders – 180 mm length |
| 1 | Small Vehicle / Glider – 140 mm length |
| 2 | Magnetic Buffers – 25 mm diameter |
| 2 | Plasticine Holders – 20 mm diameter, with central hole |
| 4 | Catapults – 45 mm wide, with slots for elastic band |
| 1 | Reel of Nylon Thread |
| 2 | White Rods – 4 mm diameter × 150 mm long |
| 24 | Needles |
| 20 | Plain Cards |
| 1 | Reel Rubber Strand |
| 1 | Pack of Plasticine |
| 20 | Elastic Bands |
| 2 | Needles with Holder |
| 1 | Instruction Manual |
Recommended Accessories
| Model No. | Accessory |
|---|---|
| MT-10538T | Suggested Timer |
| MT-10538G | Suggested Photo Gates |
Applications
- Linear motion experiments
- Uniform velocity investigations
- Acceleration experiments
- Newton's laws of motion
- Conservation of momentum
- Elastic collision experiments
- Inelastic collision experiments
- Kinematics investigations
- Dynamics experiments
- Low-friction motion studies
- Velocity measurement
- Motion timing experiments
- Collision analysis
Available Variants
Linear Air Track, Linear Air Track with Accessories, Low-Friction Air Track, Dynamics Air Track, Aluminium Air Track, Collision Experiment Air Track, Momentum Air Track, Physics Laboratory Air Track
SKU System
MT-LAT-10538
FAQs
What is the MT-10538 Linear Air Track used for?
The MT-10538 is used for low-friction experiments involving linear motion, velocity, acceleration, collisions, momentum and other mechanics principles.
What is the length of the Linear Air Track?
The track is approximately 1.5 metres long.
What material is used for the track?
The track is manufactured from aluminium alloy with a square-section configuration.
How does a Linear Air Track reduce friction?
Air passes through staggered holes in the track and creates an air cushion beneath compatible gliders, greatly reducing direct contact friction.
Can collision experiments be performed?
Yes. The supplied gliders and accessories allow suitable elastic, inelastic and momentum-related collision experiments to be performed.
Can air be supplied from either end of the track?
Yes. Identical end caps allow the air supply to be introduced from either end, while the opposite end can be closed with a stopper.
Are accessories supplied with the MT-10538?
Yes. A comprehensive set including gliders, magnetic buffers, plasticine holders, catapults, thread, rods, needles, cards, elastic bands and other accessories is provided.
Are timer and photo gates available?
Yes. A timer (MT-10538T) and photo gates (MT-10538G) can be supplied as recommended accessories for suitable timing and motion experiments.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-10538
- 1.5 m aluminium alloy track
- Comprehensive accessory package
- Suitable for low-friction mechanics experiments
- Supports multiple motion and collision investigations
- Optional timing and photo-gate accessories available
- Bulk, OEM, institutional and distributor supply available
Call to Action
Choose the Linear Air Track with Accessories – MT-10538 from Micro Technologies for precise low-friction motion, collision and dynamics experiments. Contact us for competitive pricing, complete configurations with timer and photo gates, institutional procurement, bulk orders, OEM requirements and customized quotations.
