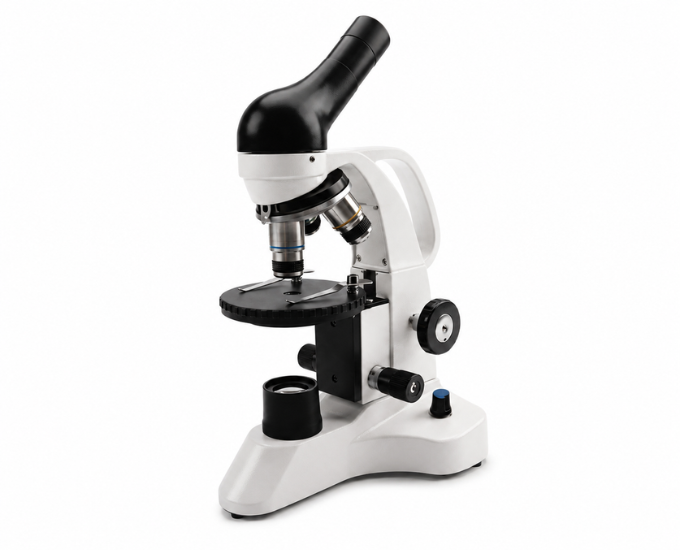

LED Monocular Microscope with Round Stage & Fine Focusing
Product Specification Sheet
LED Monocular Microscope with Round Stage & Fine Focusing
Model Number: MTM-030
The LED Monocular Microscope with Round Stage from Micro Technologies is designed for educational institutions, biology laboratories, research facilities, and scientific training centers. Featuring a 45° inclined, 360° rotatable viewing head, dual wide-field eyepiece options, precision optics, and an adjustable LED illumination system, it delivers bright, high-contrast microscopic observations. Its separate coarse and fine focusing mechanism, durable construction, and ergonomic design make it ideal for routine biological studies, laboratory analysis, and classroom demonstrations.
Product Specification
The LED Monocular Microscope with Round Stage & Fine Focusing is a reliable laboratory instrument developed for biology education, laboratory analysis, and routine scientific observation. Built with precision optical components and a rugged laboratory-grade body, it provides dependable performance for students, educators, laboratory technicians, and researchers.
The microscope features a 45° inclined, 360° rotatable monocular viewing head that allows comfortable viewing from different positions during extended laboratory sessions. It is supplied with WF10X and WF16X wide-field eyepieces, offering greater flexibility for various observation requirements. Combined with 4X, 10X, and 40X(S) objective lenses, the microscope produces sharp, high-resolution images suitable for observing microorganisms, biological tissues, plant cells, and prepared slides.
A 90 mm diameter round stage with slide clips securely holds specimens during examination, while the 0.65 single-lens condenser with disc diaphragm ensures uniform light distribution and improved image contrast. The microscope incorporates separate coarse and fine focusing mechanisms, enabling quick initial focusing followed by precise image adjustments for detailed specimen analysis.
Its adjustable LED illumination system provides bright, energy-efficient lighting with variable intensity control, allowing users to optimize illumination according to different specimen types and laboratory conditions. The LED system also reduces power consumption and maintenance while offering long operational life.
Manufactured using premium laboratory-grade materials, this microscope is suitable for schools, colleges, universities, hospitals, diagnostic laboratories, research institutes, and industrial quality control facilities. Micro Technologies supplies this microscope for institutional procurement, distributor networks, laboratory modernization projects, and OEM requirements.
Features
- 45° inclined, 360° rotatable monocular head
- WF10X and WF16X wide-field eyepieces
- 4X, 10X, and 40X(S) objective lenses
- 90 mm round stage with slide clips
- 0.65 single-lens condenser with disc diaphragm
- Separate coarse and fine focusing mechanisms
- Adjustable LED illumination system
- Variable light intensity control
- Durable laboratory-grade construction
- Suitable for education, research, and laboratory applications
Benefits
- Produces bright and detailed microscopic images
- Dual eyepiece options provide greater viewing flexibility
- Adjustable LED lighting improves specimen visibility
- Fine focusing enables precise image adjustment
- Comfortable viewing for prolonged laboratory work
- Energy-efficient illumination reduces maintenance costs
- Ideal for educational, clinical, and research laboratories
Product Specifications
| Specification | Details |
|---|---|
| Product Name | LED Monocular Microscope with Round Stage & Fine Focusing |
| Model No. | MTM-030 |
| Product Type | Biological Laboratory Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Eyepieces | WF10X, WF16X |
| Objectives | 4X, 10X, 40X(S) |
| Stage | Round Stage, Ø90 mm with Slide Clips |
| Condenser | 0.65 Single Lens Condenser with Disc Diaphragm |
| Focusing System | Separate Coarse & Fine Focusing Mechanisms |
| Illumination | Adjustable LED Illumination System |
| Light Control | Variable Brightness Adjustment |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Schools, Colleges, Biology Laboratories, Research Institutes & Clinical Laboratories |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- LED Round Stage Monocular Microscope
- Biological Laboratory Microscope
- Educational Science Microscope
- Research Monocular Microscope
- Adjustable LED Laboratory Microscope
FAQs
What eyepieces are included with this microscope?
The microscope comes with both WF10X and WF16X wide-field eyepieces, allowing users to select the most suitable viewing magnification.
Does this microscope include fine focusing?
Yes. It features separate coarse and fine focusing mechanisms for smooth and accurate image adjustment.
Is the LED illumination adjustable?
Yes. The integrated LED illumination system includes adjustable brightness control for optimal viewing under different specimen conditions.
What type of stage does this microscope have?
The microscope features a 90 mm diameter round stage with slide clips to securely hold microscope slides during observation.
Is this microscope suitable for schools and laboratories?
Yes. It is widely used in schools, colleges, universities, biology laboratories, research institutes, and diagnostic laboratories.
Can this microscope be ordered in bulk?
Yes. Micro Technologies supplies this microscope in bulk for educational institutions, laboratories, distributors, OEM partners, and government procurement projects.
Why Choose Our Products
- Precision-engineered optical laboratory instruments
- High-quality optics for superior image clarity
- Durable construction for continuous laboratory use
- Competitive pricing for institutional procurement
- Reliable technical support and prompt after-sales service
Call to Action
Choose professional microscopy solutions from Micro Technologies for your laboratory, educational, and research requirements. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, or a customized quotation for our premium laboratory microscope range.
