LED Monocular Microscope with Dual LED Illumination
Product Specification Sheet

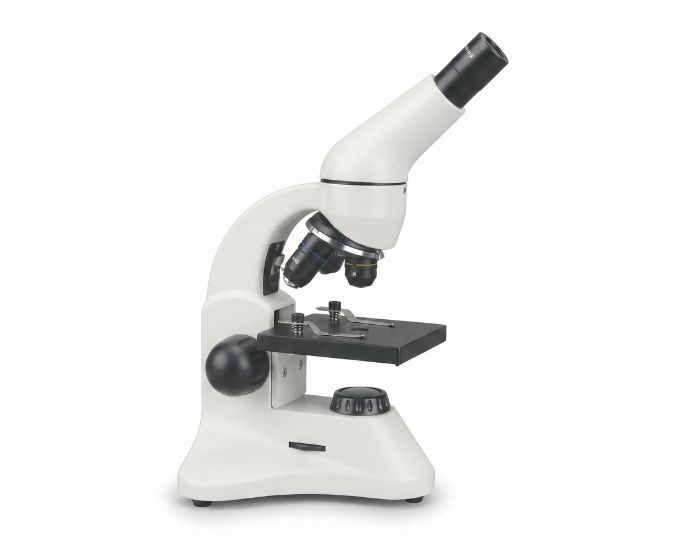

LED Monocular Microscope with Dual LED Illumination
Model Number: MTM-026
The LED Monocular Microscope with Dual LED Illumination from Micro Technologies is designed to deliver bright, high-quality microscopic observations for educational institutions, laboratories, and research facilities. Featuring a 45° inclined, 360° rotatable monocular head, dual top and bottom LED lighting, and precision optical components, it provides excellent image clarity for biological studies and routine laboratory work. Its ergonomic design, durable construction, and user-friendly controls make it an ideal choice for schools, colleges, universities, and science laboratories.
Product Specification
The LED Monocular Microscope with Dual LED Illumination is a versatile optical instrument developed for biology education, laboratory analysis, and scientific research. Designed with precision optics and a robust laboratory-grade body, it delivers reliable performance and clear specimen visualization for students, educators, laboratory technicians, and researchers.
Its 45° inclined monocular viewing head rotates through 360°, allowing convenient observation from multiple angles and making it suitable for shared laboratory environments. The wide-field WF10X eyepiece, combined with 4X, 10X, and 40X spring-loaded objective lenses, produces sharp and detailed images for examining biological tissues, microorganisms, insects, plant cells, and prepared microscope slides.
The microscope incorporates a 90 × 90 mm working stage that securely supports specimens during observation. An N.A. 0.65 condenser with a disc diaphragm provides improved illumination control and enhanced image contrast for accurate microscopic examination. The coarse focusing mechanism offers a 13 mm adjustment range, enabling smooth and precise focusing for quick image alignment.
A key advantage of this microscope is its dual LED illumination system, featuring both top and bottom LED lights. This lighting arrangement enables observation of both transparent and opaque specimens while providing energy-efficient, long-lasting illumination with minimal heat generation.
Manufactured using durable laboratory-grade materials, this microscope is built for continuous use in schools, colleges, universities, hospitals, training centers, and research laboratories. Micro Technologies supplies this microscope for institutional procurement, distributors, OEM requirements, and laboratory equipment projects across educational and scientific sectors.
Features
- 45° inclined, 360° rotatable monocular head
- Wide-field WF10X eyepiece
- 4X, 10X, and 40X(S) objective lenses
- Dual LED illumination with top and bottom lighting
- N.A. 0.65 condenser with disc diaphragm
- 13 mm coarse focusing adjustment
- 90 × 90 mm working stage
- Bright, energy-efficient LED lighting
- Durable laboratory-grade construction
- Suitable for educational and laboratory applications
Benefits
- Produces bright and high-contrast microscopic images
- Dual LED lighting supports transparent and opaque specimen observation
- Comfortable viewing with a rotatable observation head
- Energy-efficient illumination reduces maintenance costs
- Easy operation for students and laboratory professionals
- Durable construction ensures long service life
- Ideal for educational institutions and laboratory procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | LED Monocular Microscope with Dual LED Illumination |
| Model No. | MTM-026 |
| Product Type | Biological Laboratory Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S) |
| Working Stage | 90 × 90 mm |
| Condenser | N.A. 0.65 Condenser with Disc Diaphragm |
| Coarse Adjustment Range | 13 mm |
| Illumination | Top & Bottom LED Illumination |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Schools, Colleges, Biology Laboratories, Research Institutes & Science Education |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Dual LED Monocular Microscope
- Educational Laboratory Microscope
- Student Biological Microscope
- Rotatable Head LED Microscope
- Science Laboratory Microscope
FAQs
What is the advantage of dual LED illumination?
Dual LED lighting provides illumination from both the top and bottom, making the microscope suitable for observing both transparent and opaque specimens with improved visibility.
Which objective lenses are included?
The microscope includes 4X, 10X, and 40X(S) objective lenses for routine biological observation and educational laboratory work.
Can the viewing head rotate?
Yes. The monocular viewing head is inclined at 45° and rotates through 360°, allowing comfortable viewing from different positions.
Is this microscope suitable for schools and colleges?
Yes. It is widely used in schools, colleges, universities, and laboratory training centers for biology practicals and science education.
What type of condenser does this microscope use?
It is equipped with an N.A. 0.65 condenser and disc diaphragm to provide better light control and improved image contrast.
Can this microscope be purchased in bulk?
Yes. We offer bulk supply for educational institutions, laboratories, distributors, government organizations, and OEM projects.
