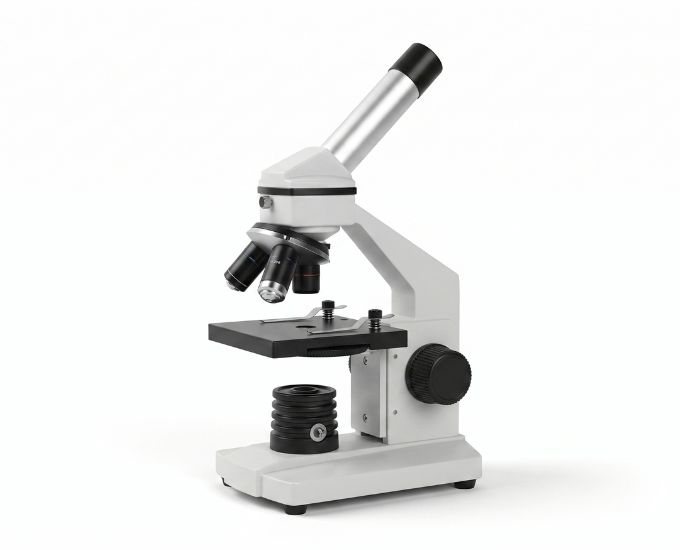

LED Monocular Biological Microscope with Plain Stage
Product Specification Sheet
LED Monocular Biological Microscope with Plain Stage
Model Number: MTM-023
The LED Monocular Biological Microscope from Micro Technologies is a dependable optical instrument designed for schools, colleges, universities, laboratories, and science training centers. Equipped with a 45° inclined monocular viewing head, precision optical objectives, and energy-efficient LED illumination, it delivers bright and sharp specimen observation for biological studies and laboratory experiments. Its compact construction, smooth focusing mechanism, and user-friendly operation make it suitable for educational demonstrations, routine laboratory work, and practical science applications where reliable performance and long service life are essential.
Product Specification
The LED Monocular Biological Microscope with Plain Stage is developed to provide accurate microscopic observation for educational institutions, biology laboratories, clinical training centers, and routine scientific applications. Combining dependable optical performance with durable construction, it offers an excellent solution for students, educators, laboratory technicians, and researchers seeking consistent observation results.
Its ergonomically designed 45° inclined monocular viewing head provides comfortable viewing during extended laboratory sessions. The wide-field WF10X eyepiece works together with 4X, 10X, and 40X spring-loaded objective lenses to produce clear, high-contrast images suitable for observing cells, microorganisms, plant tissues, insects, and prepared biological specimens.
The microscope features a sturdy 90 × 90 mm plain stage fitted with slide clips to securely hold specimens during examination. A 0.65 single-lens condenser combined with a disc diaphragm enhances light distribution and image contrast, helping users achieve improved visibility across different specimen types.
A precision coarse focusing mechanism enables quick and smooth image adjustment, making operation simple for beginners as well as experienced laboratory users. Bright LED illumination delivers uniform lighting while consuming less power and requiring minimal maintenance compared to conventional light sources.
Manufactured using laboratory-grade materials, this microscope is built for continuous classroom and laboratory use. Micro Technologies supplies this microscope to schools, colleges, universities, laboratory distributors, hospitals, and research organizations requiring an economical yet dependable microscopy solution for education and routine laboratory analysis.
Features
- 45° inclined monocular viewing head
- Wide-field WF10X eyepiece
- 4X, 10X, and 40X(S) objective lenses
- Plain stage with slide clips (90 × 90 mm)
- 0.65 single-lens condenser
- Disc diaphragm for improved illumination control
- Smooth coarse focusing adjustment
- Bright and energy-efficient LED illumination
- Durable laboratory-grade construction
- Easy operation for educational and laboratory use
Benefits
- Produces bright and clear microscopic images
- Easy to operate for students and laboratory personnel
- Energy-efficient LED lighting reduces operating costs
- Durable design supports long-term laboratory use
- Reliable optical performance for routine biological observation
- Ideal for educational institutions and laboratory training
- Excellent value for bulk institutional procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | LED Monocular Biological Microscope with Plain Stage |
| Model No. | MTM-023 |
| Product Type | Biological Student Microscope |
| Viewing Head | Monocular, 45° Inclined |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S) |
| Working Stage | Plain Stage with Slide Clips, 90 × 90 mm |
| Condenser | 0.65 Single Lens Condenser with Disc Diaphragm |
| Focusing System | Coarse Focusing Adjustment |
| Illumination | LED Illumination |
| Body Material | Laboratory Grade Metal & ABS Construction |
| Usage/Application | Schools, Colleges, Biology Laboratories & Educational Institutes |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- LED Student Biological Microscope
- Educational Monocular Microscope
- Laboratory Monocular Microscope
- School Science Microscope
- Biology Training Microscope
SKU System
- MTM-023-LED
- MTM-023-BIO
- MTM-023-EDU
- MTM-023-LAB
- MTM-023-STD
FAQs
What applications is this microscope suitable for?
This microscope is suitable for biology education, laboratory practicals, science demonstrations, microbiology training, and routine specimen observation in educational and laboratory environments.
Which objective lenses are included?
The microscope comes with 4X, 10X, and 40X(S) objective lenses, providing multiple magnification options for studying biological samples and prepared slides.
Does the microscope use LED illumination?
Yes. It features an energy-efficient LED illumination system that delivers bright, uniform lighting while reducing maintenance and power consumption.
Is the microscope easy for students to use?
Yes. Its simple controls, ergonomic viewing head, and smooth coarse focusing mechanism make it suitable for beginners and classroom learning.
Does the stage include slide holders?
Yes. The plain stage is equipped with sturdy slide clips that securely hold specimens during observation.
Can educational institutions purchase this microscope in bulk?
Yes. We supply bulk quantities for schools, colleges, universities, distributors, laboratories, and government educational projects.
Why Choose Our Products
- Precision-engineered optical laboratory instruments
- Strict quality control for reliable performance
- Durable construction for long-term educational use
- Competitive pricing for bulk institutional procurement
- Responsive customer support and dependable product availability
Call to Action
Equip your laboratory or educational institution with dependable microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional procurement, OEM requirements, distributor partnerships, or a customized quotation tailored to your laboratory and educational needs.
