Laser Optics Kit
Product Specification Sheet
Laser Optics Kit
Model Number: MTO-23

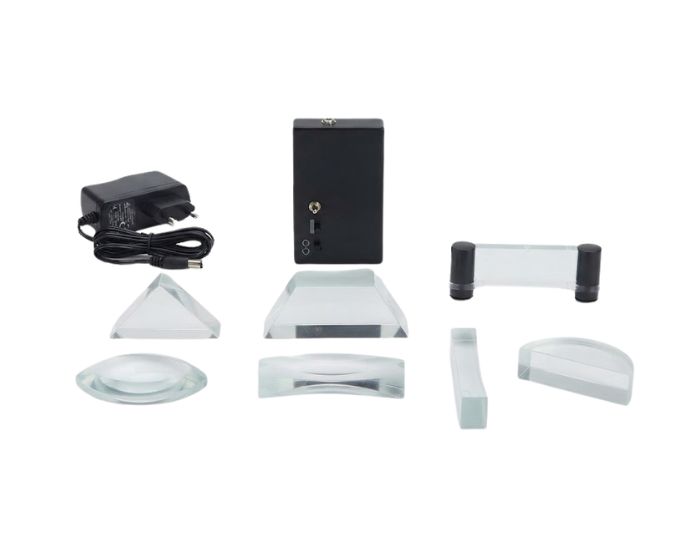

The Laser Optics Kit is a comprehensive optical experiment set developed for clear visualization and analysis of light-ray behaviour. Micro Technologies supplies the kit with a laser ray box capable of producing five visible parallel rays through diode laser sources, providing well-defined beams for practical optical investigations. The set includes concave and convex lenses, a rectangular prism, trapezoid prism, mirror, right-angle prism, semi-circular prism, hollow semi-circular prism, activity mat, and a plastic molded laser ray box. Components can be positioned on a flat working surface to investigate reflection, refraction, convergence, divergence, and prism behaviour. The included AC adapter provides convenient power for the laser ray box, making the kit a complete solution for physics and optics laboratories.
Product Specification
The Laser Optics Kit is a complete ray-optics experiment system that combines a multi-beam laser source with a versatile collection of transparent optical components. The central laser ray box generates five visible parallel light rays using diode laser sources, providing sharply defined ray paths that are convenient for observing and analyzing optical behaviour.
Unlike conventional lamp-based ray boxes, the laser arrangement produces narrow, highly visible beams that make changes in light direction easier to follow across a flat experimental surface. Users can position different lenses, prisms, and mirrors in the beam path to examine reflection, refraction, convergence, divergence, and geometrical ray relationships.
Micro Technologies supplies the Laser Optics Kit with both concave and convex lenses for comparing diverging and converging behaviour. A rectangular prism and trapezoid prism provide additional configurations for refraction and ray-deviation investigations, while the mirror supports practical reflection experiments.
The set also incorporates a right-angle prism, semi-circular prism, and hollow semi-circular prism. These components broaden the range of investigations to include critical-angle behaviour, internal reflection, refraction through curved boundaries, and experiments involving different optical media where appropriate.
An activity mat printed with angular scales provides a convenient reference surface for arranging components and examining incident, reflected, and refracted ray directions. This helps create an organized optical setup without requiring a complicated bench-mounted system.
The laser ray box is housed in a molded plastic enclosure and powered through the supplied AC adapter. With five parallel rays, multiple optical components, an angular activity mat, and a complete power arrangement, the Laser Optics Kit provides a versatile solution for repeated ray-optics investigations and institutional laboratory procurement.
Features
- Laser ray box producing five visible parallel rays
- Diode laser light sources
- Includes concave and convex lenses
- Multiple prism shapes for varied optics experiments
- Mirror supplied for reflection investigations
- Semi-circular and hollow semi-circular prisms included
- Printed activity mat with angular scales
- Components suitable for use on a flat working surface
- Plastic molded laser ray box enclosure
- AC power adapter included
Benefits
- Five parallel laser rays provide clear optical visualization
- Multiple components support a broad range of experiments
- Defined laser beams simplify ray-path analysis
- Angular activity mat makes component positioning more convenient
- One kit supports reflection, refraction, convergence, and divergence
- Complete accessory collection reduces separate procurement
- Reusable construction offers strong long-term laboratory value
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Laser Optics Kit |
| Internal Model No. | MT-30409 |
| Product Type | Laser Ray Optics Experiment Kit |
| Laser Source | Diode laser |
| Number of Rays | 5 parallel visible rays |
| Ray Box Housing | Molded plastic |
| Working Arrangement | Flat-surface optical setup |
| Concave Lens | 90 × 25 × 25 mm – 1 No. |
| Convex Lens | 90 × 25 × 25 mm – 1 No. |
| Rectangular Prism | 90 × 25 × 25 mm – 1 No. |
| Trapezoid Prism | 90 × 41 × 25 mm – 1 No. |
| Mirror | 86 × 25 × 0.7 mm – 1 No. |
| Right-Angle Prism | 45 × 45 × 90 mm – 1 No. |
| Semi-Circular Prism | 90 × 45 × 25 mm – 1 No. |
| Hollow Semi-Circular Prism | 75 × 38 × 25 mm – 1 No. |
| Activity Mat | Printed angular scales – 1 No. |
| Power Supply | AC adapter included |
| Usage / Application | Reflection, refraction, ray tracing, lenses and prism optics |
Available Variants
- Standard Laser Optics Kit
- Five-Ray Laser Optics Kit
- Laser Ray Box with Optical Components
- Complete Laser Ray-Tracing Set
- Customized optics kit for institutional requirements
SKU System
- MT-LOK-5R – Five-Ray Laser Optics Kit
- MT-LOK-PRM – Laser Optics Kit with Prisms
- MT-LOK-FULL – Complete Laser Optical Set
- MT-LOK-AC – AC Powered Laser Optics Kit
- MT-LOK-CUS – Customized Laser Optics Kit
FAQs
What is the Laser Optics Kit used for?
The kit is used for practical ray-optics experiments involving reflection, refraction, convergence, divergence, prisms, mirrors, and geometrical optics. Its visible laser rays make optical paths easy to observe.
How many laser rays does the ray box produce?
The laser ray box produces five visible parallel rays. These beams can be projected across a flat surface for simultaneous observation of how optical components affect multiple rays.
What optical components are included?
The set includes concave and convex lenses, rectangular and trapezoid prisms, a mirror, right-angle prism, semi-circular prism, and hollow semi-circular prism.
What is the purpose of the activity mat?
The activity mat contains printed angular scales that provide a convenient reference for positioning components and examining incident, reflected, and refracted ray directions.
Can the kit demonstrate convergence and divergence?
Yes. The convex lens can be used to observe converging ray behaviour, while the concave lens provides a practical way to examine divergence.
Can the Laser Optics Kit demonstrate refraction?
Yes. Several transparent prisms are included for investigating changes in light direction as laser rays pass through different optical boundaries and geometries.
Can it be used for reflection experiments?
Yes. A mirror is supplied with the set, allowing the incident and reflected laser rays to be observed and compared during reflection investigations.
How is the laser ray box powered?
The standard Laser Optics Kit includes an AC adapter for powering the laser ray box during laboratory operation.
Does the equipment require calibration?
Routine calibration is generally unnecessary for qualitative experiments. Laser alignment and the angular reference surface should be checked before quantitative ray measurements.
How should the optical components be maintained?
Keep the lens and prism surfaces clean and protected from scratches. Use a soft, non-abrasive cleaning material and store all components securely after use.
Can Laser Optics Kits be ordered in bulk?
Yes. Bulk quantities can be supplied for physics laboratories, optics laboratories, universities, colleges, research facilities, laboratory projects, and scientific equipment distributors.
Can the kit configuration be customized?
Optical components, quantities, packaging, and accessory combinations may be customized for larger procurement requirements depending on technical specifications and manufacturing feasibility.
