Jacketed Mixing Reactor up to 300 L
Product Specification Sheet

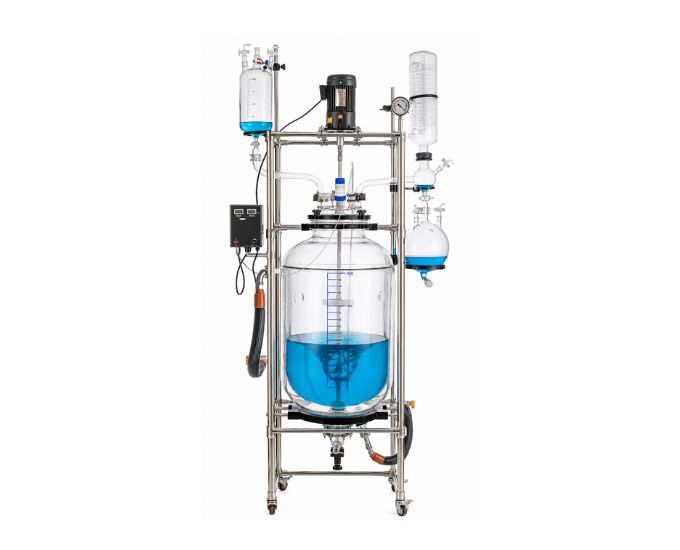

Jacketed Mixing Reactor up to 300 L
Model Number: MTR-01
The Jacketed Mixing Reactor up to 300 L from Micro Technologies is designed for controlled mixing, heating, cooling and reaction processing of liquids and compatible process materials. The reactor incorporates a jacketed vessel, motor-driven agitator, process connections, temperature monitoring provisions and bottom discharge, making it suitable for chemical, pharmaceutical, research, pilot plant and process-development applications.
Product Specification
The Jacketed Mixing Reactor from Micro Technologies is a versatile process system designed for applications requiring simultaneous agitation and controlled temperature conditions.
The reactor consists of a central process vessel surrounded by an external jacket through which suitable heating or cooling media can be circulated. This arrangement enables indirect transfer of heat between the jacket medium and the process material inside the vessel.
A motor-driven stirrer provides continuous agitation of the process contents. Proper mixing helps improve uniformity, heat transfer and contact between different ingredients during reaction, dissolution, blending or other suitable processes.

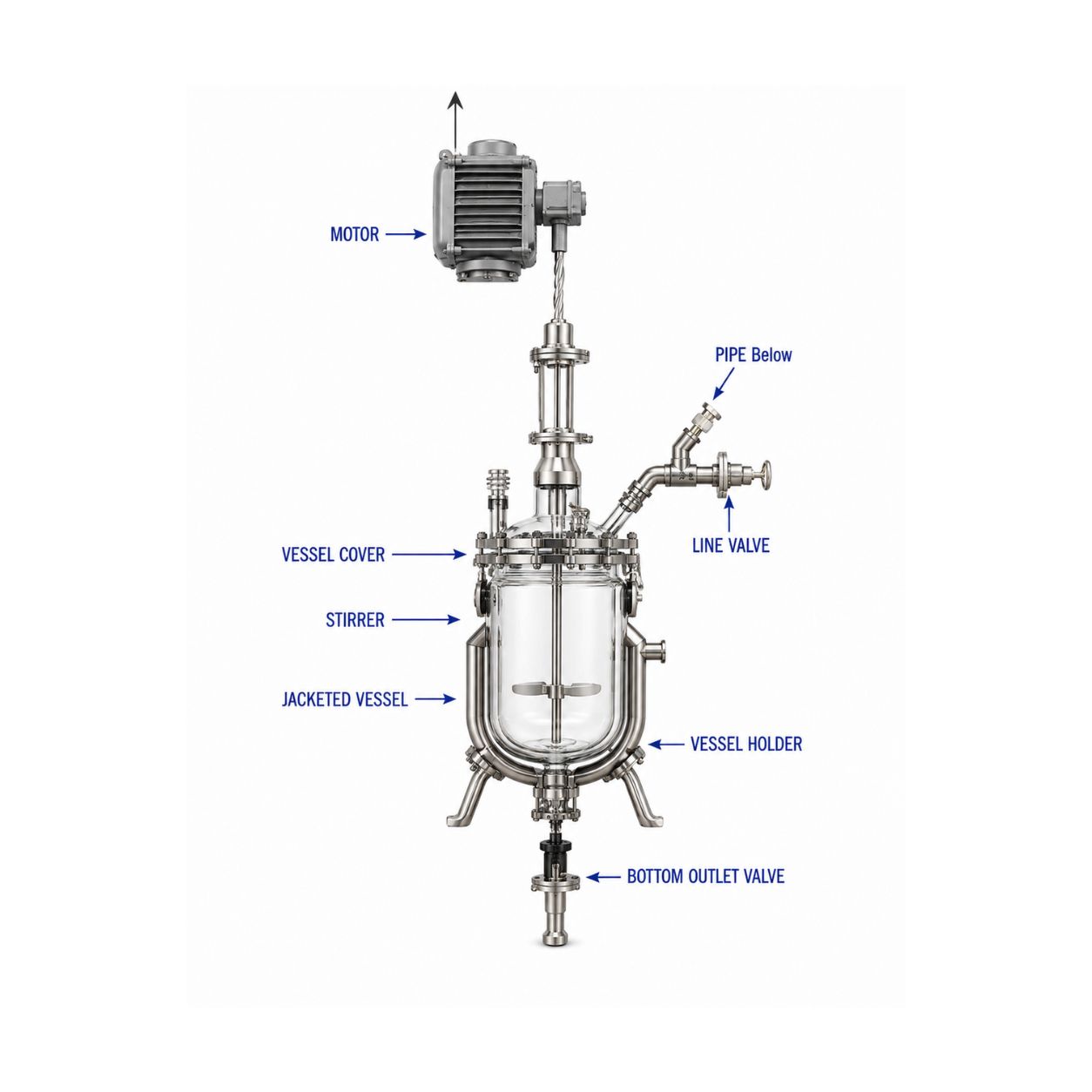

The illustrated configuration includes provisions for heating media, cooling media, temperature measurement, process addition, venting and bottom discharge. These connections allow the reactor to be integrated into a larger pilot plant or production process.
Capacities can be supplied up to approximately 300 litres, making the system suitable for research-scale operations, pilot batches, scale-up studies and suitable small-process applications.
The reactor can be configured according to required process conditions, including vessel capacity, agitation system, jacket arrangement, materials of construction and instrumentation.
Key Features
- Jacketed process vessel
- Capacity available up to 300 litres
- Motor-driven agitation
- Controlled mixing of process materials
- Heating media circulation provision
- Cooling media circulation provision
- Temperature monitoring provision
- Process addition connections
- Vent connection
- Bottom discharge outlet
- Suitable for batch processing
- Uniform product mixing
- Improved heat-transfer capability
- Pilot plant applications
- Custom process configurations available
Main Components
| Component | Function |
|---|---|
| Reactor Vessel | Holds the process material |
| External Jacket | Circulates heating or cooling medium |
| Agitator | Mixes the vessel contents |
| Drive Motor | Provides mechanical agitation |
| Stirrer Shaft | Transfers motor rotation to agitator |
| Temperature Provision | Enables process-temperature monitoring |
| Heating Media Connection | Supplies hot fluid to reactor jacket |
| Cooling Media Connection | Supplies cooling fluid to reactor jacket |
| Process Inlet | Allows charging of process material |
| Vent Connection | Provides process venting |
| Bottom Outlet | Allows final product or batch discharge |
Capacity Range
Up to 300 Litres
The Jacketed Mixing Reactor can be supplied in different capacities up to approximately 300 litres, depending on processing requirements.
Suitable configurations can be selected for:
- Laboratory scale-up
- Pilot plant studies
- Research batches
- Process development
- Small production batches
- Chemical processing
- Pharmaceutical processing
Working Principle
1. Material Charging
The required process materials are introduced into the reactor vessel through suitable charging or inlet connections.
2. Agitation
The motor drives the agitator, which continuously mixes the material inside the vessel.
3. Heating
When heating is required, a suitable hot medium is circulated through the external jacket. Heat is transferred indirectly through the vessel wall to the process material.
4. Cooling
For cooling applications, a suitable cooling medium is circulated through the jacket to remove heat from the process material.
5. Temperature Monitoring
A temperature-sensing provision allows the process temperature to be monitored during mixing and reaction operations.
6. Process Completion
Once the required mixing, reaction or temperature-controlled operation is complete, the processed material can be discharged through the bottom outlet.
Jacketed Heating & Cooling System
Heating Operation
The jacket surrounding the reactor can receive a suitable heating medium to raise and maintain the process temperature.
Cooling Operation
Cooling water or another suitable cooling medium can be circulated through the jacket when the process requires controlled cooling.
Indirect Heat Transfer
The jacket keeps the heating or cooling medium separate from the actual process material while transferring thermal energy through the vessel wall.
Mixing System
Motor-Driven Agitation
The motor-driven stirrer continuously moves the process material inside the reactor, promoting uniform mixing.
Improved Process Uniformity
Proper agitation can improve:
- Material distribution
- Heat transfer
- Component contact
- Dissolution
- Reaction uniformity
- Product consistency
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Jacketed Mixing Reactor |
| Equipment Type | Jacketed Stirred Process Reactor |
| Capacity | Up to 300 Litres |
| Operation | Batch / Process |
| Mixing System | Motor-Driven Agitator |
| Temperature Control | Jacket Assisted |
| Heating Provision | Available |
| Cooling Provision | Available |
| Temperature Monitoring | Provision Available |
| Process Charging | Suitable Inlet Connections |
| Vent | Provided |
| Discharge | Bottom Outlet |
| Application | Mixing, Heating, Cooling & Reaction |
Exact dimensions, vessel capacity, agitator type, motor rating, speed, material of construction, working temperature and pressure rating depend on the selected process configuration.
Benefits
- Mixing and temperature control in one system
- Suitable for heating and cooling processes
- Motorized agitation
- Promotes uniform mixing
- Improved heat transfer
- Capacity options up to 300 litres
- Suitable for batch processing
- Convenient bottom discharge
- Useful for process development
- Supports pilot-scale trials
- Suitable for multiple industries
- Customizable process configuration
Scope of Application
- Chemical Mixing
- Reaction Processing
- Liquid Blending
- Heating Processes
- Cooling Processes
- Dissolution
- Product Formulation
- Pharmaceutical Processing
- Pilot Plant Studies
- Process Development
- Research & Development
- Batch Manufacturing
Applications
- Chemical Industries
- Pharmaceutical Industries
- Fine Chemical Industries
- Specialty Chemical Processing
- Food Processing
- Cosmetic Processing
- Research Laboratories
- Pilot Plants
- Pharmaceutical R&D
- Process Development Laboratories
- Industrial Research Centers
- Small-Batch Production Facilities
Optional Configurations
- Different vessel capacities
- Different agitator designs
- Variable-speed drive
- Alternative motor ratings
- Different jacket configurations
- Temperature controller
- Digital temperature indication
- Vacuum provision
- Additional process nozzles
- Alternative materials of construction
- Customized supporting frame
- Process instrumentation
Frequently Asked Questions
What is a Jacketed Mixing Reactor?
A Jacketed Mixing Reactor is a process vessel equipped with an external jacket and mechanical agitator for controlled mixing, heating, cooling and reaction processing.
What is the maximum capacity available?
The shown range is available in capacities up to approximately 300 litres.
What is the purpose of the jacket?
The jacket allows a suitable heating or cooling medium to circulate around the vessel and control the temperature of the process material indirectly.
Does the reactor include an agitator?
Yes. The illustrated configuration includes a motor-driven stirring arrangement for continuous mixing.
Can it be used for both heating and cooling?
Yes. Suitable hot or cold media can be circulated through the jacket according to process requirements.
Does it have a bottom discharge?
Yes. A bottom outlet is provided for convenient removal of the processed material.
Can temperature be monitored?
Yes. The reactor can include a suitable temperature measurement provision for monitoring process conditions.
Is it suitable for pharmaceutical processing?
Yes. It can be configured for suitable pharmaceutical mixing, formulation, reaction and process-development applications.
Can it be used in pilot plants?
Yes. Its capacity range up to 300 litres makes it suitable for pilot studies, process development, scale-up and small-batch processing.
Can the reactor be customized?
Yes. Capacity, agitator, motor, vessel construction, jacket design, instrumentation, connections and supporting structure can be customized according to process requirements.
Why Choose Micro Technologies?
- Capacity up to 300 litres
- Jacketed heating and cooling
- Motor-driven agitation
- Controlled process mixing
- Bottom discharge arrangement
- Temperature monitoring provision
- Suitable for pilot plant applications
- Chemical and pharmaceutical use
- Custom process configurations
- Research and scale-up applications
- Industrial supply
- Technical assistance
Call to Action
Choose the Jacketed Mixing Reactor up to 300 L from Micro Technologies for controlled mixing, heating, cooling and reaction processing. Contact us with your required capacity, process material, operating temperature, agitation requirement and application for detailed specifications, customization and quotation.
