Inclined Plane Apparatus with Pulley
Product Specification Sheet
Inclined Plane Apparatus with Pulley
Model Number: MTM-97
The Inclined Plane Apparatus with Pulley from Micro Technologies is a complete mechanics setup designed for experiments involving friction, force, motion and mechanical advantage on an inclined surface. The MT-10567A features a 600 × 75 mm wooden inclined plane, pulley, hinged base, 0–45° angular scale, clamp, metal roller, two wooden blocks and scale pan with cord.
Product Specification
The Inclined Plane Apparatus with Pulley from Micro Technologies is designed for practical investigations of forces and motion on an inclined surface. The apparatus provides an adjustable plane that allows the relationship between applied force, load, inclination angle and friction to be studied under controlled laboratory conditions.

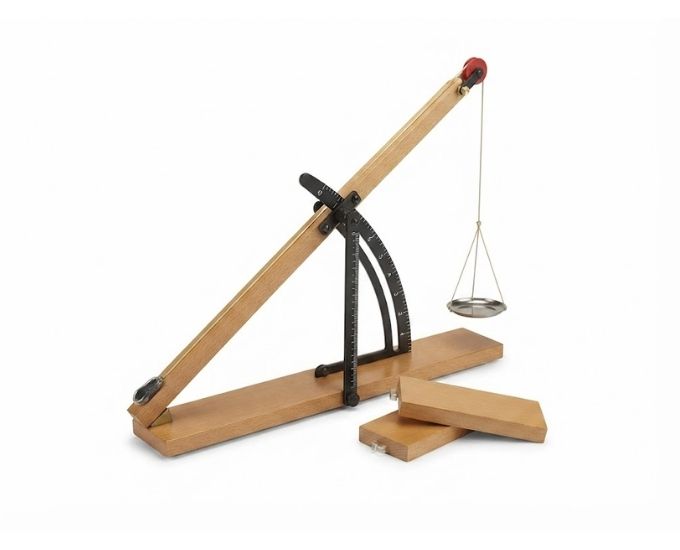

The MT-10567A incorporates an inclined wooden plane approximately 600 mm long × 75 mm wide. A pulley is mounted at one end of the plane, allowing loads on the inclined surface to be connected through a cord to a hanging scale pan.
The opposite end of the inclined plane is hinged to a wooden base, allowing the angle of inclination to be varied. This arrangement makes it possible to investigate how changing the slope affects the force required to move or balance an object.
A linear scale is fixed along the edge of the inclined plane for convenient measurement and reference during experiments. An additional 0–45° angular scale is mounted on the base for measuring the angle of inclination.
A clamp is incorporated into the setup and also serves as an index for the angular scale, providing convenient angle setting and indication during experimental work.
The apparatus is supplied with a metal roller approximately 60 × 25 mm, two wooden blocks and a scale pan with cord. These components allow different frictional and motion conditions to be investigated using the same inclined-plane arrangement.
The wooden blocks can be used to investigate sliding friction and limiting friction, while the roller can support experiments involving rolling motion. The scale pan and pulley arrangement enables known loads to be applied to the test object.
The apparatus can also be used to study the force components acting on a body on an inclined plane. For an object of mass m on a plane inclined at angle θ, the component of its weight acting parallel to the plane is:
F = mg sin θ
while the normal component is:
N = mg cos θ
These relationships make the apparatus useful for experiments involving equilibrium, coefficient of friction, mechanical advantage, resolution of forces and motion on an inclined surface.
Manufactured and supplied by Micro Technologies, the Inclined Plane Apparatus with Pulley is suitable for physics laboratories, mechanics laboratories, engineering laboratories, research facilities and other environments conducting force, friction and motion investigations.
Features
- Wooden inclined plane apparatus
- 600 × 75 mm plane
- Pulley fitted at one end
- Hinged wooden base
- Variable angle of inclination
- 0–45° angular scale
- Linear scale along inclined plane
- Clamp with angular index function
- Metal roller supplied
- Two wooden blocks supplied
- Scale pan with cord included
- Suitable for friction experiments
- Suitable for force and equilibrium investigations
- Simple mechanical operation
- No electrical power required
Benefits
- Allows controlled variation of inclination angle
- Supports practical friction measurements
- Demonstrates resolution of forces on an inclined surface
- Pulley and scale pan enable controlled loading
- Angular scale simplifies inclination measurement
- Linear scale assists position and distance observations
- Supplied blocks and roller enable multiple experiments
- Suitable for sliding and rolling-motion comparisons
- Requires no electrical power for operation
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Inclined Plane Apparatus with Pulley |
| Model No. | MT-10567A |
| Plane Material | Wood |
| Plane Size | 600 × 75 mm |
| Base | Wooden |
| Plane Mounting | Hinged |
| Pulley | Provided at One End |
| Linear Scale | Provided |
| Angular Scale | 0–45° |
| Angle Adjustment | Variable |
| Clamp | Provided |
| Metal Roller | Approx. 60 × 25 mm |
| Wooden Blocks | 2 |
| Scale Pan | Provided |
| Cord | Provided |
| Operation | Mechanical |
| Power Requirement | None |
Supplied Components
| Component | Details |
|---|---|
| Inclined Wooden Plane | 600 × 75 mm |
| Pulley | 1 |
| Metal Roller | 60 × 25 mm approx. |
| Wooden Blocks | 2 |
| Scale Pan | 1 |
| Cord | Provided |
| Angular Scale | 0–45° |
| Linear Scale | Provided |
| Clamp / Index | Provided |
Experimental Capabilities
| Experiment | Study |
|---|---|
| Inclined Plane | Motion on a slope |
| Friction | Sliding resistance |
| Limiting Friction | Threshold of motion |
| Coefficient of Friction | Surface friction analysis |
| Resolution of Forces | Parallel and normal components |
| Equilibrium | Balance of forces |
| Rolling Motion | Behaviour of roller on incline |
| Mechanical Advantage | Force reduction using inclined plane |
| Angle Variation | Effect of inclination on force |
Available Model
| Model No. | Product |
|---|---|
| MT-10567A | Inclined Plane Apparatus with Pulley |
Applications
- Inclined plane experiments
- Coefficient of friction determination
- Limiting friction experiments
- Sliding friction investigations
- Rolling-motion experiments
- Resolution of forces
- Equilibrium experiments
- Mechanical advantage investigations
- Effect of inclination angle
- Force and motion experiments
- Mechanics laboratory investigations
- Simple machine experiments
Available Variants
Inclined Plane Apparatus, Inclined Plane with Pulley, Wooden Inclined Plane, Friction Inclined Plane Apparatus, Adjustable Inclined Plane, Mechanics Inclined Plane Apparatus, Pulley and Inclined Plane Experiment Set
SKU System
MT-IPA-10567A
FAQs
What is the MT-10567A Inclined Plane Apparatus used for?
The MT-10567A is used for experiments involving friction, force, equilibrium, mechanical advantage and motion of objects on an inclined surface.
What is the size of the inclined plane?
The wooden plane measures approximately 600 mm × 75 mm.
What is the angular range of the apparatus?
The apparatus incorporates an angular scale covering approximately 0–45°.
Is a pulley provided with the apparatus?
Yes. A pulley is mounted at one end of the inclined plane for experiments using the supplied cord and scale pan.
What accessories are supplied?
The apparatus includes a 60 × 25 mm metal roller, two wooden blocks, scale pan with cord, pulley, linear scale and angular scale arrangement.
Can coefficient of friction be investigated?
Yes. The adjustable inclination and supplied blocks allow suitable experiments involving limiting friction and coefficient of friction to be performed.
Can rolling and sliding motion both be studied?
Yes. The wooden blocks can be used for sliding experiments, while the supplied metal roller allows suitable rolling-motion investigations.
Does the apparatus require electricity?
No. The MT-10567A is a completely mechanical laboratory apparatus.
