Half and Full Adder Using TTL Gates Trainer
Product Specification Sheet
Half and Full Adder Using TTL Gates Trainer
Model Number: MT-E130

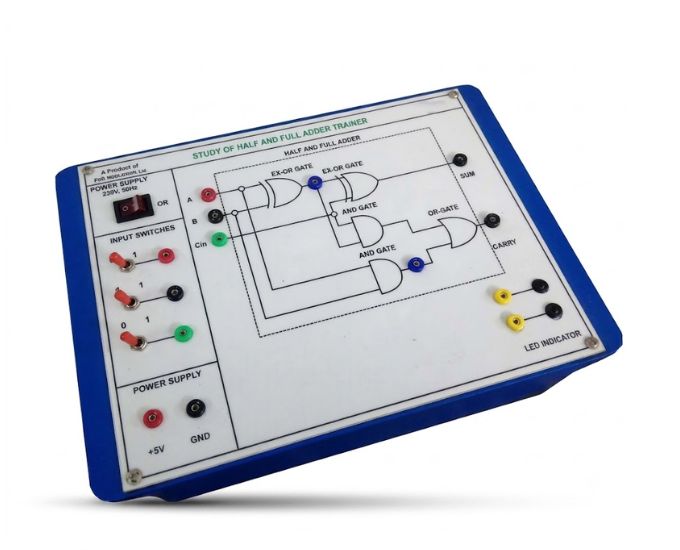

The Half and Full Adder Using TTL Gates Trainer is a professional laboratory training system designed for studying binary addition and combinational logic circuits using TTL gates. Manufactured by Micro Technologies, this trainer incorporates OR, AND, and Exclusive-OR gate circuits, logic input switches, output indicators, and practical arithmetic experiments, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The Half and Full Adder Using TTL Gates Trainer is specially designed to provide students with practical knowledge of binary arithmetic and combinational logic circuits through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the implementation and operation of Half Adder and Full Adder circuits using standard TTL logic gates, which are fundamental building blocks of digital computers, microprocessors, embedded systems, and arithmetic logic units.
The trainer allows students to study the operation of both Half Adder and Full Adder circuits, verify binary addition, analyze SUM and CARRY outputs, and understand how arithmetic operations are performed in digital electronic systems. Practical experiments enable learners to observe the relationship between binary inputs and output responses while verifying truth tables and Boolean expressions.
The trainer incorporates onboard AND, OR, and Exclusive-OR (XOR) gate circuits required for implementing Half Adder and Full Adder logic. Students can study gate-level implementation of binary addition without requiring external circuit assembly.
Three independent TTL logic input switches allow users to apply HIGH and LOW logic levels during experimentation. Each input includes an LED indicator for easy visualization of logic status. Two independent buffered logic level indicators display HIGH and LOW output conditions, allowing students to observe SUM and CARRY outputs accurately during binary addition experiments.
The trainer operates from a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of all onboard digital logic circuits. Carefully selected electronic components provide stable performance, accurate logic operation, and long operational life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and symbols for easy identification of logic gates and experimental terminals. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed inside a rugged ABS plastic cabinet designed for continuous educational use. Compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, and digital electronics training.
The Half and Full Adder Using TTL Gates Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, computer architecture laboratories, embedded systems laboratories, and research institutions.
Every Half and Full Adder Using TTL Gates Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of Half Adder using TTL gates
- Study of Full Adder using TTL gates
- Binary addition experiments
- Built-in AND gate circuits
- Built-in OR gate circuits
- Built-in Exclusive-OR (XOR) gate circuits
- Verification of SUM and CARRY outputs
- Three independent TTL logic inputs
- LED logic input indicators
- Two buffered HIGH/LOW logic indicators
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Clearly printed circuit diagrams
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates binary addition clearly
- Enhances understanding of combinational logic circuits
- Supports digital electronics laboratory education
- Simplifies Half and Full Adder experiments
- Easy laboratory setup
- Safe low-voltage operation
- Improves arithmetic circuit design skills
- Strengthens understanding of TTL logic gates
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Builds a strong foundation in digital electronics
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Half and Full Adder Using TTL Gates Trainer |
| Experiments | Half Adder & Full Adder |
| Logic Gates | AND, OR & Exclusive-OR (XOR) |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Inputs | Three Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Logic Indicators | Two Buffered HIGH/LOW Logic Indicators |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 10" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Computer Architecture Laboratories
- Embedded Systems Laboratories
- Electronics Laboratories
- Diploma Colleges
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Vocational Education
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-HFA-001
FAQs
What is the Half and Full Adder Using TTL Gates Trainer used for?
It is used to study Half Adder and Full Adder circuits, binary addition, and combinational logic using TTL gate circuits.
Which logic gates are provided on the trainer?
The trainer incorporates:
- AND Gates
- OR Gates
- Exclusive-OR (XOR) Gates
Which experiments can be performed?
Students can study:
- Half Adder Operation
- Full Adder Operation
- Binary Addition
- SUM Output Verification
- CARRY Output Verification
- Truth Table Verification
How many logic inputs are available?
The trainer provides three independent TTL logic input switches, each with LED indication.
How many output indicators are available?
The trainer includes two buffered HIGH/LOW logic output indicators for observing SUM and CARRY outputs.
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the Half and Full Adder Using TTL Gates Trainer be supplied in bulk?
Yes. Micro Technologies supplies Half and Full Adder Using TTL Gates Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
