Graham Coil Condenser for Laboratory Distillation
Product Specification Sheet

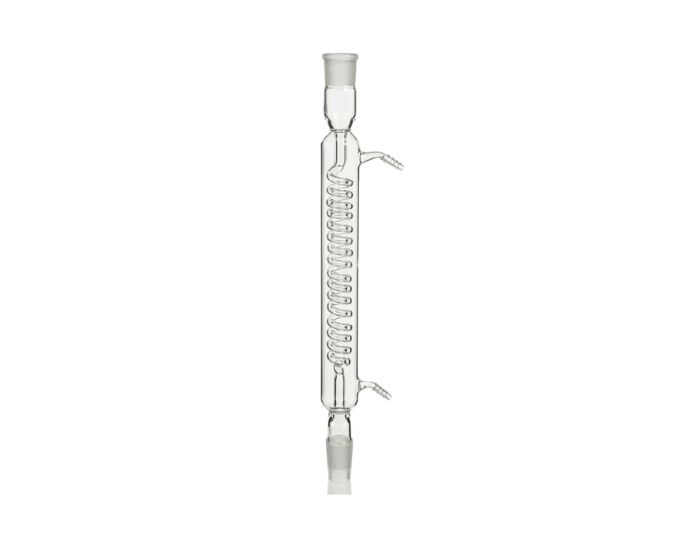

Graham Coil Condenser for Laboratory Distillation
Model Number: MTCD-003
The Graham Coil Condenser is a laboratory glassware component used in distillation, reflux, and vapor cooling applications requiring efficient condensation performance within scientific environments. Manufactured using durable borosilicate glass, this condenser supports dependable thermal resistance and reliable operation during continuous laboratory procedures. Micro Technologies supplies precision-crafted coil condensers suitable for chemical laboratories, pharmaceutical research facilities, educational institutes, and industrial testing centers. The coiled internal structure increases cooling efficiency by extending vapor contact surface area, making it suitable for analytical chemistry, solvent recovery, and scientific distillation systems. Its polished ground joints provide secure compatibility with standard laboratory apparatus assemblies.
Product Specification
The Graham Coil Condenser for Laboratory Distillation is widely used in laboratory distillation and reflux systems where enhanced vapor cooling efficiency is required during scientific procedures. Manufactured from premium borosilicate glass, this laboratory condenser offers dependable durability, strong resistance to thermal stress, and compatibility with a wide range of chemical laboratory applications.
The condenser features a coiled internal distillate pathway that increases the vapor cooling surface area, allowing efficient condensation during laboratory heating and separation procedures. This design supports improved cooling performance in analytical chemistry experiments, solvent purification systems, reflux operations, and pharmaceutical laboratory processing.
Its transparent borosilicate construction allows researchers and laboratory technicians to observe vapor movement and condensation behavior throughout the operation. The smooth internal coil structure supports efficient condensate flow while reducing residue buildup during repeated laboratory usage.
The Graham coil condenser integrates easily with standard ground glass joints, allowing secure assembly with laboratory flasks, adapters, and scientific distillation setups. Laboratories requiring stable cooling performance and dependable vapor condensation benefit from its precision manufacturing quality and durable construction under controlled operating conditions.
The product is suitable for universities, industrial laboratories, chemical processing units, research centers, and educational institutions performing continuous scientific analysis and laboratory distillation procedures. Its durable design supports long operational service life while reducing maintenance and replacement frequency in demanding laboratory environments.
Micro Technologies manufactures laboratory condenser glassware under strict quality inspection standards to support institutional procurement requirements and industrial laboratory expectations. The product combines precision engineering, reliable usability, and efficient laboratory cooling performance for professional scientific applications.
Features
- Manufactured from borosilicate glass 3.3
- Internal coiled distillate cooling design
- Precision-polished ground glass joints
- Suitable for distillation and reflux applications
- Enhanced vapor cooling efficiency
- Transparent body for process observation
- Smooth coil structure for condensate flow
- Excellent resistance to heat and chemicals
- Available in multiple effective lengths
- Compatible with standard laboratory setups
Benefits
- Improves vapor condensation efficiency
- Supports stable laboratory cooling performance
- Reduces operational interruptions during distillation
- Suitable for research and industrial applications
- Helps maintain efficient reflux procedures
- Compatible with standard scientific glassware systems
- Provides dependable long-term laboratory usability
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Graham Coil Condenser |
| Internal Model No. | MTCD-003 |
| Product Type | Laboratory Condenser Glassware |
| Material | Borosilicate Glass 3.3 |
| Socket Size | 14/23 to 29/32 |
| Cone Size | 14/23 to 29/32 |
| Effective Length | 160 mm to 400 mm |
| Condenser Type | Coiled Distillate Type |
| Color | Clear Transparent |
| Usage/Application | Distillation, Reflux & Vapor Cooling |
| Compliance Standard | DIN / ISO Laboratory Standards |
Available Variants
- 14/23 Socket – 14/23 Cone – 160 mm
- 19/26 Socket – 19/26 Cone – 160 mm
- 24/29 Socket – 24/29 Cone – 160 mm
- 19/26 Socket – 19/26 Cone – 250 mm
- 24/29 Socket – 24/29 Cone – 250 mm
- 29/32 Socket – 29/32 Cone – 250 mm
- 24/29 Socket – 24/29 Cone – 300 mm
- 29/32 Socket – 29/32 Cone – 300 mm
- 29/32 Socket – 29/32 Cone – 400 mm
SKU System
- MTCD-GC01
- MTCD-GC02
- MTCD-GC03
- MTCD-GC04
- MTCD-GC05
- MTCD-GC06
- MTCD-GC07
- MTCD-GC08
FAQs
What is a Graham coil condenser used for in laboratories?
A Graham coil condenser is used in laboratory distillation and reflux systems to efficiently cool vapors into liquid form during chemical processing and scientific experiments.
How does the coiled structure improve condenser performance?
The internal coil increases the cooling surface area, allowing more effective vapor condensation and improved cooling efficiency during laboratory operations.
Is this condenser suitable for continuous laboratory use?
Yes, the condenser is manufactured from borosilicate glass and is suitable for repeated laboratory heating, reflux, and vapor cooling procedures.
Can this condenser fit standard scientific glassware systems?
The precision ground glass joints support compatibility with commonly used laboratory distillation assemblies and scientific apparatus setups.
Do you provide multiple joint sizes and condenser lengths?
Yes, the product is available in various socket, cone, and effective length combinations to support different laboratory application requirements.
How should the Graham coil condenser be maintained?
The condenser should be cleaned using laboratory-approved cleaning solutions and stored carefully to maintain long-term laboratory usability and reliable operational performance.
Why Choose Our Products
- Precision-manufactured laboratory glassware
- Strict quality inspection standards
- Durable borosilicate glass construction
- Suitable for research and industrial laboratories
- Reliable support for institutional procurement requirements
Call to Action
Looking for reliable Graham coil condensers for laboratory distillation and reflux applications? Contact Micro Technologies for bulk inquiries, distributor partnerships, and customized quotations for scientific laboratory glassware and industrial research equipment.
