Full Adder Using Multiplexer IC Trainer
Product Specification Sheet
Full Adder Using Multiplexer IC Trainer

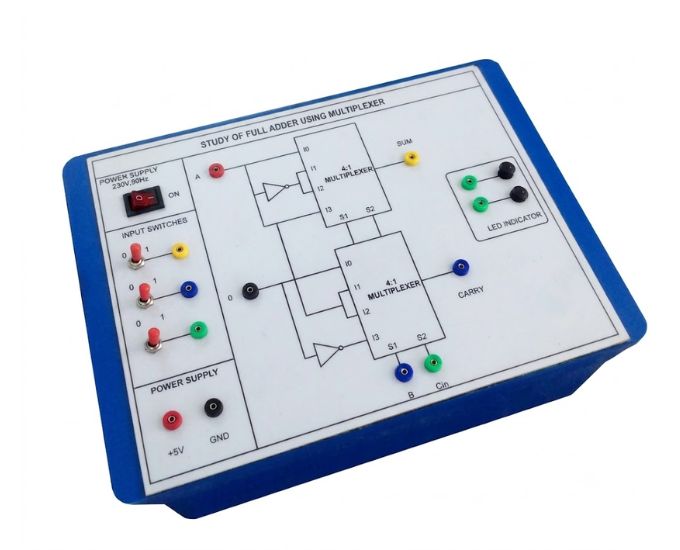

Model Number: MT-E379
The Full Adder Using Multiplexer IC Trainer is a professional laboratory training system designed for studying full adder implementation using multiplexer logic. Manufactured by Micro Technologies, this trainer features the IC 74153 dual multiplexer, logic level indicators, TTL inputs, and practical combinational logic experiments, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The Full Adder Using Multiplexer IC Trainer is specially developed to provide students with practical knowledge of combinational digital circuits through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the implementation of a full adder using multiplexers while strengthening concepts of Boolean logic, arithmetic circuits, and digital system design.
The trainer demonstrates how a Full Adder can be realized using a Dual 4-to-1 Multiplexer (IC 74153) instead of conventional logic gate implementation. Students can analyze the generation of SUM and CARRY outputs, observe input-output relationships, and verify truth tables through practical experimentation.
The trainer incorporates an onboard IC 74153 Dual Multiplexer together with supporting combinational logic circuitry, allowing learners to understand multiplexer-based arithmetic circuit design. The complete circuit is permanently mounted on the trainer panel, enabling easy experimentation without external assembly.
Three independent TTL logic input switches allow users to apply HIGH and LOW logic levels to the circuit. Each input is equipped with an LED indicator for easy visualization of logic status. Two independent buffered logic level indicators display the resulting HIGH and LOW output conditions, allowing students to verify SUM and CARRY outputs instantly.
The trainer operates from a regulated +5 V DC, 150 mA power supply, ensuring stable operation of the onboard digital integrated circuits. Carefully selected components provide reliable performance and accurate experimental results.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and symbols, enabling easy identification of circuit blocks and experimental terminals. Color-coded 4 mm safety sockets simplify laboratory wiring while reducing setup errors.
The trainer is enclosed inside a rugged ABS plastic cabinet designed for continuous educational use. Its compact tabletop construction makes it ideal for classroom demonstrations, laboratory practical sessions, and digital electronics training.
The Full Adder Using Multiplexer IC Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, electronics laboratories, and technical training organizations.
Every Full Adder Using Multiplexer IC Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of Full Adder using Multiplexer
- Built-in IC 74153 Dual Multiplexer
- Combinational logic circuit implementation
- SUM and CARRY output verification
- Three independent TTL logic inputs
- LED logic input indicators
- Two buffered HIGH/LOW logic indicators
- Truth table verification
- Arithmetic circuit experiments
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Clearly printed circuit diagrams
- Color-coded 4 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates multiplexer-based full adder implementation
- Enhances understanding of combinational logic circuits
- Simplifies digital arithmetic concepts
- Supports digital electronics laboratory education
- Easy laboratory setup
- Safe low-voltage operation
- Improves digital circuit design skills
- Reduces wiring complexity
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Strengthens practical digital electronics knowledge
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Full Adder Using Multiplexer IC Trainer |
| Experiment | Full Adder Using Multiplexer |
| Main IC | IC 74153 Dual 4-to-1 Multiplexer |
| Logic Inputs | Three Independent TTL Logic Inputs |
| Logic Indicators | Two Buffered HIGH/LOW Logic Indicators |
| Input Indicators | LED Logic Status Indicators |
| Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Circuit | Onboard Combinational Logic Circuit |
| Connection Type | 4 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 10" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Electronics Laboratories
- Diploma Colleges
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Vocational Education
- Faculty Demonstrations
- Research Laboratories
- Skill Development Programs
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (4 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-FAM-001
FAQs
What is the Full Adder Using Multiplexer IC Trainer used for?
It is used to study the implementation of a full adder using a multiplexer and understand combinational logic circuit design.
Which IC is provided on the trainer?
The trainer incorporates the IC 74153 Dual 4-to-1 Multiplexer.
Which experiments can be performed?
Students can study:
- Full Adder Implementation
- Multiplexer Operation
- SUM Output Verification
- CARRY Output Verification
- Truth Table Analysis
- Combinational Logic Design
What logic input facilities are available?
The trainer includes:
- Three independent TTL logic input switches
- LED logic input indicators
- Two buffered HIGH/LOW output indicators
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
How are circuit connections made?
All experimental connections are made through 4 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Where can this trainer be used?
It is widely used in engineering colleges, universities, polytechnic institutes, ITIs, digital electronics laboratories, and vocational training centers.
Can the Full Adder Using Multiplexer IC Trainer be supplied in bulk?
Yes. Micro Technologies supplies Full Adder Using Multiplexer IC Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
