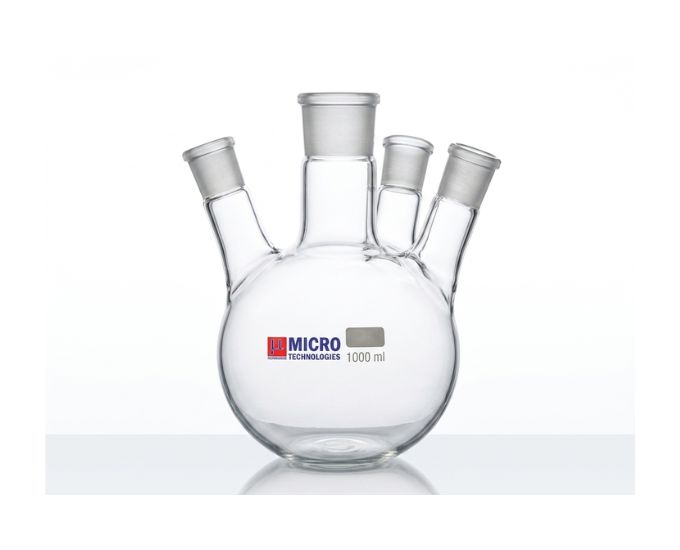

Four Neck Round Bottom Flask with Angled Joints for Advanced Laboratory Reaction Systems
Product Specification Sheet
Four Neck Round Bottom Flask with Angled Joints for Advanced Laboratory Reaction Systems
Model Number: MTBF-018
Micro Technologies offers four neck round bottom flasks designed for highly advanced laboratory reactions and distillation setups. Manufactured from premium borosilicate glass, these flasks provide excellent resistance to heat and chemicals. The four neck configuration allows simultaneous use of multiple apparatus, making them ideal for research laboratories, chemical industries, and industrial applications.
Product Specification
The Four Neck Round Bottom Flask with Angled Joints for Advanced Laboratory Reaction Systems from Micro Technologies is engineered for complex laboratory applications requiring multiple connections. Manufactured from high-quality borosilicate glass, this flask ensures superior resistance to thermal stress and chemical exposure, ensuring long-lasting durability.
The round bottom design provides uniform heat distribution, making it ideal for distillation and chemical reaction processes. It features one central vertical neck and three angled side necks positioned strategically for optimal accessibility. This design allows simultaneous attachment of multiple laboratory accessories such as condensers, thermometers, dropping funnels, and columns, significantly improving workflow efficiency.
The Four Neck Round Bottom Flask with Angled Joints for Advanced Laboratory Reaction Systems is widely used in research laboratories and industrial environments. Designed by Micro Technologies, it ensures reliable and consistent performance even in demanding conditions.
Features
- Four neck design for multi-apparatus connections
- One central vertical neck with three angled side necks
- Interchangeable joints for secure fitting
- Round bottom for uniform heating
- Manufactured from borosilicate glass
- High resistance to thermal shock and chemicals
- Suitable for complex distillation and reaction processes
Benefits
- Enables highly advanced experimental setups
- Improves efficiency in multi-step reactions
- Ensures safe and leak-proof connections
- Durable for long-term laboratory use
- Ideal for research and industrial applications
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Four Neck Round Bottom Flask |
| Model No. | MTBF-018 |
| Type | Boiling Flask (Round Bottom, Four Neck) |
| Material | Borosilicate Glass |
| Capacity Range | 50 ml to 20000 ml |
| Centre Joint Size | 24/29 to 55/44 |
| Side Joint Size | 14/23 to 24/29 |
| Design | One Vertical + Three Angled Necks |
| Usage | Distillation & Chemical Reactions |
Available Variants
- 50 ml (centre 24/29, side 24/29)
- 100 ml (centre 24/29, side 14/23 / 19/26)
- 250 ml (centre 24/29, side 14/23 / 19/26)
- 500 ml (centre 24/29 / 34/35, side 14/23 / 19/26 / 24/29)
- 1000 ml (centre 24/29 / 34/35, side 14/23 / 19/26 / 24/29)
- 2000 ml (centre 34/35, side 14/23 / 19/26 / 24/29)
- 3000 ml (centre 34/35, side 19/26 / 24/29)
- 5000 ml (centre 34/35, side 19/26 / 24/29)
- 10000 ml (centre 34/35 / 55/44, side 24/29)
- 20000 ml (centre 55/44, side 24/29)
FAQs
What is a four neck round bottom flask used for?
It is used for highly complex laboratory reactions where multiple instruments need to be connected simultaneously.
What is the advantage of four necks?
It allows simultaneous use of multiple apparatus such as condensers, thermometers, dropping funnels, and columns.
Why are the side necks angled?
Angled necks improve accessibility and positioning of attached equipment, enhancing safety and efficiency.
Do you offer bulk supply options?
Yes, Micro Technologies provides bulk supply solutions with consistent quality and timely delivery for laboratories and industrial buyers.
Why Choose Our Products
- High-quality borosilicate construction
- Durable and heat-resistant design
- Advanced multi-neck configurations
- Strong support for bulk buyers
