Force Table – Wall Type
Product Specification Sheet
Force Table – Wall Type
Model Number: MTM-16

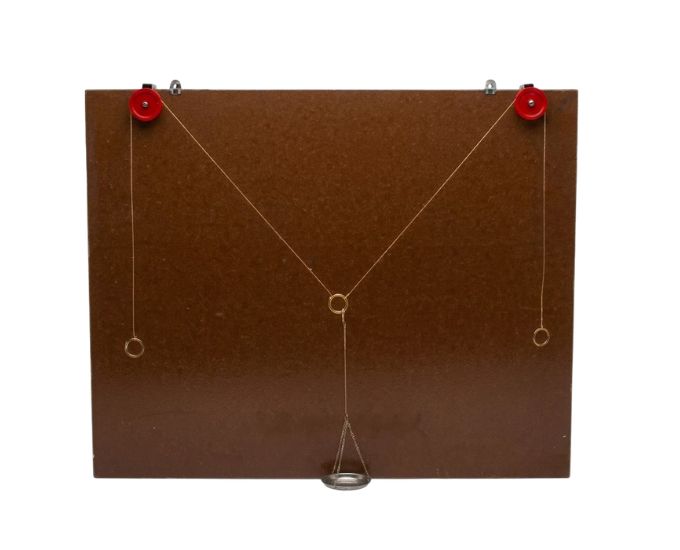

The Force Table – Wall Type from Micro Technologies is designed for practical demonstrations of the parallelogram and polygon laws of forces. It features a strong 750 × 600 mm drawing board fitted with brackets for wall mounting, along with pulleys and cords for arranging concurrent force systems. Clear space around the board edges allows convenient attachment and adjustment of pulleys.
Product Specification
The Force Table – Wall Type from Micro Technologies is a laboratory mechanics apparatus designed for practical investigation and demonstration of the parallelogram and polygon laws of forces. Its wall-mounted board arrangement provides a clear visual platform for studying the magnitude and direction of concurrent forces.
The apparatus incorporates a strong drawing board measuring approximately 750 × 600 mm. The large rectangular working surface provides sufficient space for arranging cords, pulleys and force lines in different configurations.
Brackets are fitted to the board to facilitate secure wall mounting. This vertical configuration makes the apparatus particularly useful for classroom demonstrations because the complete force arrangement can be viewed clearly from the front.
Clear space is maintained around the edges of the board to permit convenient attachment of pulleys at different positions. By changing pulley locations, the direction of individual forces can be varied according to the requirements of the experiment.
The apparatus is supplied with pulleys and cords for establishing different force arrangements. Cords can be directed over the pulleys and connected to suitable masses to produce controlled forces acting at a common point.
For demonstrating the parallelogram law of forces, two forces can be arranged at selected directions and compared with the force required to establish equilibrium. This provides a practical representation of vector addition.
The apparatus is also suitable for studying the polygon law of forces, where several concurrent forces are considered together. Experimental observations can be compared with graphical vector constructions performed on paper.
The board arrangement is especially convenient because paper can be attached to the board. Force directions can then be marked directly for graphical analysis, helping users compare the physical force system with its corresponding vector diagram.
The vertical force board can additionally support demonstrations involving composition, resolution and equilibrium of forces. Different pulley and load arrangements can be used to investigate how changes in magnitude or direction influence the overall force system.
Its open visual arrangement makes the apparatus useful for both individual practical work and instructor-led demonstrations in mechanics laboratories.
Suitable masses should be selected according to the experimental procedure and pulley arrangement. The specified configuration is supplied with pulleys, A3 paper and cords, but without masses.
Manufactured and supplied by Micro Technologies, the Force Table – Wall Type is suitable for physics laboratories, mechanics laboratories and scientific facilities requiring a clear and practical apparatus for studying vector forces and static equilibrium.
