Force Table
Product Specification Sheet
Force Table
Model Number: MTM-16

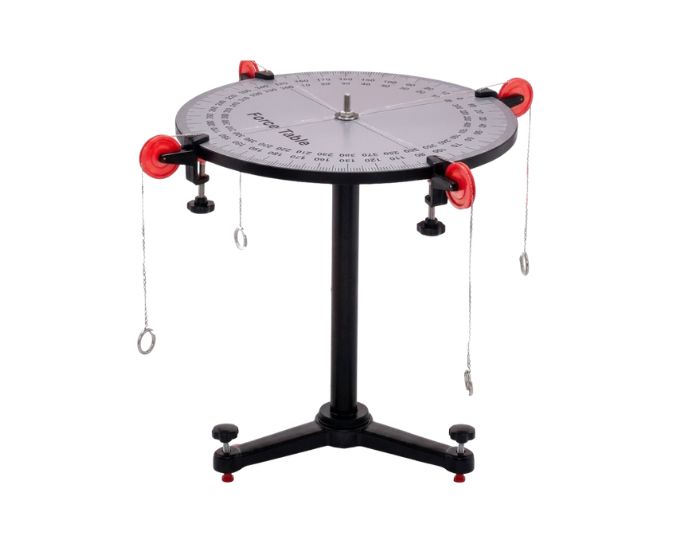

The Force Table from Micro Technologies is a laboratory apparatus designed for verifying the laws of composition and resolution of forces. It features a machined aluminium table approximately 40 cm in diameter, graduated through 360°, with a vertical support rod, tripod base, complete ring arrangement and four clamp pulleys. Four cords with rings at one end are supplied; masses are not included.
Product Specification
The Force Table from Micro Technologies is designed for practical investigations involving the composition, resolution and equilibrium of concurrent forces. It provides a convenient laboratory arrangement for studying vector addition and understanding how multiple forces acting at a common point combine to produce a resultant.
The apparatus incorporates a machined aluminium circular table approximately 40 cm in diameter. Its circular configuration provides a suitable working surface for arranging forces at different angular positions around a central point.
The table carries a 360° graduated scale, allowing the direction of each applied force to be established with reference to angular position. This makes the apparatus useful for comparing experimental force arrangements with graphical and mathematical vector calculations.
A complete ring arrangement is provided at the central region of the table. Cords connected to the ring can be directed over pulleys positioned around the circumference, enabling several forces to act simultaneously at selected angles.
The apparatus is supplied with four clamp pulleys. Their clamp-type mounting allows the pulleys to be positioned around the force table according to the angular requirements of the experiment.
A vertical support rod and tripod base provide support for the circular table during laboratory use. The arrangement creates a convenient elevated working position for cords and suspended loading systems.
Four cords with rings at one end are supplied with the apparatus. These cords can be incorporated into compatible experimental loading arrangements to apply forces through the central ring.
The Force Table is particularly useful for demonstrating the parallelogram law of forces, where two forces acting at an angle can be combined and compared with their resultant.
It can also support investigations involving the triangle and polygon laws of forces, depending on the selected experimental arrangement and number of applied forces.
For equilibrium experiments, several forces can be adjusted in magnitude and direction until the central ring reaches an equilibrium condition. The experimental values can then be compared with theoretical vector calculations.
The graduated circular scale allows users to resolve a force into appropriate directional components and investigate relationships between force magnitude and angular orientation.
By changing pulley positions and suspended loads, multiple force configurations can be created using the same apparatus. This makes the Force Table useful for a broad range of mechanics and vector-force demonstrations.
The apparatus is supplied without masses. Suitable laboratory masses or weight sets can be selected separately according to the experimental requirements.
Manufactured and supplied by Micro Technologies, the Force Table is suitable for physics laboratories, mechanics laboratories and scientific facilities requiring practical apparatus for vector, equilibrium and force-system experiments.
Features
- Machined aluminium force table
- Circular table approximately 40 cm diameter
- Full 360° graduated scale
- Designed for composition of forces
- Suitable for resolution of forces
- Central ring arrangement
- Four clamp pulleys
- Adjustable pulley positioning
- Vertical support rod
- Stable tripod base
- Four cords supplied
- Rings provided at one end of cords
- Suitable for vector-force experiments
- Convenient angular measurement
- Masses not included
Benefits
- Provides a practical demonstration of vector forces
- Supports composition and resolution experiments
- 360° graduation facilitates angular positioning
- Four pulleys allow multiple concurrent forces to be applied
- Central ring helps demonstrate force equilibrium
- Suitable for verifying theoretical vector calculations
- Supports different force configurations
- Aluminium table provides a rigid working platform
- Useful for mechanics and equilibrium studies
- Suitable for repeated laboratory demonstrations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Force Table |
| Product Type | Force & Vector Mechanics Apparatus |
| Table Material | Machined Aluminium |
| Table Diameter | Approx. 40 cm |
| Angular Scale | 0–360° |
| Graduation | Degree Scale |
| Support | Vertical Support Rod |
| Base | Tripod Base |
| Ring Arrangement | Complete |
| Number of Pulleys | 4 |
| Pulley Type | Clamp Pulley |
| Cords | 4 |
| Cord Attachment | Ring at One End |
| Masses | Not Included |
| Application | Composition & Resolution of Forces |
| Use | Physics / Mechanics Laboratory |
Applications
- Composition of forces
- Resolution of forces
- Equilibrium of concurrent forces
- Vector addition experiments
- Resultant force investigations
- Parallelogram law of forces
- Triangle law of forces
- Polygon law of forces
- Force component experiments
- Angular force investigations
- Static equilibrium experiments
- Mechanics laboratory practicals
- Vector mechanics demonstrations
- Physics laboratory experiments
Available Variants
Laboratory Force Table, Aluminium Force Table, Vector Force Table, Composition of Forces Apparatus, Resolution of Forces Apparatus, Equilibrium Force Table, Four Pulley Force Table, Mechanics Force Table
SKU System
MT-FT-Series
FAQs
What is a Force Table used for?
A Force Table is used to experimentally study composition, resolution, resultant and equilibrium of forces acting at different angles.
What is the diameter of the Force Table?
The machined aluminium table has a diameter of approximately 40 cm.
Is the Force Table graduated?
Yes. The circular table is graduated through 360°, allowing forces to be positioned at selected angular directions.
How many pulleys are supplied?
The apparatus is supplied with four clamp pulleys.
Can the pulleys be positioned at different angles?
Yes. The clamp pulley arrangement allows the pulleys to be positioned around the table according to the required experimental force directions.
How many cords are supplied?
The Force Table is supplied with four cords with rings at one end.
Are masses supplied with the Force Table?
No. The specified configuration is supplied without masses. Suitable laboratory weights can be selected separately.
Can it demonstrate the parallelogram law of forces?
Yes. The apparatus is suitable for practical investigations involving the parallelogram law and vector addition of forces.
Can the Force Table be used for equilibrium experiments?
Yes. Multiple forces can be arranged around the central ring to investigate static equilibrium of concurrent forces.
Where is a Force Table commonly used?
It is commonly used in physics and mechanics laboratories for practical experiments involving vectors, resultant forces, force components and equilibrium.
