Flooring Radiant Panel Test Apparatus
Product Specification Sheet
Flooring Radiant Panel Test Apparatus
Model Number: MTFT-03

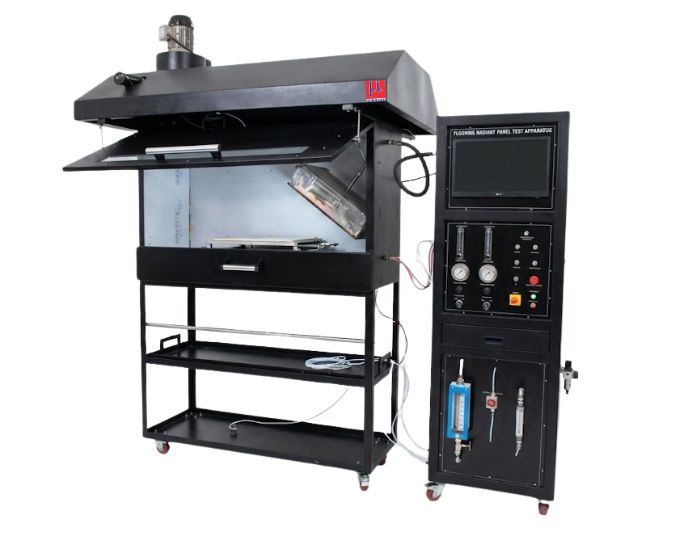

The Flooring Radiant Panel Test Apparatus from Micro Technologies is a professional fire-testing system designed to assess the flame spread behaviour and critical radiant flux of horizontally mounted flooring materials exposed to a controlled radiant heat gradient. The equipment is suitable for testing carpets, resilient flooring, floor coverings and other flooring products in accordance with applicable ISO 9239 series requirements.
Product Specification
The Flooring Radiant Panel Test Apparatus from Micro Technologies is designed for laboratory evaluation of the fire behaviour of flooring and floor-covering materials when exposed to controlled radiant heat. The system provides a standardized test environment for examining how flames develop and spread across the surface of a horizontally positioned specimen.
The apparatus uses a radiant panel positioned above the test specimen to establish a controlled heat-flux gradient along the specimen length. This arrangement simulates thermal exposure that flooring materials may experience during a developing fire.
During testing, the flooring specimen is mounted horizontally within the test chamber and exposed to the radiant energy field. After ignition under the prescribed test conditions, the progression of the flame front can be observed and evaluated along the specimen.
A primary parameter determined using the apparatus is critical radiant flux, which represents the radiant heat-flux level at the point where flame propagation ceases. This measurement provides useful quantitative information for comparing the fire performance of different flooring materials.
The apparatus also enables evaluation of flame spread distance and burning behaviour under controlled test conditions. Depending on the required configuration and applicable standard, additional measurements and monitoring arrangements can be incorporated into the system.
The enclosed testing section helps maintain controlled experimental conditions while providing suitable access for specimen installation and observation. The integrated control cabinet enables monitoring and adjustment of important operating parameters during testing.
The Flooring Radiant Panel Test Apparatus is suitable for evaluating a broad range of products including carpets, textile floor coverings, resilient flooring, laminate flooring, composite flooring materials and other floor-covering systems subject to the applicable test method.
Manufactured and supplied by Micro Technologies, the system is suitable for fire-testing laboratories, flooring manufacturers, building-material laboratories, certification facilities, research institutes, quality-control departments and product-development laboratories.
Features
- Radiant panel heating system
- Horizontal specimen testing arrangement
- Controlled radiant heat-flux gradient
- Designed for flooring fire-performance testing
- Critical radiant flux evaluation
- Flame spread observation
- Controlled ignition arrangement
- Enclosed test section
- Integrated control panel
- Suitable instrumentation for test monitoring
- Robust laboratory construction
- Suitable for repeatable fire testing
- Configurable according to applicable test requirements
Benefits
- Provides quantitative evaluation of flooring fire behaviour
- Determines critical radiant flux under controlled conditions
- Enables comparison of different flooring materials
- Supports flame spread assessment
- Controlled radiant exposure improves test consistency
- Useful for product development and quality control
- Suitable for building-material fire research
- Supports regulatory and certification-oriented laboratory testing
Typical Parameters Measured
| Parameter | Evaluation |
|---|---|
| Critical Radiant Flux | Radiant Flux at Flame Extinguishment |
| Flame Spread | Distance / Behaviour |
| Radiant Heat Exposure | Controlled Heat-Flux Gradient |
| Flame Front | Progression Along Specimen |
| Burning Behaviour | Visual / Test-Based Evaluation |
| Test Duration | Time-Based Monitoring |
| Specimen Orientation | Horizontal |
| Material Type | Flooring & Floor Coverings |
Exact measuring ranges, instrumentation, gas system, chamber configuration and data acquisition options depend on the required test standard and system specification.
Applicable Testing Standard
The Flooring Radiant Panel Test Apparatus can be configured for testing according to the ISO 9239 series, subject to the specified system configuration and test requirements.
Applications
- Flooring flame spread testing
- Critical radiant flux measurement
- Carpet fire testing
- Textile floor-covering testing
- Resilient flooring evaluation
- Laminate flooring fire testing
- Composite flooring assessment
- Building-material fire testing
- Product development
- Comparative material testing
- Fire-safety research
- Quality-control testing
- Certification laboratory testing
Industries Served
Flooring Manufacturers, Carpet Industry, Building Materials Industry, Construction Sector, Fire Testing Laboratories, Material Testing Laboratories, Certification Laboratories, Research Institutes, Quality Control Departments, Product Development Centers
Available Variants
Flooring Radiant Panel Tester, Flooring Radiant Panel Test Apparatus, Radiant Panel Flame Spread Tester, Critical Radiant Flux Tester, Flooring Flammability Tester, Floor Covering Fire Tester, Radiant Heat Flooring Tester
FAQs
What is a Flooring Radiant Panel Test Apparatus used for?
It is used to evaluate the flame spread behaviour and critical radiant flux of flooring and floor-covering materials exposed to a controlled radiant heat gradient.
What is critical radiant flux?
Critical radiant flux is the radiant heat-flux level corresponding to the point where flame propagation stops under the specified test conditions.
What materials can be tested?
Depending on the applicable standard, the apparatus can be used for carpets, textile floor coverings, resilient flooring, laminate flooring and other suitable flooring materials.
What is the specimen orientation during testing?
The flooring specimen is tested in a horizontal orientation while being subjected to a controlled radiant heat-flux gradient.
Can flame spread be evaluated with this equipment?
Yes. The apparatus is specifically designed to evaluate the progression and spread of flame across a flooring specimen under controlled radiant exposure.
Is the equipment suitable for ISO 9239 testing?
Yes. The system can be configured according to applicable requirements of the ISO 9239 series, depending on the required test configuration.
Is the apparatus suitable for commercial fire-testing laboratories?
Yes. It is suitable for professional fire-testing, material research, quality control, product development and certification-oriented laboratory applications.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Professional flooring fire-testing solution
- Critical radiant flux measurement capability
- Controlled radiant heat exposure
- Suitable for multiple flooring material types
- Configurable to applicable testing requirements
- Suitable for research and industrial laboratories
- OEM, institutional and customized supply available
Call to Action
Upgrade your fire-testing facility with the Flooring Radiant Panel Test Apparatus from Micro Technologies for reliable evaluation of flooring flame spread and critical radiant flux. Share your required test standard, specimen type and technical requirements with us for system configuration, competitive pricing, institutional procurement, OEM supply and customized quotations.
