Flash Type Analog to Digital (A/D) Converter Trainer Using Parallel Comparator
Product Specification Sheet
Flash Type Analog to Digital (A/D) Converter Trainer Using Parallel Comparator

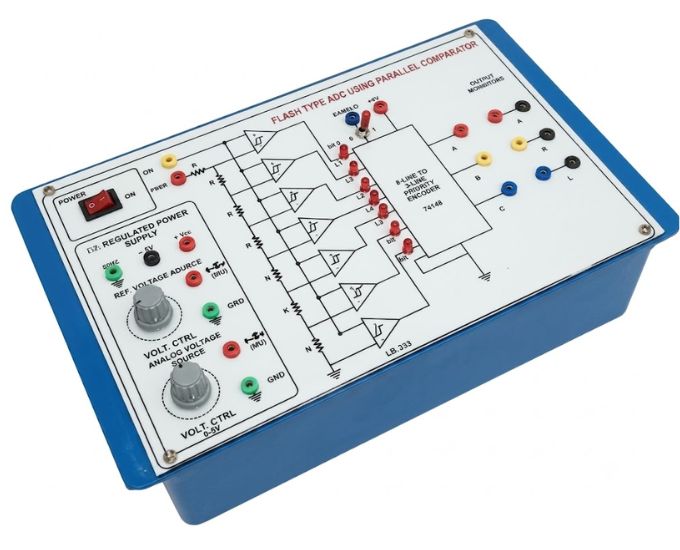

Model Number: MT-E080B
The Flash Type Analog to Digital (A/D) Converter Trainer Using Parallel Comparator is a professional laboratory training system designed for studying high-speed flash analog-to-digital conversion techniques. Manufactured by Micro Technologies, this trainer incorporates LM339 parallel comparator circuits, priority encoder, clock circuitry, reference voltage generation, and practical ADC experiments, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and instrumentation laboratories.
Product Specification
The Flash Type Analog to Digital (A/D) Converter Trainer Using Parallel Comparator is specially designed to provide students with practical knowledge of high-speed analog-to-digital conversion through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the operation of Flash ADC architecture, one of the fastest analog-to-digital conversion techniques used in modern communication systems, digital signal processing, instrumentation, radar systems, video processing, and embedded electronics.
The trainer allows students to study the complete operation of a 3-Bit Flash Type Analog to Digital Converter using multiple parallel comparators and a priority encoder. Through practical experimentation, learners can understand analog signal sampling, reference voltage generation, comparator operation, encoder functionality, and binary output generation.
The trainer incorporates an onboard LM339 Parallel Comparator network that simultaneously compares the input analog voltage against multiple reference levels. The comparator outputs are processed by the onboard 74148 Priority Encoder, which generates the corresponding binary digital output representing the input analog signal.
The trainer provides a regulated 0–5 V DC reference voltage supply and a separate 0–5 V DC variable analog voltage source for applying different analog input signals during conversion experiments. These onboard supplies eliminate the need for additional external voltage sources during laboratory practical sessions.
A built-in sampling circuit operates at approximately 64 kHz, enabling students to understand high-speed sampling techniques and Flash ADC operation under realistic laboratory conditions.
Eight independent buffered logic level indicators display HIGH and LOW logic states generated by the encoder, while three digital output indicators display the converted 3-bit binary output. The complete Flash ADC block diagram is permanently printed on the front panel to simplify learning and experimental verification.
The trainer operates using a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of all onboard digital and analog circuits. Carefully selected electronic components provide stable performance, accurate conversion, and long operational life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed block diagrams, circuit symbols, and functional layouts for easy understanding of Flash ADC architecture. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed inside a rugged ABS plastic cabinet designed for continuous educational use. Compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, instrumentation laboratories, and digital electronics training.
The Flash Type Analog to Digital Converter Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, instrumentation laboratories, communication laboratories, embedded systems laboratories, electronics laboratories, digital electronics laboratories, and research institutions.
Every Flash Type Analog to Digital Converter Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of 3-Bit Flash Type Analog to Digital Conversion
- Parallel comparator architecture
- Built-in LM339 comparator network
- Built-in 74148 priority encoder
- High-speed Flash ADC experiments
- Approximately 64 kHz sampling frequency
- Regulated 0–5 V reference voltage supply
- Variable 0–5 V analog input source
- Eight buffered logic level indicators
- Three-bit digital output indicators
- Printed Flash ADC block diagram
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates Flash ADC operation clearly
- Enhances understanding of high-speed analog-to-digital conversion
- Supports instrumentation and digital electronics laboratories
- Simplifies comparator-based conversion analysis
- Provides real-time binary output observation
- Easy laboratory setup
- Safe low-voltage operation
- Improves understanding of parallel comparator architecture
- Strengthens practical ADC concepts
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Flash Type Analog to Digital (A/D) Converter Trainer Using Parallel Comparator |
| ADC Type | 3-Bit Flash ADC |
| Comparator IC | LM339 Parallel Comparator |
| Encoder IC | 74148 Priority Encoder |
| Sampling Frequency | Approximately 64 kHz |
| Reference Voltage | 0–5 V DC |
| Analog Input Source | 0–5 V DC Variable |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Indicators | Eight Buffered HIGH/LOW Indicators |
| Digital Output | Three Output Indicators |
| Circuit Board | High-Quality Insulated PCB |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Instrumentation Laboratories
- Digital Electronics Laboratories
- Communication Laboratories
- Embedded Systems Laboratories
- Electronics Laboratories
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Research Laboratories
- Signal Processing Laboratories
Optional Accessories
- Digital Multimeter
- Oscilloscope
- Function Generator
- Regulated DC Power Supply
- Logic Probe
- Patch Cords (2 mm)
- Electronics Tool Kit
- Breadboard Trainer Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-FADC-001
FAQs
What is the Flash Type Analog to Digital Converter Trainer used for?
It is used to study high-speed Flash analog-to-digital conversion using parallel comparator architecture and priority encoding.
Which ICs are provided on the trainer?
The trainer incorporates:
- LM339 Parallel Comparator
- 74148 Priority Encoder
Which experiments can be performed?
Students can study:
- Flash ADC Operation
- Parallel Comparator Operation
- Priority Encoder Function
- High-Speed Analog-to-Digital Conversion
- Binary Output Verification
- Sampling Techniques
What is the ADC resolution?
The trainer demonstrates a 3-bit Flash Type Analog-to-Digital Converter.
What sampling frequency is provided?
The trainer provides an onboard sampling frequency of approximately 64 kHz.
What analog voltage sources are available?
The trainer includes:
- 0–5 V DC Reference Voltage Supply
- 0–5 V DC Variable Analog Input Source
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the Flash Type Analog to Digital Converter Trainer be supplied in bulk?
Yes. Micro Technologies supplies Flash Type Analog to Digital Converter Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
