Diffraction Grating Demonstration Set
Product Specification Sheet
Diffraction Grating Demonstration Set
Model Number: MTO-32

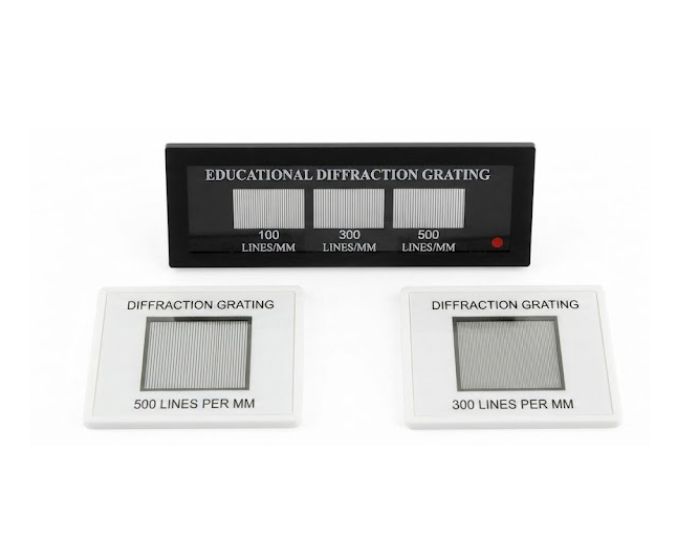

The Diffraction Grating Demonstration Set is a compact optical apparatus for investigating diffraction and observing how grating line density influences the resulting light pattern. Micro Technologies supplies the unit with three diffraction gratings having approximately 100, 300, and 600 lines per millimetre. Each grating is mounted in a card frame measuring approximately 90 × 40 mm with a clear aperture of about 16 × 9 mm, providing convenient handling and positioning during experiments. Protective cover glasses help safeguard the grating surfaces from routine handling and environmental exposure. By comparing gratings with different line densities, users can investigate changes in diffraction angle, spectral separation, and wavelength-dependent behaviour in physics and optics laboratory experiments.
Product Specification
The Diffraction Grating Demonstration Set provides a straightforward way to investigate one of the fundamental wave properties of light—diffraction. The set contains three gratings with different line densities, allowing direct comparison of how the number of lines per unit length affects the observed diffraction pattern.
Each grating consists of a large number of closely spaced parallel lines. When suitable light passes through the grating, interference between the emerging waves produces characteristic diffraction patterns. Changing the grating spacing changes the angular position and separation of the resulting orders, making comparative observation particularly useful for understanding the relationship between wavelength, grating spacing, and diffraction angle.
Micro Technologies supplies the Diffraction Grating Demonstration Set with nominal grating densities of approximately 100 lines/mm, 300 lines/mm, and 600 lines/mm. This range provides clearly differentiated grating spacings for comparative optical investigations.
Each diffraction grating is mounted in a card frame measuring approximately 90 × 40 mm. The working aperture is approximately 16 × 9 mm, providing a defined optical area while the surrounding frame makes the delicate grating easier to handle and position.
Protective cover glasses are incorporated to reduce direct contact with the grating surfaces. This improves durability during repeated laboratory use and helps protect the fine optical structure from fingerprints, dust, and accidental handling damage.
The set can be used with a suitable monochromatic or spectral light source to observe diffraction orders and investigate wavelength-related effects. With three grating densities in one compact set, it provides a convenient and economical solution for wave-optics investigations and laboratory procurement.
Features
- Three diffraction gratings supplied in one set
- Approx. 100 lines/mm grating
- Approx. 300 lines/mm grating
- Approx. 600 lines/mm grating
- Card-mounted construction for convenient handling
- Approximate card size of 90 × 40 mm
- Approximate clear aperture of 16 × 9 mm
- Protective cover glasses
- Supports comparative diffraction investigations
- Suitable for wavelength and wave-optics experiments
Benefits
- Three line densities allow direct comparison of diffraction behaviour
- Helps investigate the relationship between wavelength and diffraction angle
- Protective covers improve grating durability
- Card mounting simplifies positioning and handling
- Compact set requires minimal storage space
- Multiple gratings reduce separate accessory procurement
- Provides long-term value for optics laboratory installations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Diffraction Grating Demonstration Set |
| Internal Model No. | MT-30677 |
| Product Type | Optical Diffraction Grating Set |
| Number of Gratings | 3 |
| Grating 1 | Approx. 100 lines/mm |
| Grating 2 | Approx. 300 lines/mm |
| Grating 3 | Approx. 600 lines/mm |
| Card Mount Size | Approx. 90 × 40 mm |
| Clear Aperture | Approx. 16 × 9 mm |
| Protection | Cover glasses |
| Optical Principle | Diffraction and interference |
| Accuracy / Tolerance | Laboratory-grade grating specification |
| Calibration Standard | Grating density as specified |
| Stopper Type | Not applicable |
| Color | As supplied |
| Usage / Application | Diffraction, wavelength and wave-optics investigations |
| Compliance Standard | Laboratory-grade optical construction |
Available Variants
- MT-30677 – Complete 3-Grating Demonstration Set
- 100 lines/mm Diffraction Grating
- 300 lines/mm Diffraction Grating
- 600 lines/mm Diffraction Grating
- Customized grating combinations for bulk requirements
SKU System
- MT-DGS-100 – 100 Lines/mm Grating
- MT-DGS-300 – 300 Lines/mm Grating
- MT-DGS-600 – 600 Lines/mm Grating
- MT-DGS-3SET – Complete Three-Grating Set
- MT-DGS-CUS – Customized Grating Set
