Corner Cube Reflector
Product Specification Sheet
Corner Cube Reflector
Model Number: MTO-16

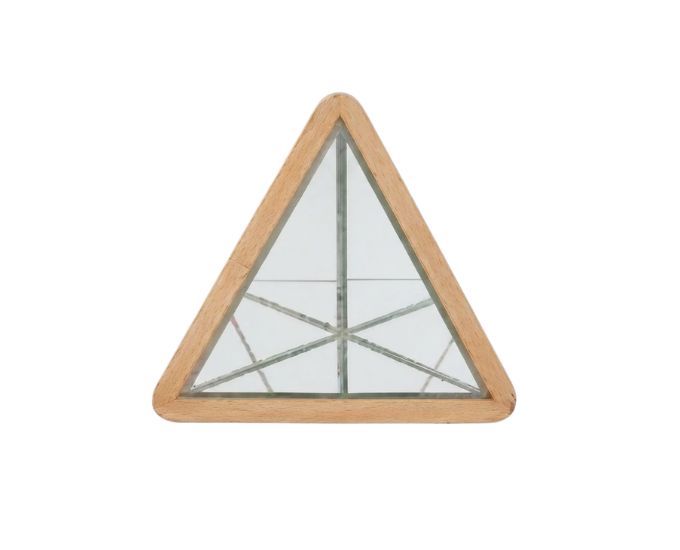

The Corner Cube Reflector is an optical apparatus used to demonstrate reflection and retroreflection using three mutually arranged mirror surfaces. Micro Technologies supplies the unit with three front-surface triangular mirrors positioned at right angles to one another and mounted on a sturdy hardwood base. This geometry allows an incoming light beam to undergo multiple reflections and return approximately toward its original source direction over a useful range of incident angles. The apparatus provides a practical way to investigate the principles behind corner reflectors and retroreflective optical systems. Its open triangular construction also allows the mirror arrangement and light path to be observed conveniently. The unit is suitable for physics laboratories, optics experiments, universities, colleges, research facilities, laboratory demonstration setups, and institutional procurement.
Product Specification
The Corner Cube Reflector is a specialized optical apparatus used to demonstrate multiple reflection and the principle of retroreflection. Its distinctive configuration consists of three triangular reflecting surfaces positioned mutually at right angles, forming a three-dimensional corner arrangement.
When a suitable beam of light enters the reflector, it is successively reflected from the mirror surfaces. Because of the geometry of the three perpendicular reflecting planes, the outgoing beam is directed approximately back toward the direction from which it arrived. This behaviour distinguishes a corner reflector from an ordinary plane mirror, where the direction of the reflected ray depends directly on the angle of incidence.
Micro Technologies supplies the Corner Cube Reflector with three front-surface triangular mirrors mounted on a hardwood base. Front-surface mirrors place the reflective coating at the exposed optical surface, helping reduce secondary reflections that can occur when light must first pass through a glass layer before reaching a conventional rear reflective coating.
The apparatus can be incorporated into experiments involving the laws of reflection, multiple reflections, ray direction, angular relationships, and retroreflection. Its open construction makes the arrangement of the three reflecting planes readily visible, allowing the relationship between mirror orientation and returned light direction to be examined practically.
A suitable narrow light beam can be directed toward any of the three mirror surfaces from different positions within the working angular range. The resulting reflected path provides a clear demonstration of why corner-cube arrangements are used in optical surveying, ranging, alignment, and retroreflective systems.
With its rigid hardwood mounting, three-mirror geometry, reusable construction, and straightforward operation, the Corner Cube Reflector provides a practical optical apparatus for laboratories requiring a clear demonstration of retroreflection principles.
Features
- Three triangular reflecting mirror surfaces
- Mirrors positioned mutually at right angles
- Front-surface mirror construction
- Demonstrates the principle of retroreflection
- Supports multiple-reflection investigations
- Mounted on a sturdy hardwood base
- Open geometry allows convenient observation
- Suitable for different incident beam directions
- No electrical power required
- Reusable optical apparatus for repeated laboratory operation
Benefits
- Clearly demonstrates how a corner reflector returns light
- Three-mirror configuration supports practical multiple-reflection studies
- Front-surface mirrors improve optical reflection clarity
- Hardwood mounting provides dependable structural support
- Helps relate reflection theory to practical retroreflective systems
- Minimal operating requirements provide good long-term value
- Suitable for laboratory kits and bulk institutional procurement
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Corner Cube Reflector |
| Internal Model No. | MT-30312 |
| Product Type | Optical Retroreflector Apparatus |
| Number of Mirrors | 3 |
| Mirror Shape | Triangular |
| Mirror Type | Front-surface |
| Mirror Arrangement | Mutually perpendicular / right-angle configuration |
| Base Material | Hardwood |
| Optical Principle | Multiple reflection and retroreflection |
| Light Source | External suitable light beam |
| Power Requirement | None |
| Accuracy / Tolerance | Laboratory-grade mirror alignment |
| Calibration Standard | Alignment verification as required |
| Stopper Type | Not applicable |
| Usage / Application | Reflection, retroreflection and ray-optics experiments |
| Compliance Standard | Laboratory-grade optical and manufacturing quality |
Available Variants
- Standard Corner Cube Reflector
- Corner Cube Reflector with three front-surface mirrors
- Corner Reflector with light-source accessories
- Complete retroreflection experiment set
- Custom laboratory configuration for bulk requirements
SKU System
- MT-CCR-STD – Standard Corner Cube Reflector
- MT-CCR-3M – Three-Mirror Configuration
- MT-CCR-FSM – Front-Surface Mirror Configuration
- MT-CCR-SET – Complete Reflection Experiment Set
- MT-CCR-CUS – Customized Corner Reflector
FAQs
What is a Corner Cube Reflector used for?
A Corner Cube Reflector is used to investigate multiple reflection and retroreflection. It demonstrates how a specially arranged set of mirrors can return an incoming light beam approximately toward its source direction.
How many mirrors are used in the apparatus?
The apparatus incorporates three triangular mirrors. These reflective surfaces are positioned at right angles to one another to create the characteristic corner-reflector geometry.
How does a Corner Cube Reflector work?
An incoming beam undergoes successive reflections from the mutually perpendicular mirror surfaces. The geometry reverses the beam direction so that it travels approximately back toward its source.
What type of mirrors are provided?
The apparatus uses front-surface triangular mirrors. The reflective surface is positioned at the front rather than behind a glass layer, which helps reduce unwanted secondary reflections.
What is the purpose of the hardwood base?
The hardwood base provides rigid mechanical support for the three-mirror arrangement. Maintaining the correct relationship between the reflecting surfaces is important for demonstrating retroreflection effectively.
Can light enter the reflector at different angles?
Yes. A key characteristic of the corner reflector is its ability to return suitable incoming rays toward their source direction over a useful range of incidence directions.
What experiments can be performed with this apparatus?
It supports investigations involving reflection, multiple reflections, ray direction, perpendicular mirror planes, angular relationships, and the principle of retroreflection.
Does the Corner Cube Reflector require calibration?
Routine calibration is generally unnecessary for basic demonstrations. However, the mirror alignment should be checked if accurate optical investigations are required or if the apparatus has experienced mechanical impact.
How should the mirror surfaces be maintained?
Front-surface mirrors require careful handling because the reflective layer is exposed. Dust should be removed gently, and abrasive cloths, fingerprints, and aggressive cleaning materials should be avoided.
Can Corner Cube Reflectors be ordered in bulk?
Yes. Bulk quantities can be supplied for physics laboratories, optics laboratories, universities, colleges, research facilities, scientific equipment distributors, and institutional procurement.
Can the apparatus be customized?
Certain mirror dimensions, mounting arrangements, bases, or complete experiment configurations may be customized depending on quantity and manufacturing feasibility.
How is the reflector packed for transportation?
The mirror surfaces, edges, and supporting structure are carefully protected against impact and scratching. Suitable additional packaging can be arranged for bulk and export shipments.
