Code Converters Trainer (Grey, Binary & Excess-3)
Product Specification Sheet
Code Converters Trainer (Grey, Binary & Excess-3)

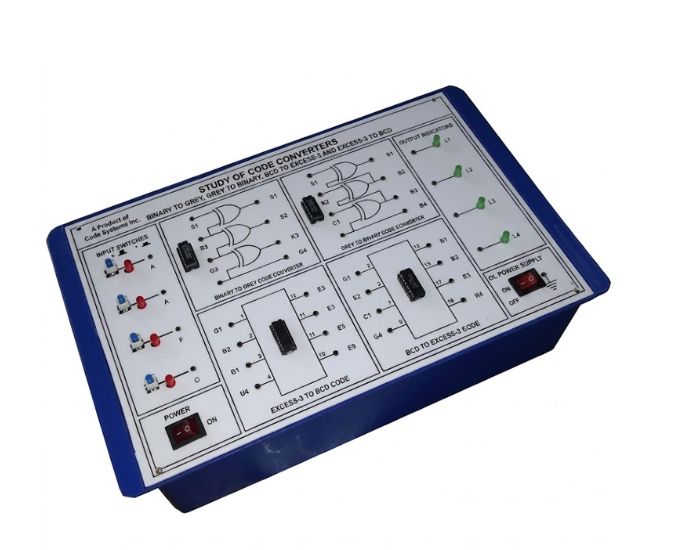

Model Number: MT-E112
The Code Converters Trainer (Grey, Binary & Excess-3) is a professional laboratory training system designed for studying digital code conversion techniques. Manufactured by Micro Technologies, this trainer enables practical experiments on Binary to Grey, Grey to Binary, Binary to Excess-3, and Excess-3 to Binary code conversion, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The Code Converters Trainer (Grey, Binary & Excess-3) is specially designed to provide students with practical knowledge of digital code conversion techniques through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the conversion of different binary codes widely used in digital electronics, computer systems, communication systems, embedded applications, and microprocessor-based designs.
The trainer allows students to perform practical verification of Binary to Grey Code Conversion, Grey Code to Binary Conversion, Binary to Excess-3 Code Conversion, and Excess-3 to Binary Code Conversion. Through experimentation, learners can analyze the relationship between various coding schemes, understand code conversion logic, verify truth tables, and study combinational logic implementation.
The trainer incorporates dedicated code conversion circuits permanently mounted on the front panel, allowing students to perform experiments without external circuit assembly. Practical demonstrations help learners understand the importance of different coding systems in digital communication, error reduction, data representation, and processor-based applications.
Four independent TTL logic input switches allow users to apply HIGH and LOW logic levels to the converter circuits. Each input is equipped with an LED indicator for easy visualization of input logic states. Four independent buffered logic level indicators display HIGH and LOW output conditions, allowing students to observe converted outputs in real time.
The trainer operates from a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of the onboard digital logic circuits. Carefully selected electronic components provide stable performance, accurate code conversion, and long operational life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams, truth tables, and logic symbols for easy understanding of each code conversion technique. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed in a rugged ABS plastic cabinet designed for continuous educational use. Its compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, and digital electronics training.
The Code Converters Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, communication laboratories, embedded systems laboratories, computer architecture laboratories, and research institutions.
Every Code Converters Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of Binary to Grey Code conversion
- Study of Grey Code to Binary conversion
- Study of Binary to Excess-3 conversion
- Study of Excess-3 to Binary conversion
- Built-in code converter circuits
- Verification of digital code conversion
- Four independent TTL logic inputs
- LED logic input indicators
- Four buffered logic output indicators
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Permanently printed circuit diagrams
- Printed truth tables for reference
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates digital code conversion clearly
- Enhances understanding of coding techniques
- Supports digital electronics laboratory education
- Simplifies combinational logic experiments
- Easy laboratory setup
- Safe low-voltage operation
- Improves understanding of digital communication systems
- Helps verify truth tables practically
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Strengthens practical digital electronics skills
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Code Converters Trainer (Grey, Binary & Excess-3) |
| Experiments | Binary ↔ Grey, Binary ↔ Excess-3 |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Logic Inputs | Four Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Logic Indicators | Four Buffered HIGH/LOW Logic Indicators |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 12" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Computer Architecture Laboratories
- Communication Laboratories
- Embedded Systems Laboratories
- Electronics Laboratories
- Diploma Colleges
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-CCT-001
FAQs
What is the Code Converters Trainer used for?
It is used to study digital code conversion techniques including Binary, Grey Code, and Excess-3 conversions.
Which code conversion experiments can be performed?
Students can perform:
- Binary to Grey Code
- Grey Code to Binary
- Binary to Excess-3
- Excess-3 to Binary
How many logic inputs are available?
The trainer provides four independent TTL logic input switches, each with LED indication.
How many output indicators are available?
The trainer includes four buffered HIGH/LOW logic output indicators for observing converted digital outputs.
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
What concepts can students learn?
Students can understand:
- Digital code representation
- Code conversion techniques
- Combinational logic design
- Truth table verification
- Digital communication coding
- Binary arithmetic concepts
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the Code Converters Trainer be supplied in bulk?
Yes. Micro Technologies supplies Code Converters Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
