Block & Tackle Pulley System
Product Specification Sheet

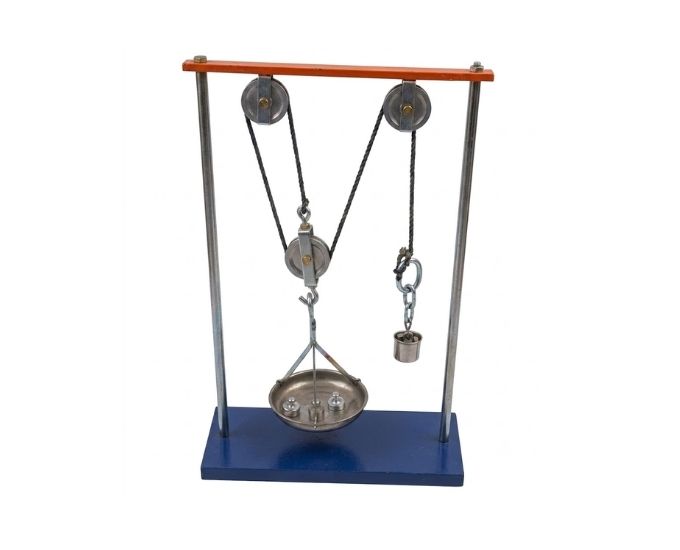

Block & Tackle Pulley System
Model Number: MT-1295
The Block & Tackle Pulley System from Micro Technologies is a mechanics demonstration apparatus designed for practical experiments involving mechanical advantage, load lifting, effort, tension and force distribution. The MT-1295 combines fixed and movable pulley arrangements with cords and load supports on a stable frame for clear laboratory demonstrations.
Product Specification
The Block & Tackle Pulley System from Micro Technologies is designed for practical physics and mechanics laboratory experiments involving compound pulley arrangements. The apparatus provides a clear visual demonstration of how multiple pulleys can be combined to modify the effort required to lift or support a load.
The MT-1295 incorporates fixed and movable pulley elements mounted within a supporting frame. Suitable cords pass around the pulley wheels to form a block-and-tackle arrangement, while load and effort positions allow the mechanical behaviour of the system to be investigated.
The apparatus is particularly useful for studying mechanical advantage, which describes the relationship between the load supported by a machine and the effort applied to operate it. Different supporting sections of cord can be examined to understand their influence on the theoretical mechanical advantage of the system.
The fixed pulley section helps guide the cord and can change the direction in which effort is applied. The movable pulley travels with the load and allows multiple cord sections to contribute to supporting that load.
This arrangement also provides a practical method for investigating load, effort and tension relationships. Suitable masses can be applied to the system so that observations and measurements can be made under different loading conditions.
The open-frame construction keeps the pulley wheels, cord paths, suspended loads and movable components clearly visible. This makes it easy to observe how the individual components interact as the system operates.
The apparatus is also useful for introducing the difference between ideal mechanical advantage and practical mechanical performance, including the effects that pulley friction and other mechanical losses may have on an actual system.
Its stable bench-top frame keeps the complete experimental arrangement organized and eliminates the need to assemble individual pulley supports separately for routine demonstrations.
Manufactured and supplied by Micro Technologies, the Block & Tackle Pulley System is suitable for physics laboratories, mechanics laboratories, engineering laboratories, research and demonstration facilities and technical training applications.
Features
- Block-and-tackle pulley arrangement
- Fixed and movable pulleys
- Compound pulley configuration
- Visible cord path
- Load and effort arrangement
- Suitable for mechanical advantage experiments
- Tension and force-distribution demonstration
- Suspended load configuration
- Open-frame construction
- Stable supporting base
- Clear component visibility
- Compact laboratory setup
- Suitable for repeated experiments
Benefits
- Clearly demonstrates block-and-tackle operation
- Helps investigate mechanical advantage
- Demonstrates the relationship between load and effort
- Useful for tension and force-distribution studies
- Provides clear visualization of fixed and movable pulleys
- Supports practical comparison with theoretical mechanics
- Stable frame simplifies laboratory setup
- Suitable for repeated pulley-system investigations
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Block & Tackle Pulley System |
| Model No. | MT-1295 |
| Product Type | Mechanics Laboratory Apparatus |
| Pulley Arrangement | Block & Tackle |
| Pulley Types | Fixed & Movable |
| System Type | Compound Pulley |
| Cord Arrangement | Visible |
| Load Arrangement | Suspended |
| Parameters Studied | Load, Effort, Tension & Mechanical Advantage |
| Mounting | Supporting Frame with Base |
| Application | Pulley Mechanics Experiments |
Available Model
| Model No. | Product |
|---|---|
| MT-1295 | Block & Tackle Pulley System |
Applications
- Block-and-tackle experiments
- Mechanical advantage investigations
- Fixed pulley demonstrations
- Movable pulley demonstrations
- Compound pulley experiments
- Load and effort studies
- Tension investigations
- Force-distribution experiments
- Load-lifting demonstrations
- Simple machine experiments
- Physics laboratory applications
- Engineering mechanics demonstrations
Available Variants
Block & Tackle Pulley System, Block and Tackle Apparatus, Compound Pulley System, Fixed and Movable Pulley System, Mechanical Advantage Pulley Apparatus, Laboratory Block and Tackle, Pulley Mechanics Demonstrator, Load and Effort Pulley System
SKU System
MT-BTPS-1295
FAQs
What is the Block & Tackle Pulley System used for?
The apparatus is used for experiments involving mechanical advantage, load, effort, tension, force distribution and compound pulley systems.
What type of pulleys are used in a block-and-tackle system?
A block-and-tackle system typically combines fixed and movable pulleys connected by a continuous cord arrangement.
Can mechanical advantage be investigated using this apparatus?
Yes. The apparatus is particularly suitable for investigating the relationship between applied effort, supported load and mechanical advantage.
How does a block-and-tackle pulley system reduce effort?
In an appropriate arrangement, the load is supported by multiple sections of the cord. This distributes the load and can reduce the input force required to lift it, while increasing the distance through which the effort must move.
Can load and effort be compared experimentally?
Yes. Suitable masses can be used to investigate and compare load and effort under different operating conditions.
Can tension be investigated with this apparatus?
Yes. The visible cord and pulley arrangement supports practical investigation of tension and force transmission through the system.
Does friction affect the practical mechanical advantage?
Yes. In a real pulley system, friction at the pulley wheels and other mechanical losses can cause practical performance to differ from ideal theoretical values.
Where can the Block & Tackle Pulley System be used?
It is suitable for physics laboratories, mechanics laboratories, engineering laboratories and technical training facilities.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Complete block-and-tackle arrangement
- Fixed and movable pulley configuration
- Clear load and effort demonstration
- Suitable for mechanical advantage investigations
- Stable and reusable laboratory setup
- Suitable for physics and mechanics laboratories
- Institutional, OEM and bulk supply available
Call to Action
Equip your laboratory with the Block & Tackle Pulley System – MT-1295 from Micro Technologies for practical investigations of mechanical advantage, load, effort, tension and compound pulley mechanics. Contact us for competitive pricing, institutional procurement, bulk orders, OEM requirements and customized quotations.
