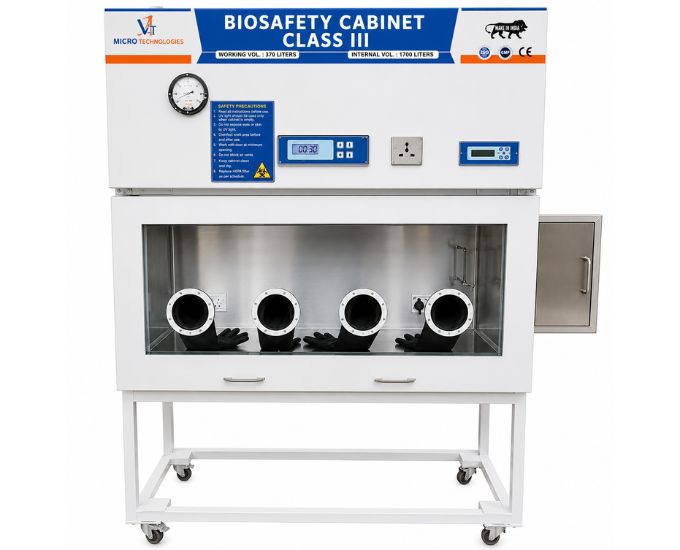

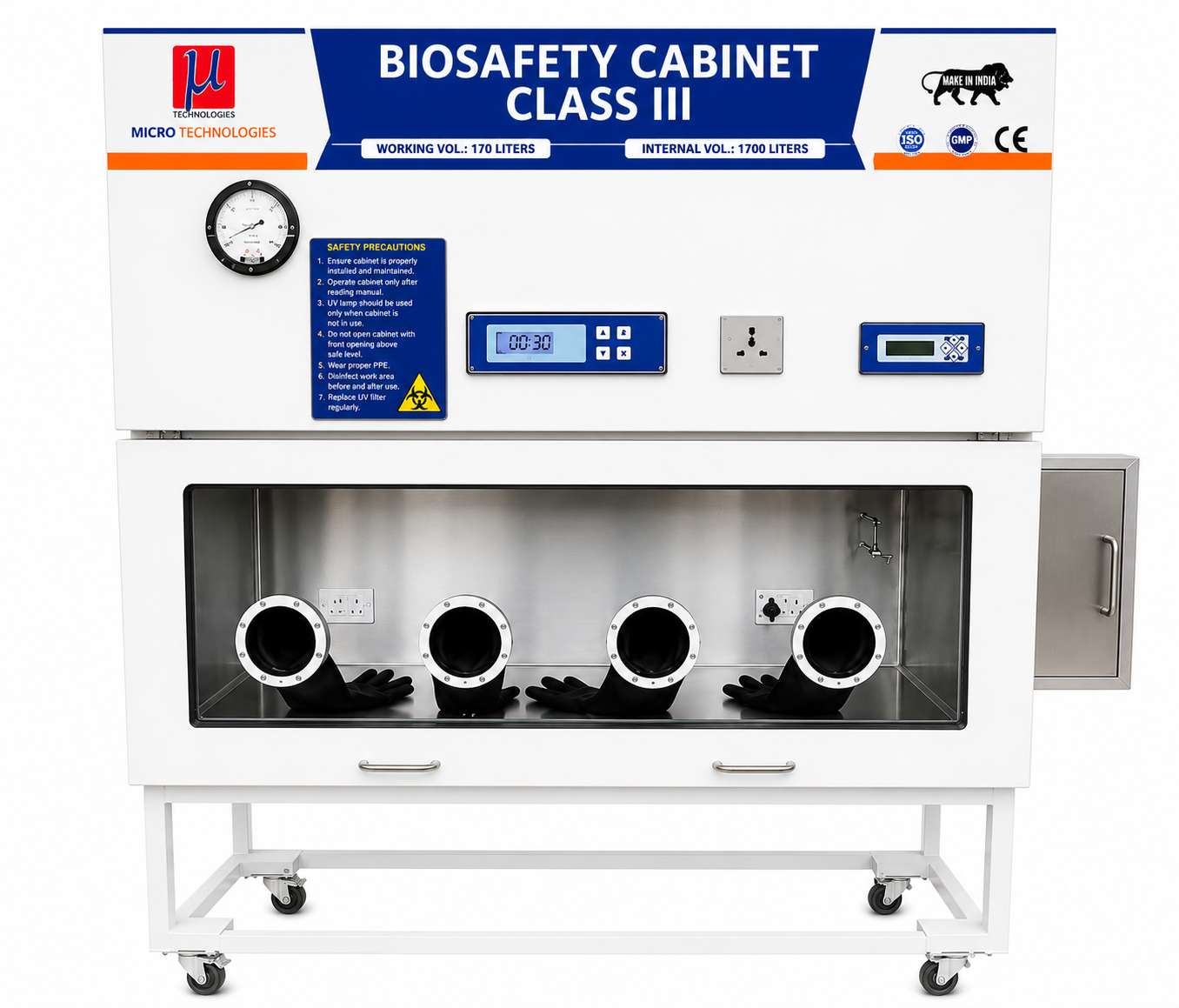

Biological Safety Cabinet Class III Type B3 (MT-113 Series)
Product Specification Sheet
Biological Safety Cabinet Class III Type B3 (MT-113 Series)
Model Number: MTBC-02
The Biological Safety Cabinet Class III Type B3 (MT-113 Series) is a maximum-containment laboratory workstation designed for handling highly infectious and hazardous biological agents. Manufactured by Micro Technologies, it features a gas-tight glove box design, 100% exhaust system, H14 HEPA filtration, and complete protection for personnel, products, and the environment, making it ideal for advanced biosafety laboratories and research facilities.
Product Specification
The Biological Safety Cabinet Class III Type B3 (MT-113 Series) is engineered for laboratories requiring the highest level of biological containment during handling of infectious microorganisms, hazardous pathogens, and high-risk biological materials. Manufactured by Micro Technologies, the cabinet provides complete isolation between the operator and the working chamber through a sealed glove box design, ensuring maximum biosafety for critical laboratory applications.
The cabinet is completely gas-tight, preventing the escape of contaminated air into the surrounding environment. All sample transfer operations are carried out using an integrated double-door pass box or dunk tank, allowing materials to enter and exit the chamber without compromising containment integrity.
The operator performs all procedures using heavy-duty glove ports mounted on the front panel, eliminating direct contact with hazardous materials. This fully enclosed configuration makes the MT-113 Series suitable for laboratories working with highly infectious pathogens, dangerous biological agents, and specialized containment research.
The cabinet utilizes 100% exhaust airflow, ensuring that contaminated air is never recirculated into the work chamber or laboratory. Air passes through H14 Mini Pleat HEPA filters with a filtration efficiency of 99.99% for particles down to 0.3 microns, providing exceptional air purification before safe exhaust.
The working chamber is manufactured from SS304 stainless steel, offering excellent corrosion resistance, chemical resistance, and ease of decontamination. Smooth welded internal surfaces reduce contamination traps and simplify routine cleaning and sterilization.
The cabinet provides complete Personnel Protection, Product Protection, and Environmental Protection, making it suitable for biosafety laboratories, pharmaceutical research, vaccine development, virology, microbiology, biotechnology, infectious disease research, and high-containment laboratory applications.
Bright fluorescent illumination provides excellent visibility inside the chamber while maintaining operator comfort during extended procedures. The low-noise blower system delivers stable airflow with minimal vibration, ensuring consistent containment performance throughout operation.
Manufactured by Micro Technologies, every Biological Safety Cabinet Class III Type B3 undergoes comprehensive HEPA filter integrity testing, airflow validation, leak testing, electrical safety inspection, and functional quality verification before delivery.
Features
- Biological Safety Cabinet Class III Type B3
- Gas-tight glove box construction
- Complete personnel, product, and environmental protection
- Fully enclosed containment chamber
- 100% exhaust airflow system
- SS304 stainless steel working chamber
- H14 Mini Pleat HEPA filtration
- HEPA efficiency: 99.99% @ 0.3 micron
- Heavy-duty glove ports
- Double-door pass box
- Dunk tank material transfer system
- Leak-proof chamber design
- Low-noise blower system
- Bright fluorescent illumination
- Hygienic stainless steel interior
- Easy decontamination
- Continuous high-containment operation
- Available in multiple working sizes
Benefits
- Maximum biological containment
- Eliminates direct operator exposure
- Protects highly sensitive research materials
- Prevents laboratory contamination
- Safe handling of infectious agents
- Reliable HEPA filtration
- Gas-tight chamber construction
- Suitable for BSL laboratories
- Long operational life
- Easy maintenance and cleaning
- Stable airflow performance
- Supports high-risk biological research
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Biological Safety Cabinet Class III Type B3 |
| Model Series | MT-113 |
| Cabinet Classification | Class III Type B3 |
| Construction Material | SS304 Stainless Steel |
| Chamber Type | Gas-Tight Glove Box |
| Airflow System | 100% Exhaust |
| Working Method | Integrated Glove Ports |
| Material Transfer | Double-Door Pass Box / Dunk Tank |
| HEPA Filter Grade | H14 Mini Pleat |
| HEPA Efficiency | 99.99% @ 0.3 Micron |
| Exhaust System | Complete HEPA Filtered Exhaust |
| Illumination | Fluorescent Lighting |
| Protection | Personnel, Product & Environmental |
| Applications | Virology, Microbiology, Biotechnology, Vaccine Research, Pharmaceutical Research, High Containment Laboratories |
Available Models
| Model | Working Area | HEPA Filter Size | No. of HEPA Filters | Illumination |
|---|---|---|---|---|
| MT-113(A) | 2' × 2' × 2' | 2' × 2' × 6" | 1 | 1 × 20W |
| MT-113(B) | 3' × 2' × 2' | 3' × 2' × 6" | 1 | 1 × 20W |
| MT-113(C) | 4' × 2' × 2' | 4' × 2' × 6" | 1 | 1 × 40W |
| MT-113(D) | 6' × 2' × 2' | 3' × 2' × 6" | 2 | 2 × 40W |
Optional Accessories
- UV germicidal lamp
- Microprocessor-based digital controller
- Differential pressure gauge
- Magnehelic pressure gauge
- Digital airflow monitoring
- Touchscreen controller
- Gas-tight transfer chamber
- Additional glove ports
- Stainless steel stand
- Electrical utility sockets
- Vacuum outlet
- Replacement H14 HEPA filters
- DOP filter integrity testing
- IQ/OQ/PQ validation documentation
- Calibration certificate
SKU System
- MT-113-A
- MT-113-B
- MT-113-C
- MT-113-D
FAQs
What is the MT-113 Biological Safety Cabinet Class III Type B3 used for?
The MT-113 Series is designed for handling highly infectious microorganisms, hazardous biological agents, virology research, vaccine development, pharmaceutical research, and other high-containment laboratory applications.
Why is the cabinet called a glove box?
The cabinet is completely enclosed, and all laboratory procedures are performed using sealed glove ports, preventing direct contact between the operator and hazardous materials.
What level of protection does the cabinet provide?
The MT-113 Series provides complete Personnel Protection, Product Protection, and Environmental Protection, making it suitable for maximum-containment laboratory work.
What type of exhaust system is used?
The cabinet operates with a 100% HEPA-filtered exhaust system, ensuring contaminated air is safely filtered before discharge without recirculation.
How are materials transferred into the cabinet?
Materials are transferred using a double-door pass box or dunk tank, maintaining containment while introducing or removing laboratory items.
Which industries commonly use the MT-113 Series?
The cabinet is widely used in virology laboratories, biotechnology companies, pharmaceutical industries, vaccine production facilities, infectious disease research centers, government laboratories, and advanced biosafety research institutes.
Is the cabinet available in multiple sizes?
Yes. The MT-113 Series is available in 2 ft, 3 ft, 4 ft, and 6 ft working widths. Customized dimensions can also be manufactured.
Can the MT-113 Series be supplied in bulk?
Yes. Micro Technologies supplies the MT-113 Series for pharmaceutical projects, government laboratories, OEM manufacturing, institutional procurement, research institutes, distributors, exporters, and large-scale laboratory installations.
Why Choose Our Products
- Maximum Class III biological containment
- Gas-tight glove box construction
- 100% HEPA-filtered exhaust system
- Premium SS304 stainless steel construction
- High-efficiency H14 HEPA filtration
- Complete personnel, product, and environmental protection
- Stable airflow performance
- Multiple cabinet sizes available
- Customized manufacturing solutions
- OEM manufacturing support
- Strict quality inspection
- Reliable technical and after-sales support
Call to Action
Choose the Biological Safety Cabinet Class III Type B3 (MT-113 Series) from Micro Technologies for maximum biological containment, superior operator safety, and dependable high-containment laboratory performance. Contact us today for pricing, customized configurations, validation services, OEM manufacturing, government tenders, distributor inquiries, or a competitive quotation.
