Battery Powered Acceleration Timer
Product Specification Sheet
Battery Powered Acceleration Timer
Model Number: MTM-85

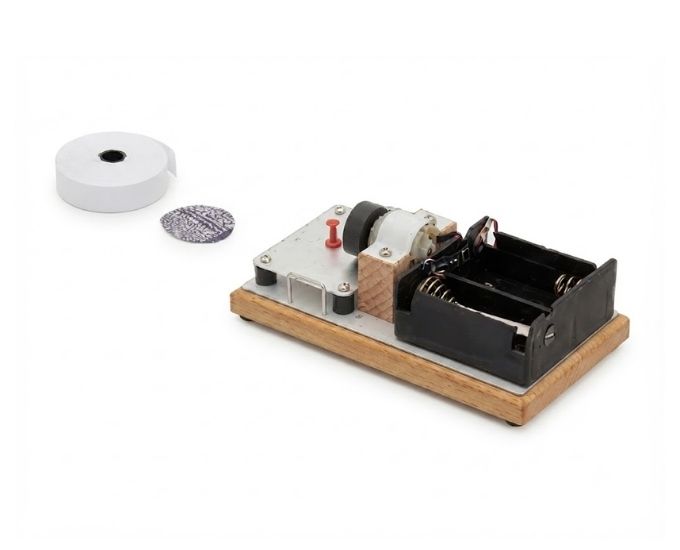

The Battery Powered Acceleration Timer from Micro Technologies is a compact motion-recording apparatus designed to produce 50 marks per second for dynamics, velocity and acceleration experiments. The MT-10548 operates using a 1.5 V motor, features a two D-cell battery compartment, adjustable striker mechanism and ring-stand mounting arrangement, and is supplied with 43 mm carbon discs and paper tape measuring approximately 15 mm × 30 m.
Product Specification
The Battery Powered Acceleration Timer from Micro Technologies is designed for practical investigations of motion where a regularly timed physical record is required for subsequent measurement and analysis. Its battery-powered configuration makes it particularly convenient for laboratory setups where connection to an external electrical supply is undesirable.
The MT-10548 is designed to produce approximately 50 marks per second, providing closely spaced and consistent timing points on a moving paper tape. Since each mark corresponds to a known time interval, the recorded pattern can be analyzed to investigate displacement, velocity and acceleration.
A 1.5 V motor operates the timer mechanism. Power is provided through a battery compartment designed to accommodate two D-cell batteries, allowing the apparatus to operate independently of a mains power source.
The timer incorporates a striker mechanism acting against an aluminium plate, producing the required marking action through a carbon disc. As the paper tape passes through the mechanism, a sequence of timed marks is generated.
The striker mechanism is designed to produce improved dot definition on the ticker tape, allowing the recorded positions to be more easily identified during subsequent measurements.
An adjustable striker is provided so that the marking arrangement can be set appropriately for experimental use. The apparatus also incorporates a ring-stand attachment, enabling it to be secured to a compatible laboratory support system.
The MT-10548 is particularly useful for dynamic experiments involving carts, falling masses, inclined-plane arrangements and other moving bodies. Analysis of the resulting ticker tape can help determine changes in velocity and acceleration over time.
The apparatus is supplied with 43 mm diameter carbon discs and a paper tape roll approximately 15 mm wide × 30 m long, providing the basic consumables required for repeated experimental operation.
Manufactured and supplied by Micro Technologies, the Battery Powered Acceleration Timer is suitable for physics laboratories, mechanics laboratories, dynamics laboratories, research facilities and other experimental motion-analysis applications.
Features
- Battery-powered acceleration timer
- Produces approximately 50 marks per second
- 1.5 V motor operation
- Battery compartment for two D-cell batteries
- Adjustable striker mechanism
- Striker operates against aluminium plate
- Ring-stand mounting arrangement
- Carbon-disc marking system
- 43 mm carbon discs supplied
- Paper ticker tape supplied
- Suitable for velocity and acceleration experiments
- Independent of mains electricity
- Compact laboratory construction
- Suitable for repeated dynamics experiments
Benefits
- Produces a permanent time-displacement record
- 50 marks per second provides convenient motion analysis
- Battery operation increases portability
- Eliminates the need for a mains connection during experiments
- Useful for calculating velocity from successive tape marks
- Supports acceleration and deceleration investigations
- Adjustable striker helps maintain suitable dot formation
- Ring-stand mounting allows flexible experimental positioning
- Suitable for a wide range of mechanics and dynamics setups
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Battery Powered Acceleration Timer |
| Model No. | MT-10548 |
| Product Type | Motion Recording / Acceleration Timer |
| Marking Rate | Approx. 50 marks/sec |
| Motor | 1.5 V |
| Power Source | Battery |
| Battery Provision | 2 × D-Cell Batteries |
| Striker | Adjustable |
| Striking Surface | Aluminium Plate |
| Mounting | Ring Stand Attachment |
| Carbon Disc Diameter | 43 mm |
| Tape Width | Approx. 15 mm |
| Tape Length | Approx. 30 m |
| Primary Application | Velocity, Acceleration & Dynamics Experiments |
Supplied Accessories
| Accessory | Details |
|---|---|
| Carbon Discs | 43 mm diameter |
| Paper Tape Roll | Approx. 15 mm × 30 m |
| Striker Mechanism | Provided |
| Ring Stand Attachment | Provided |
Available Model
| Model No. | Product |
|---|---|
| MT-10548 | Battery Powered Acceleration Timer |
Applications
- Acceleration measurement
- Velocity experiments
- Linear motion investigations
- Dynamics experiments
- Kinematics studies
- Motion recording
- Cart motion experiments
- Inclined-plane experiments
- Falling-body investigations
- Displacement-time analysis
- Acceleration and deceleration studies
- General mechanics laboratory experiments
Available Variants
Battery Powered Acceleration Timer, Battery Acceleration Timer, 50 Marks Per Second Timer, Battery Ticker Timer, Motion Recording Timer, Dynamics Timer, Kinematics Timer, Portable Acceleration Timer
SKU System
MT-BPAT-10548
FAQs
What is the MT-10548 Battery Powered Acceleration Timer used for?
The MT-10548 is designed for motion recording and experiments involving velocity, acceleration, displacement, dynamics and kinematics.
How many marks per second does the timer produce?
The apparatus is designed to produce approximately 50 marks per second.
What type of motor is used?
The MT-10548 incorporates a 1.5 V motor for operating the marking mechanism.
What batteries does the apparatus use?
The battery compartment is designed to accommodate two D-cell batteries.
How does the timer record motion?
A striker mechanism acts against an aluminium plate and carbon disc arrangement, producing regularly timed marks on moving paper tape.
Is the striker adjustable?
Yes. The striker mechanism is adjustable to support suitable marking performance during experiments.
Can the timer be attached to a laboratory stand?
Yes. The apparatus includes an arrangement for attachment to a ring stand or compatible laboratory support.
What size carbon discs are supplied?
The supplied carbon discs are approximately 43 mm in diameter.
What size paper tape is supplied?
The supplied paper tape roll measures approximately 15 mm wide × 30 m long.
Why Choose Our Products
- Manufactured and supplied by Micro Technologies
- Model MT-10548
- Approximately 50 marks per second
- Portable battery-powered operation
- Adjustable striker arrangement
- Ring-stand mounting capability
- Carbon discs and paper tape supplied
- Suitable for quantitative motion experiments
- Bulk, OEM, institutional and distributor supply available
Call to Action
Choose the Battery Powered Acceleration Timer – MT-10548 from Micro Technologies for convenient velocity, acceleration and dynamics experiments without dependence on mains power. Contact us for competitive pricing, replacement carbon discs and ticker tape, bulk procurement, institutional orders, OEM requirements, distributor supply and customized quotations.
