Arithmetic Logic Unit (ALU) Trainer
Product Specification Sheet
Arithmetic Logic Unit (ALU) Trainer
Model Number: MT-E178
The Arithmetic Logic Unit (ALU) Trainer is a professional laboratory training system designed for studying arithmetic and logic operations using the IC 74181 Arithmetic Logic Unit. Manufactured by Micro Technologies, this trainer incorporates the 74181 ALU, logic input switches, output indicators, and practical arithmetic experiments, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and digital electronics laboratories.
Product Specification
The Arithmetic Logic Unit (ALU) Trainer is specially designed to provide students with practical knowledge of arithmetic and logic operations through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the working principles of an Arithmetic Logic Unit (ALU), one of the most important functional blocks of modern microprocessors, microcontrollers, digital computers, and embedded systems.
The trainer allows students to verify various arithmetic and logical operations performed by the IC 74181 Arithmetic Logic Unit. Through practical experimentation, learners can study binary addition, subtraction, comparison, increment, decrement, logical AND, OR, XOR, NOT operations, and other combinational logic functions while understanding how processors execute mathematical and logical instructions.

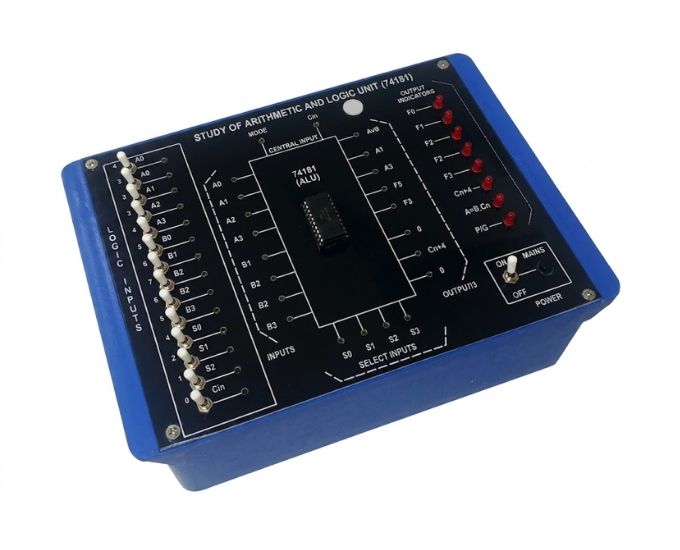

The trainer incorporates an onboard IC 74181 Arithmetic Logic Unit, complete with a functional block diagram permanently printed on the front panel for easy understanding of signal flow and internal architecture. Students can perform multiple ALU operations by selecting different input combinations and control signals.
Fourteen independent TTL logic input switches enable users to apply HIGH and LOW logic levels to the ALU inputs. Each input is accompanied by an LED indicator for clear visualization of input logic states. Eight independent logic output indicators display the resulting arithmetic and logic outputs in real time, allowing students to observe ALU operation accurately during experimentation.
A built-in digital voltmeter with selectable 2 V / 20 V DC ranges provides convenient voltage measurement wherever required during laboratory experiments. The trainer operates from a regulated +5 V DC, 150 mA power supply, ensuring reliable operation of the onboard digital circuitry.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and symbols for easy identification of experimental terminals and functional blocks. Color-coded 2 mm safety sockets simplify laboratory wiring while minimizing connection errors.
The trainer is enclosed inside a rugged ABS plastic cabinet designed for continuous educational use. Compact tabletop construction makes it suitable for classroom demonstrations, laboratory practical sessions, and digital electronics training programs.
The Arithmetic Logic Unit Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, digital electronics laboratories, computer architecture laboratories, microprocessor laboratories, embedded systems laboratories, and research institutions.
Every Arithmetic Logic Unit Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Study of arithmetic and logic operations
- Built-in IC 74181 Arithmetic Logic Unit
- Verification of arithmetic functions
- Verification of logical functions
- Fourteen independent TTL logic inputs
- LED logic input indicators
- Eight logic output indicators
- Built-in digital voltmeter
- Regulated +5 V DC power supply
- High-quality insulated PCB
- Functional block diagram printed on panel
- Clearly printed circuit symbols
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates ALU operations clearly
- Enhances understanding of processor architecture
- Supports digital electronics laboratory education
- Simplifies arithmetic and logic experiments
- Provides real-time logic output observation
- Easy laboratory setup
- Safe low-voltage operation
- Improves digital system design knowledge
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
- Strengthens practical digital electronics skills
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Arithmetic Logic Unit (ALU) Trainer |
| Main IC | IC 74181 Arithmetic Logic Unit |
| Experiment | Verification of Arithmetic & Logic Operations |
| Logic Inputs | Fourteen Independent TTL Logic Inputs |
| Input Indicators | LED Logic Status Indicators |
| Output Indicators | Eight Logic Output Indicators |
| Voltmeter | Digital 2 V / 20 V DC |
| DC Power Supply | +5 V DC, 150 mA |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 10" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Digital Electronics Laboratories
- Microprocessor Laboratories
- Computer Architecture Laboratories
- Embedded Systems Laboratories
- Electronics Laboratories
- Diploma Colleges
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Research Laboratories
Optional Accessories
- Digital Multimeter
- Logic Probe
- Logic Pulser
- Oscilloscope
- Function Generator
- Patch Cords (2 mm)
- Breadboard Trainer Kit
- Electronics Tool Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-ALU-001
FAQs
What is the Arithmetic Logic Unit Trainer used for?
It is used to study arithmetic and logical operations performed by the IC 74181 Arithmetic Logic Unit used in digital processors and computer systems.
Which IC is provided on the trainer?
The trainer incorporates the IC 74181 Arithmetic Logic Unit (ALU).
Which experiments can be performed?
Students can study:
- Binary Addition
- Binary Subtraction
- Logical AND
- Logical OR
- Exclusive OR (XOR)
- NOT Operation
- Comparison Operations
- Arithmetic and Logic Function Verification
How many logic inputs are available?
The trainer provides 14 independent TTL logic input switches, each with LED status indication.
How many output indicators are available?
The trainer includes 8 independent logic output indicators for monitoring arithmetic and logic results.
What power supply is included?
The trainer operates on a regulated +5 V DC, 150 mA power supply.
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the Arithmetic Logic Unit Trainer be supplied in bulk?
Yes. Micro Technologies supplies Arithmetic Logic Unit Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
Why Choose Our Products
- Premium-quality digital electronics trainer kits
- Complete ALU experiments
- Built-in IC 74181 Arithmetic Logic Unit
- High-quality insulated PCB construction
- Rugged ABS cabinet
- Reliable laboratory performance
- OEM and institutional supply available
- Competitive B2B pricing
- Strict quality inspection
- Reliable technical support
- Excellent after-sales service
- Long operational life
Call to Action
Enhance your digital electronics and computer architecture laboratory with the Arithmetic Logic Unit (ALU) Trainer from Micro Technologies. Contact us today for pricing, institutional procurement, OEM requirements, government tenders, distributor inquiries, and bulk order quotations.
