Analog to Digital Converter Trainer
Product Specification Sheet
Analog to Digital Converter Trainer
Model Number: MT-E080

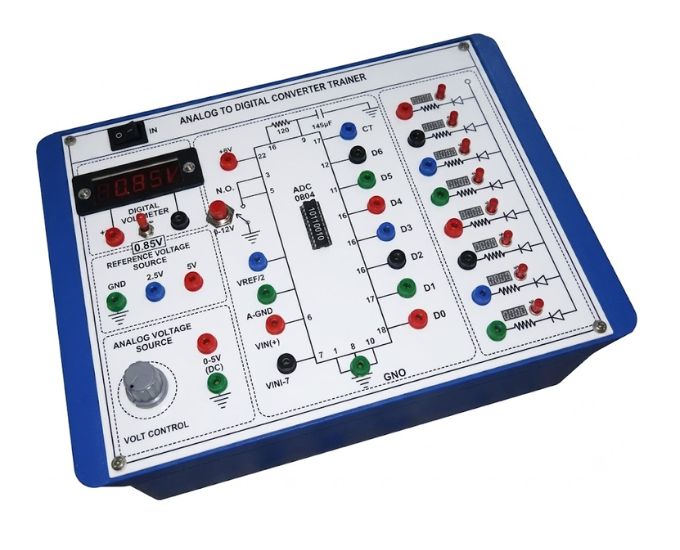

The Analog to Digital Converter Trainer is a professional laboratory training system designed for studying 8-bit analog-to-digital conversion using the ADC0804 integrated circuit. Manufactured by Micro Technologies, this trainer features onboard digital voltmeter, reference voltage control, buffered logic indicators, and practical ADC experiments, making it ideal for engineering colleges, universities, polytechnic institutes, technical training centers, and instrumentation laboratories.
Product Specification
The Analog to Digital Converter Trainer is specially designed to provide students with practical knowledge of analog-to-digital conversion through hands-on laboratory experimentation. Manufactured by Micro Technologies, this trainer enables learners to understand the complete process of converting analog signals into digital binary data using the widely adopted ADC0804 8-bit Analog to Digital Converter IC.
The trainer allows students to verify 8-bit analog-to-digital conversion, understand the operation of successive approximation conversion, study reference voltage control, observe digital outputs, and analyze the relationship between analog input voltage and binary output data. Practical experimentation helps learners understand the principles used in instrumentation systems, embedded electronics, industrial automation, microcontroller interfaces, and digital measurement equipment.
The trainer incorporates the ADC0804 Analog to Digital Converter IC with a clearly printed functional block diagram for easy understanding of the conversion process. The complete ADC circuitry is permanently mounted on the trainer panel, allowing students to perform experiments without external circuit assembly.
A built-in digital voltmeter enables users to accurately monitor the applied analog input voltage during experimentation. An onboard reference voltage control allows adjustment of the conversion range, helping students understand the effect of reference voltage on ADC resolution and conversion accuracy.
Eight independent buffered logic level indicators display HIGH and LOW digital output states generated by the ADC0804 IC. These indicators allow students to observe the complete 8-bit binary output corresponding to the applied analog input voltage.
The trainer operates using regulated +5 V DC, +2.5 V DC, and 0–5 V DC reference voltage supplies to ensure stable operation and accurate conversion results. Carefully selected electronic components provide reliable performance and long operational life.
The front panel is manufactured using a premium insulated printed circuit board with permanently printed circuit diagrams and functional symbols for simplified learning and troubleshooting. Color-coded 2 mm safety sockets ensure secure experimental connections while reducing wiring errors.
The trainer is housed inside a rugged ABS plastic cabinet designed for continuous educational use. Its compact tabletop construction makes it ideal for classroom demonstrations, laboratory practical sessions, instrumentation laboratories, and digital electronics training.
The Analog to Digital Converter Trainer is extensively used in engineering colleges, universities, diploma institutes, polytechnic colleges, industrial training institutes (ITI), vocational education centers, instrumentation laboratories, embedded systems laboratories, electronics laboratories, digital electronics laboratories, and research institutions.
Every Analog to Digital Converter Trainer manufactured by Micro Technologies undergoes comprehensive quality inspection and functional testing to ensure operational reliability, safety, and long service life.
Features
- Verification of 8-bit Analog to Digital Conversion
- Built-in ADC0804 Analog to Digital Converter IC
- Onboard digital voltmeter
- Adjustable reference voltage control
- Eight buffered digital output indicators
- Printed ADC0804 functional block diagram
- Regulated +5 V DC power supply
- +2.5 V DC supply
- 0–5 V DC reference voltage supply
- High-quality insulated PCB
- Color-coded 2 mm safety sockets
- Rugged ABS plastic cabinet
- Compact tabletop design
- Ready-to-use laboratory trainer
- Reliable experimental performance
- Low maintenance
- Instruction manual included
Benefits
- Demonstrates analog-to-digital conversion clearly
- Enhances understanding of ADC0804 operation
- Supports instrumentation and digital electronics laboratories
- Simplifies analog signal conversion experiments
- Provides real-time binary output observation
- Built-in digital voltmeter for accurate measurements
- Easy laboratory setup
- Safe low-voltage operation
- Improves understanding of data acquisition systems
- Durable educational equipment
- Suitable for repeated classroom demonstrations
- Cost-effective engineering trainer
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Analog to Digital Converter Trainer |
| ADC IC | ADC0804 (8-Bit) |
| Conversion Method | Successive Approximation |
| Digital Meter | 2V / 20V DC Voltmeter |
| Digital Indicators | Eight Buffered Logic Indicators |
| DC Power Supply | +5 V DC |
| Auxiliary Supply | +2.5 V DC |
| Reference Voltage | 0–5 V DC Adjustable |
| Input Supply | 230 V AC ±10%, 50 Hz |
| Connection Type | 2 mm Color-Coded Safety Sockets |
| Circuit Board | High-Quality Insulated PCB |
| Cabinet | Heavy-Duty ABS Plastic |
| Trainer Size | Approximately 10" × 8" |
Applications
- Engineering Colleges
- Polytechnic Institutes
- Universities
- Instrumentation Laboratories
- Digital Electronics Laboratories
- Embedded Systems Laboratories
- Data Acquisition Laboratories
- Electronics Laboratories
- Industrial Training Institutes (ITI)
- Technical Training Centers
- Research Laboratories
- Automation Training Centers
Optional Accessories
- Digital Multimeter
- Oscilloscope
- Function Generator
- Regulated DC Power Supply
- Logic Probe
- Patch Cords (2 mm)
- Electronics Tool Kit
- Breadboard Trainer Kit
- Laboratory Workstation
- User Instruction Manual
SKU System
MT-ADC0804-001
FAQs
What is the Analog to Digital Converter Trainer used for?
It is used to study the operation of an 8-bit Analog to Digital Converter and understand how analog signals are converted into digital binary data.
Which IC is provided on the trainer?
The trainer incorporates the ADC0804 8-bit Analog to Digital Converter IC.
Which experiments can be performed?
Students can study:
- 8-Bit Analog to Digital Conversion
- ADC0804 Operation
- Successive Approximation Conversion
- Reference Voltage Adjustment
- Digital Output Verification
- Analog Signal Measurement
What measuring instrument is provided?
The trainer includes a built-in 2V/20V DC Digital Voltmeter for monitoring input voltage.
How many digital output indicators are available?
The trainer provides eight buffered logic indicators for observing the 8-bit binary output.
What power supplies are included?
The trainer provides:
- +5 V DC
- +2.5 V DC
- Adjustable 0–5 V DC Reference Voltage
How are experimental connections made?
All experimental connections are made through 2 mm color-coded safety sockets, ensuring secure and reliable laboratory operation.
Can the Analog to Digital Converter Trainer be supplied in bulk?
Yes. Micro Technologies supplies Analog to Digital Converter Trainers for engineering colleges, universities, government institutions, OEM projects, distributors, laboratory installations, and bulk procurement.
