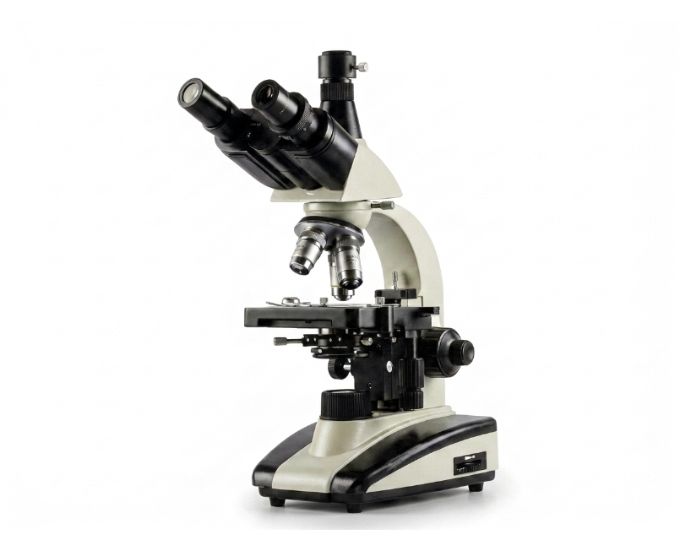

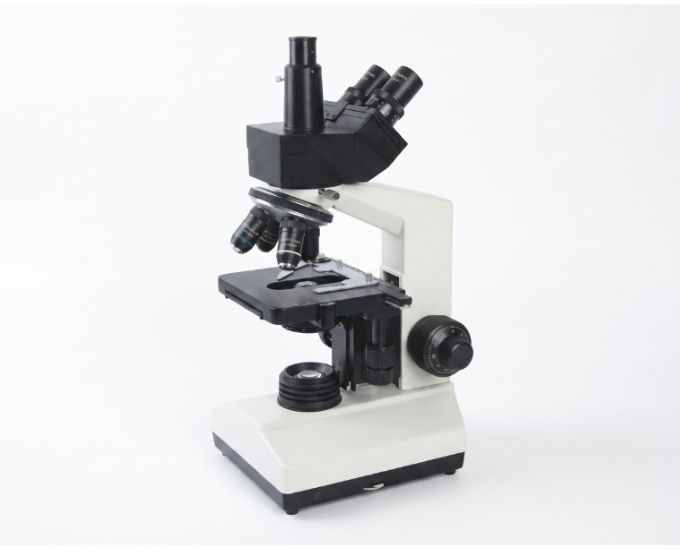

The Trinocular Microscope is a premium compound biological microscope developed for laboratories requiring outstanding optical performance, precision specimen analysis, and long-term operational reliability. It is suitable for biological sciences, pathology, microbiology, pharmaceutical quality control, clinical diagnostics, and higher education laboratories where accurate observation is essential.

Its sliding trinocular viewing head is inclined at 45° and rotates through 360°, allowing comfortable viewing from different positions while supporting the installation of compatible digital microscope cameras for photography, video recording, and laboratory documentation. This feature makes the microscope an excellent choice for research institutions and teaching laboratories that require image sharing and digital analysis.

The microscope includes WF10X and WF16X wide-field eyepieces together with 4X, 10X, 40X spring-loaded, and 100X oil immersion spring-loaded objectives, providing multiple magnification options with excellent clarity, resolution, and color reproduction. Whether examining microorganisms, tissue sections, blood samples, or prepared slides, the optical system delivers reliable and detailed results.

A spacious 140 × 155 mm double-layer mechanical stage with a movement range of 70 × 50 mm enables precise specimen positioning and smooth slide movement. The N.A. 1.25 Abbe condenser, fitted with an iris diaphragm and filter holder, provides uniform illumination and improved image contrast for accurate microscopic examination.

For precise focusing, the microscope incorporates coaxial coarse and fine focusing controls with a fine focusing precision of 0.002 mm, allowing accurate adjustments even at high magnification. Illumination is provided by a 6V/20W halogen lamp, compatible with 110V or 220V AC, ensuring bright and consistent lighting for routine and advanced laboratory applications.

Manufactured with a durable metal body, the Trinocular Microscope offers excellent stability, minimal maintenance, and dependable performance over years of continuous operation. Micro Technologies supplies this microscope to hospitals, universities, research institutes, pharmaceutical companies, diagnostic laboratories, and industrial testing facilities seeking professional-grade optical equipment.

Features

• 45° inclined sliding trinocular head
• 360° rotatable viewing head
• WF10X and WF16X wide-field eyepieces
• 4X, 10X, 40X (Spring), and 100X Oil Immersion objectives
• Double-layer mechanical stage (140 × 155 mm)
• Stage travel range of 70 × 50 mm
• N.A. 1.25 Abbe condenser with iris diaphragm and filter holder
• Coaxial coarse and fine focusing system
• Fine focusing precision of 0.002 mm
• Bright 6V/20W halogen illumination
• Dual voltage operation (110V/220V AC)
• Digital camera compatible trinocular port

Benefits

• Produces sharp, high-resolution microscopic images
• Supports digital imaging and scientific documentation
• Enables precise specimen positioning for accurate analysis
• Comfortable ergonomic viewing during extended use
• Reliable illumination for consistent observations
• Durable construction reduces maintenance costs
• Suitable for professional laboratories and educational institution

Product Specifications

Available Variants

• Standard Trinocular Microscope
• LED Trinocular Microscope
• Research Grade Trinocular Microscope
• Digital Camera Compatible Trinocular Microscope
• Clinical Laboratory Trinocular Microscope

SKU System

• TM-LAB-006
• TM-LAB-007
• TM-LAB-008
• TM-LAB-009
• TM-LAB-010

FAQs

What is this Trinocular Microscope used for?

It is used for biological research, pathology, microbiology, clinical diagnostics, pharmaceutical laboratories, and educational institutions. The trinocular port also supports digital imaging and documentation.

Can a digital microscope camera be connected?

Yes. The sliding trinocular head is compatible with most standard microscope cameras, making it suitable for image capture, live viewing, and research documentation.

What is the advantage of the 45° sliding trinocular head?

The 45° inclined and 360° rotatable head provides comfortable viewing from different angles while allowing easy sharing of observations and convenient camera attachment.

What illumination system is provided?

The microscope uses a bright 6V/20W halogen illumination system with 110V/220V compatibility, delivering uniform lighting for accurate specimen observation.

Is this microscope suitable for universities and research laboratories?

Yes. Its precision optics, large mechanical stage, and durable construction make it an excellent choice for universities, research institutes, hospitals, and pharmaceutical laboratories.

Do you supply bulk quantities?

Yes. Micro Technologies supplies bulk orders for hospitals, colleges, universities, distributors, government laboratories, research organizations, and industrial testing facilities with customized quotations.

Why Choose Our Products

• Precision-engineered optical components
• Strict quality inspection before dispatch
• Durable metal construction for long service life
• Excellent optical clarity and smooth operation
• Reliable technical support and bulk supply capability

Call to Action

Looking for a dependable Trinocular Microscope supplier? Micro Technologies manufactures and supplies high-performance laboratory microscopes for hospitals, research institutes, universities, pharmaceutical companies, and industrial laboratories. Contact us today for bulk pricing, institutional procurement, OEM manufacturing, or a customized quotation tailored to your laboratory requirements.
