Advanced Monocular Microscope with Mechanical Stage & Abbe Condenser
Product Specification Sheet

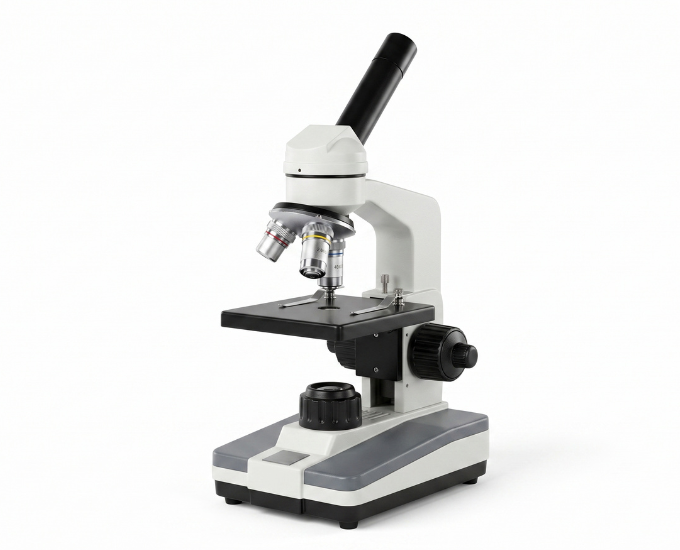

Advanced Monocular Microscope with Mechanical Stage & Abbe Condenser
Model Number: MTM-035
The Advanced Monocular Microscope with Mechanical Stage & Abbe Condenser from Micro Technologies is designed for educational, clinical, and research laboratories. Featuring a 45° inclined, 360° rotatable monocular head, double-layer mechanical stage, N.A. 1.25 Abbe condenser, coaxial focusing system, and adjustable halogen illumination, it delivers high-resolution imaging for professional biological observations.
Product Specification
The Advanced Monocular Microscope with Mechanical Stage & Abbe Condenser is a high-performance laboratory microscope developed for biological research, clinical diagnostics, science education, and routine laboratory analysis. Built with precision optics and a durable laboratory-grade body, it ensures outstanding image clarity, smooth operation, and long-term reliability.
The microscope is equipped with a 45° inclined, 360° rotatable monocular viewing head fitted with a WF10X wide-field eyepiece, providing comfortable observation during extended laboratory sessions. Its 4X, 10X, and 40X(S) objective lenses deliver sharp, detailed images for examining microorganisms, biological tissues, plant cells, and prepared specimens.
A 110 × 126 mm double-layer mechanical stage allows precise X-Y movement of slides for accurate specimen positioning. The N.A. 1.25 Abbe condenser with an iris diaphragm and filter enhances illumination control and image contrast, ensuring excellent optical performance.
The microscope features a coaxial coarse and fine focusing mechanism, enabling fast specimen focusing followed by precise image adjustment. Standard illumination is provided through a 6V/20W halogen lamp compatible with AC 110V/220V power supplies. An LED illumination option is also available for improved energy efficiency and reduced maintenance.
Designed for continuous laboratory use, this microscope is suitable for schools, colleges, universities, hospitals, diagnostic laboratories, research institutes, pharmaceutical laboratories, and industrial quality control applications. Micro Technologies supplies this microscope for institutional procurement, distributor networks, OEM manufacturing, and government laboratory projects.
Features
- 45° inclined, 360° rotatable monocular head
- Wide-field WF10X eyepiece
- 4X, 10X, and 40X(S) objective lenses
- Double-layer mechanical stage (110 × 126 mm)
- N.A. 1.25 Abbe condenser with iris diaphragm and filter
- Coaxial coarse and fine focusing adjustment
- 6V/20W adjustable halogen illumination
- Optional LED illumination
- Durable laboratory-grade metal construction
- Ideal for biological and laboratory applications
Benefits
- Produces bright, high-resolution microscopic images
- Mechanical stage enables accurate slide positioning
- Precision focusing provides smooth image adjustment
- Adjustable illumination improves specimen visibility
- Comfortable ergonomic viewing for prolonged use
- Rugged construction ensures long service life
- Suitable for educational, clinical, and research laboratories
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Advanced Monocular Microscope with Mechanical Stage & Abbe Condenser |
| Model No. | MTM-035 |
| Product Type | Biological Laboratory Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Eyepiece | WF10X |
| Objectives | 4X, 10X, 40X(S) |
| Stage | Double Layer Mechanical Stage, 110 × 126 mm |
| Condenser | N.A. 1.25 Abbe Condenser with Iris Diaphragm and Filter |
| Focusing System | Coaxial Coarse & Fine Focusing |
| Standard Illumination | Halogen Lamp, 6V/20W |
| Optional Illumination | LED |
| Power Supply | AC 110V / 220V |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Biology Laboratories, Clinical Laboratories, Schools, Colleges, Universities & Research Institutes |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Mechanical Stage Monocular Microscope
- Halogen Biological Microscope
- LED Laboratory Microscope
- Educational Compound Microscope
- Research Monocular Microscope
FAQs
Does this microscope have a mechanical stage?
Yes. It features a 110 × 126 mm double-layer mechanical stage for precise slide movement and specimen positioning.
What condenser is used in this microscope?
The microscope is equipped with an N.A. 1.25 Abbe condenser with an iris diaphragm and filter for enhanced light control and image contrast.
What illumination system does it use?
The standard model includes a 6V/20W halogen lamp, while LED illumination is available as an optional configuration.
Does it include fine focusing?
Yes. The microscope features a coaxial coarse and fine focusing mechanism for accurate and smooth focusing.
Is this microscope suitable for research laboratories?
Yes. It is ideal for biology laboratories, clinical diagnostics, educational institutions, research centers, and pharmaceutical laboratories.
Can this microscope be supplied in bulk?
Yes. Micro Technologies offers bulk supply for educational institutions, laboratories, distributors, OEM partners, and government procurement projects.
