Advanced Monocular Biological Microscope with 100X Oil Objective
Product Specification Sheet

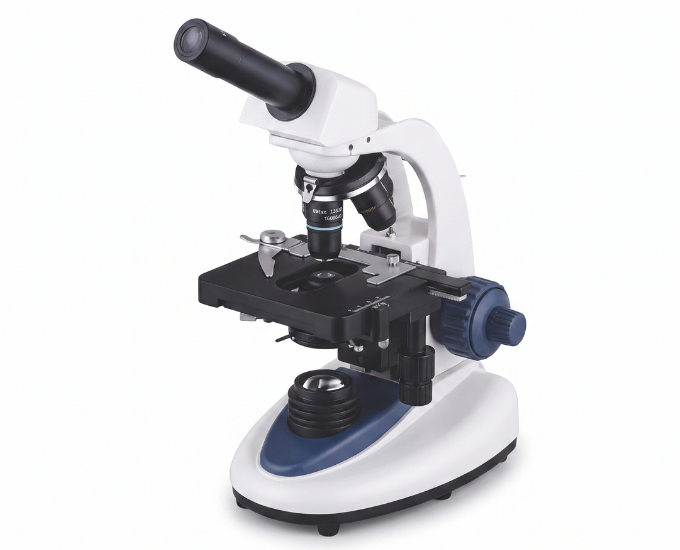

Advanced Monocular Biological Microscope with 100X Oil Objective
Model Number: MTM-037
The Advanced Monocular Biological Microscope from Micro Technologies is a precision optical instrument designed for biology laboratories, research institutes, clinical diagnostics, and educational institutions. Featuring achromatic objectives up to 100X oil immersion, a double-layer mechanical stage, precision coaxial focusing, and bright LED illumination, it delivers exceptional image quality for professional laboratory applications.
Product Specification
The Advanced Monocular Biological Microscope with 100X Oil Objective is engineered to provide superior optical performance for biological research, microbiology, pathology, clinical diagnostics, and educational laboratories. Constructed with premium laboratory-grade materials and high-quality optical components, it offers dependable performance, precision focusing, and long service life.
The microscope features a monocular viewing head equipped with a WF10X wide-field eyepiece, while WF16X is available as an optional eyepiece for higher viewing magnification. It incorporates 4X, 10X, 40X(S), and 100X(S) oil immersion achromatic objectives, delivering sharp, high-contrast images for detailed examination of microorganisms, biological tissues, blood samples, and prepared slides.
A 115 × 125 mm double-layer mechanical stage provides precise X-Y movement for accurate specimen positioning. The N.A. 1.25 Abbe condenser, complete with an iris diaphragm and filter, ensures optimum illumination control and excellent image contrast.
The microscope is equipped with a coaxial coarse and fine focusing mechanism, offering a 30 mm focusing range and a 0.002 mm fine focusing interval for highly accurate specimen adjustment. Standard illumination is provided by a 1W LED lamp, compatible with 110V/220V AC power. Optional 3W LED and 6V/20W halogen illumination configurations are available to suit different laboratory applications.
Designed for continuous laboratory operation, this microscope is ideal for schools, colleges, universities, hospitals, diagnostic laboratories, pharmaceutical companies, research institutes, and industrial quality control facilities. Micro Technologies supplies this microscope for institutional procurement, OEM manufacturing, distributor networks, and government laboratory projects.
Features
- Monocular viewing head
- WF10X wide-field eyepiece
- Optional WF16X eyepiece
- 4X, 10X, 40X(S), and 100X(S) oil immersion achromatic objectives
- Double-layer mechanical stage (115 × 125 mm)
- N.A. 1.25 Abbe condenser with iris diaphragm and filter
- Coaxial coarse and fine focusing system
- 30 mm focusing range
- 0.002 mm fine focusing interval
- 1W LED illumination
- Optional 3W LED or 6V/20W halogen illumination
- Rugged laboratory-grade construction
Benefits
- High-resolution imaging with 100X oil immersion objective
- Precision mechanical stage ensures accurate specimen positioning
- Fine focusing provides exceptional image clarity
- Bright LED illumination improves visibility while reducing power consumption
- Comfortable operation during extended laboratory sessions
- Durable construction for long-term professional use
- Suitable for educational, clinical, and research laboratories
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Advanced Monocular Biological Microscope with 100X Oil Objective |
| Model No. | MTM-037 |
| Product Type | Biological Compound Microscope |
| Viewing Head | Monocular |
| Eyepiece | WF10X (WF16X Optional) |
| Objectives | 4X, 10X, 40X(S), 100X(S) Oil Immersion (Achromatic) |
| Stage | Double Layer Mechanical Stage, 115 × 125 mm |
| Condenser | N.A. 1.25 Abbe Condenser with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse & Fine Focusing |
| Focusing Range | 30 mm |
| Fine Focus Interval | 0.002 mm |
| Standard Illumination | 1W LED Lamp |
| Optional Illumination | 3W LED Lamp or 6V/20W Halogen Lamp |
| Power Supply | AC 110V / 220V |
| Body Material | Laboratory Grade Metal |
| Usage/Application | Biology Laboratories, Clinical Laboratories, Universities, Research Institutes & Pharmaceutical Laboratories |
| Compliance Standard | Manufactured as per Standard Laboratory Equipment Practices |
Available Variants
- Oil Immersion Monocular Microscope
- LED Biological Microscope
- Laboratory Compound Microscope
- Research Monocular Microscope
- Clinical Laboratory Microscope
FAQs
Does this microscope include a 100X oil immersion objective?
Yes. It comes with 4X, 10X, 40X(S), and 100X(S) oil immersion achromatic objectives for advanced biological and microbiological observations.
What type of stage does this microscope have?
The microscope features a 115 × 125 mm double-layer mechanical stage for smooth and precise specimen positioning.
What illumination options are available?
The standard model uses a 1W LED lamp, with optional 3W LED and 6V/20W halogen illumination available.
How precise is the focusing system?
It includes a coaxial coarse and fine focusing mechanism with a 30 mm focusing range and a 0.002 mm fine focusing interval for highly accurate adjustments.
Is this microscope suitable for professional laboratories?
Yes. It is ideal for biology laboratories, clinical diagnostics, pharmaceutical laboratories, research institutes, universities, and hospitals.
Can institutions purchase this microscope in bulk?
Yes. Micro Technologies supplies this microscope in bulk for educational institutions, laboratories, distributors, OEM partners, and government procurement projects.
Why Choose Our Products
- Premium laboratory-grade optical instruments
- Precision achromatic optics for superior image quality
- Durable construction for continuous laboratory use
- Competitive pricing for institutional procurement
- Reliable technical support and responsive after-sales service
Call to Action
Upgrade your laboratory with advanced microscopy solutions from Micro Technologies. Contact us today for bulk orders, institutional procurement, OEM manufacturing, distributor partnerships, or a customized quotation for our professional microscope range.
